Name: ATMEGA8A-PU
Brand: Microchip Technology
SKU: ATMEGA8A-PU
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Microchip Technology ATMEGA8A-PU

Part No.:: ATMEGA8A-PU

Manufacturer:: Microchip Technology

Package:: 28-DIP (0.300", 7.62mm)

Datasheet:: ATMEGA8A-PU.pdf

Description:: IC MCU 8BIT 8KB FLASH 28DIP

In Stock:: 2722

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ATMEGA8A-PU Specifications

Package/Case:
28-DIP (0.300", 7.62mm)
Packaging:
Tube
Series:
AVR® ATmega
RoHS:
RoHS
Speed:
16MHz
RAM Size:
1K x 8
Core Size:
8-Bit
EEPROM Size:
512 x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Connectivity:
I²C, SPI, UART/USART
Mounting Type:
Through Hole
Number of I/O:
23
Core Processor:
AVR
Data Converters:
A/D 6x10b
Oscillator Type:
Internal
Program Memory Size:
8KB (4K x 16)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

ATMEGA8A-PU this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ATMEGA8A-PU price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ATMEGA8A-PU to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ATMEGA8A-PU information

Views：

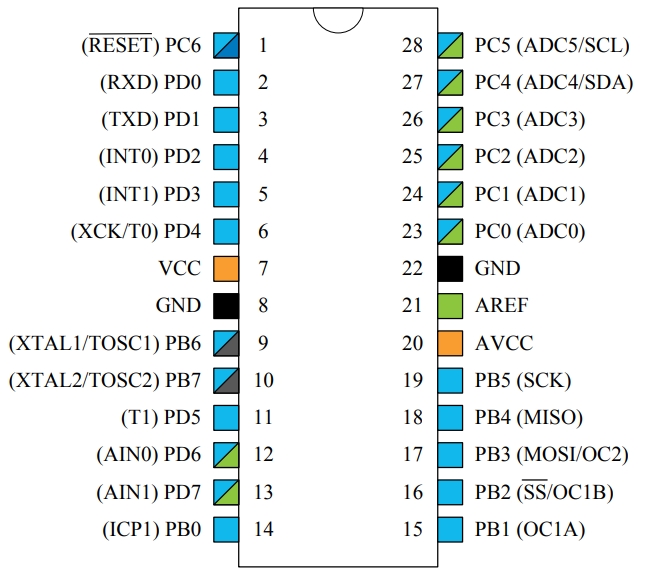

ATMEGA8A-PU Typical application Circuitry

ATMEGA8A-PU

ATMEGA8A-PU is a microcontroller chip from the AVR series produced by Atmel, known for its versatility and efficiency in a range of embedded systems. This chip is well-suited for applications that require a balance between power consumption, processing capabilities, and compact size. Let's examine its features, use cases, essential parameters, and an in-depth circuit design for a particular application.

Functionalities and Application Scenarios

- Embedded System Applications: The ATMEGA8A-PU is typically used in consumer electronics, automotive systems, industrial control, and hobbyist DIY projects.

Key Specifications

- Memory and Processing: With a maximum working frequency of 16MHz, it has 512 Bytes of EEPROM, 1KB of SRAM, and 8KB of flash memory.

- I/O and Communication: The chip includes USART, SPI, and an external memory interface, along with 23 general-purpose I/O lines.

- Analog and Digital Features: Comes with a 10-bit ADC and multiple PWM outputs.

Application Example: Basic Controlled Lighting System

1. Power Supply Connection: VCC and GND

- Stable Power Source: Connect the VCC pin of the ATMEGA8A-PU to a 5V power supply and ground the GND pin.

2. ISP Programming Interface: MOSI, MISO, SCK, RESET

- Firmware Programming: For programming, attach MOSI, MISO, and SCK to the corresponding pins of an ISP programmer. The programmer and the RESET pin need to be connected via a pull-up resistor.

3. Sensor and Output Control: Digital I/O Pins

- Peripheral Integration: Connect a light sensor (e.g., LDR) to PD3 to detect ambient light levels and a relay module to PB1 to control the lighting.

4. Analog Input: ADC Pins

- Additional Sensing: Attach a temperature sensor to ADC1 for monitoring room temperature.

Circuit Design Considerations

- Power Management: Ensure the power supply design is aligned with the ATMEGA8A-PU's low-power requirements.

- Compatibility with Peripherals: Verify that all connected devices are compatible with the microcontroller's voltage and signal specifications.

- Programming Accessibility: Design the circuit to facilitate easy programming and future maintenance.

- Environmental Adaptability: Since it's for a lighting system, ensure the circuit is resilient to fluctuations in lighting and temperature conditions.

Incorporating these design principles, the ATMEGA8A-PU can be effectively employed in a simple automated lighting system, demonstrating its ability to process sensor inputs, control outputs, and manage a home environment, thus showcasing its utility in embedded system applications.
