Microchip Technology ATMEGA168A-AU

Part No.:: ATMEGA168A-AU

Manufacturer:: Microchip Technology

Package:: 32-TQFP

Datasheet:: ATMEGA168A-AU.pdf

Description:: IC MCU 8BIT 16KB FLASH 32TQFP

In Stock:: 3076

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ATMEGA168A-AU Specifications

Package/Case:
32-TQFP
Packaging:
Tray
Series:
AVR® ATmega
RoHS:
RoHS
Speed:
20MHz
RAM Size:
1K x 8
Core Size:
8-Bit
EEPROM Size:
512 x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Connectivity:
I²C, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
23
Core Processor:
AVR
Data Converters:
A/D 8x10b
Oscillator Type:
Internal
Program Memory Size:
16KB (8K x 16)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

ATMEGA168A-AU this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ATMEGA168A-AU price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ATMEGA168A-AU to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ATMEGA168A-AU information

Views：

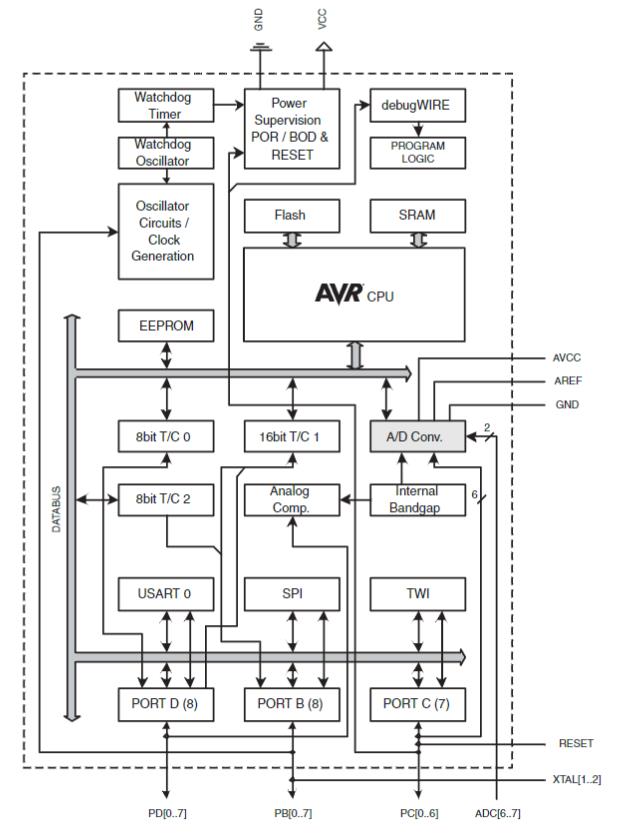

ATMEGA168A-AU Typical application Circuitry Schematics

The Microchip (formerly Armed) ATMEGA168A-AU is an 8-bit, low-power CMOS microcontroller constructed using the AVR enhanced RISC architecture. It provides 16 KB programmable flash memory, 1 KB SRAM, and 512 Bytes EEPROM. Here's a basic description of the circuit:

1. Power Supply Pins (VCC, GND): These pins should be connected to ground and the power supply. Ensure the correct supply voltage by checking the data sheet. Use decoupling capacitors near these pins to filter out power supply noise.

2. Digital I/O Pins (Ports B, C, D): The digital input/output pins through which the ATMEGA168A-AU interacts with other components. It is possible to set each pin's input or output independently.

3. Reset Pin (RESET): This pin resets the microcontroller. Typically, it's connected to a pull-up resistor to prevent unintentional resets. Driving this pin low triggers a reset.

4. Crystal Oscillator Pins (XTAL1, XTAL2): Connect an external crystal oscillator to these pins to provide a clock signal for the microcontroller. The exact frequency of the crystal depends on the specific system requirements.

5. Analog Input Pins (ADC0 - ADC7): These pins serve as inputs for the built-in Analog-to-Digital Converter (ADC). They enable reading of analog signals by the microcontroller.

6. Serial Communication Pins (MISS, MOST, SICK, TX, RX): These pins enable SPI (MISS, MOST, SCK) and PART (TX, RX) serial communication with other devices such as sensors, other microcontrollers, or a PC.

7. In-System Programming (ISP) Pins (MISS, MOST, SICK, RESET): Use these pins to upload code to the microcontroller using an ISP programmer.

8. Interrupt Pins (INT0, INT1): These pins handle external interrupts. A signal known as an interrupt causes the microcontroller's current processes to be briefly suspended so that it can focus on another activity.

Note that the exact configuration and usage of these pins might vary based on your specific application. Always refer to the manufacturer's data sheet and any available application notes or reference designs for accurate information. Consult with an experienced engineer or a specialized online forum if you're uncertain about these connections.
