What is the Additional Feature ?

Name: ATMEGA168-15AD
Brand: Microchip Technology
SKU: ATMEGA168-15AD
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Microchip Technology ATMEGA168-15AD

Part No.:: ATMEGA168-15AD

Manufacturer:: Microchip Technology

Package:: 32-TQFP

Datasheet:: ATMEGA168-15AD.pdf

Description:: IC MCU 8BIT 16KB FLASH 32TQFP

In Stock:: 1170

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ATMEGA168-15AD Specifications

Package/Case:
32-TQFP
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Strip
Series:
Automotive, AEC-Q100, AVR® ATmega
RoHS:
RoHS
Speed:
16MHz
RAM Size:
1K x 8
Core Size:
8-Bit
EEPROM Size:
512 x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Connectivity:
I²C, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
23
Core Processor:
AVR
Data Converters:
A/D 8x10b
Oscillator Type:
Internal
Program Memory Size:
16KB (8K x 16)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 150°C (TA)

ATMEGA168-15AD this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ATMEGA168-15AD price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ATMEGA168-15AD to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ATMEGA168-15AD information

Views：

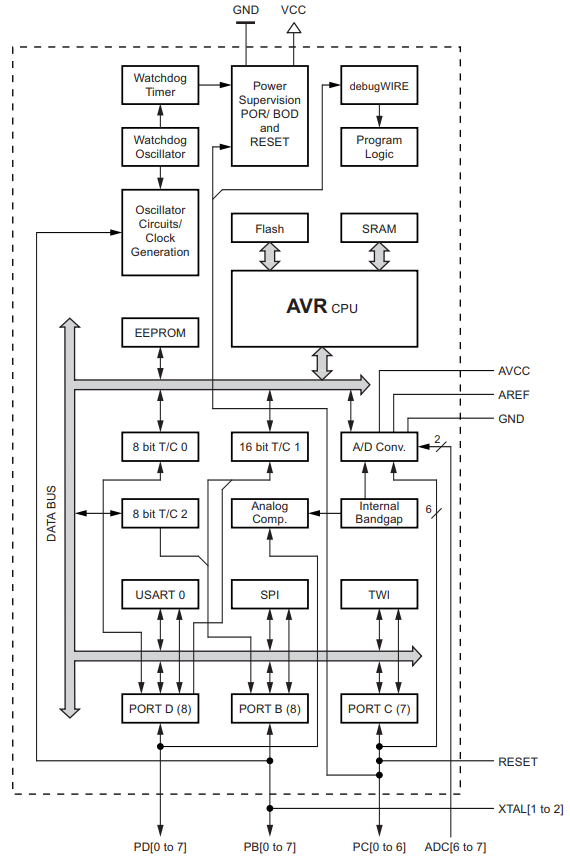

ATMEGA168-15AD Typical application Circuitry

ATMEGA168-15AD

The ATMEGA168-15AD microcontroller is a distinguished member of the AVR lineup, developed by Atmel and now part of Microchip Technology's extensive portfolio. This microcontroller is celebrated for harnessing the AVR RISC architecture, renowned for its operational efficiency and superior power management capabilities. It is adeptly designed for a wide range of embedded system applications. The ATMEGA168-15AD shines with its robust input/output (I/O) options, superior analog-to-digital converters (ADCs), numerous PWM channels, and a full suite of communication protocols including USART, SPI, and I2C. Its comprehensive feature set makes it an ideal choice for sophisticated and demanding projects.

1. Power Connection: To bring the ATMEGA168-15AD to life, it is essential to connect its VCC pin to a +5V power source and the GND pin to the system's ground. For the microcontroller's analog functions to deliver optimal performance, a connection of the AVCC pin to +5V and the AGND pin to ground is necessary. This setup ensures the integrity of analog signal processing.

2. Digital I/O Configuration: The ATMEGA168-15AD is equipped with an array of digital I/O pins distributed across various ports, enabling the interfacing with multiple peripherals. Devices such as LEDs, buttons, or digital sensors can be connected to these pins. Configuring these pins through the microcontroller's firmware allows for dynamic interactions with the external environment.

3. Analog Inputs: The microcontroller is outfitted with ADC pins (ADC0-ADC7), facilitating the conversion of analog signals to digital. By connecting analog sensors to these specified pins, the ATMEGA168-15AD can process inputs from the physical world, transforming analog signals into digital data.

4. Serial Communications: For serial data exchange, the microcontroller offers RXD and TXD pins dedicated to USART communication. Connecting the TXD pin of the ATMEGA168-15AD to the RXD pin of a serial device (and vice versa) enables bidirectional data transmission using serial protocols.

5. Clock Source Connection: Precise timing is achieved by connecting an external crystal oscillator to the XTAL1 and XTAL2 pins of the ATMEGA168-15AD. The addition of capacitors, one from each pin to ground, stabilizes the oscillator's frequency, ensuring accurate timing for the microcontroller's operations.

6. Reset Mechanism: To implement a reset function, a push-button switch is connected to the RESET pin. Pressing this button grounds the pin, triggering a manual reset of the microcontroller. A pull-up resistor on this pin is crucial for preventing accidental resets, thereby maintaining stable operation.

7. Programming the Microcontroller: Programming the ATMEGA168-15AD requires an ISP (In-System Programming) configuration. This involves connecting the MOSI, MISO, SCK, and RESET pins to an ISP programmer, which enables the transfer of code to the microcontroller and facilitates communication.

By adhering to the detailed connection methodology outlined for the ATMEGA168-15AD, developers can fully exploit the capabilities of this microcontroller, enhancing the functionality and reliability of embedded systems. This strategic approach not only leverages the ATMEGA168-15AD's strengths to their maximum but also underscores the microcontroller's versatility in navigating the complexities of advanced electronic designs. Through careful planning and meticulous implementation, the ATMEGA168-15AD stands as a pivotal element in the crafting of sophisticated, efficient, and high-performance embedded applications.
