Name: AT90CAN64-16MU
Brand: Microchip Technology
SKU: AT90CAN64-16MU
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Microchip Technology AT90CAN64-16MU

Part No.:: AT90CAN64-16MU

Manufacturer:: Microchip Technology

Package:: 64-VFQFN Exposed Pad

Datasheet:: AT90CAN64-16MU.pdf

Description:: IC MCU 8BIT 64KB FLASH 64QFN

In Stock:: 2560

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AT90CAN64-16MU Specifications

Package/Case:
64-VFQFN Exposed Pad
Packaging:
Tray
Series:
AVR® 90CAN
RoHS:
RoHS
Speed:
16MHz
RAM Size:
4K x 8
Core Size:
8-Bit
EEPROM Size:
2K x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Connectivity:
CANbus, EBI/EMI, I²C, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
53
Core Processor:
AVR
Data Converters:
A/D 8x10b
Oscillator Type:
Internal
Program Memory Size:
64KB (64K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

AT90CAN64-16MU this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AT90CAN64-16MU price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AT90CAN64-16MU to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AT90CAN64-16MU information

Views：

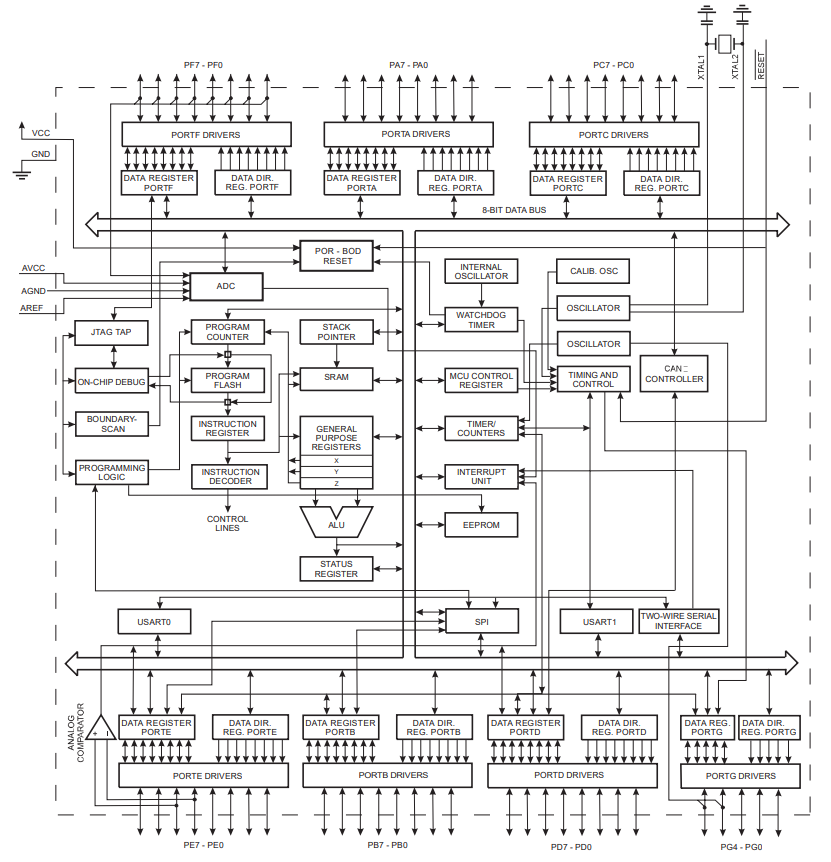

AT90CAN64-16MU Typical application Circuitry

The AT90CAN64-16MU is an 8-bit AVR microcontroller developed by Microchip, primarily used in automotive applications due to its integration with the CAN (Controller Area Network) protocol. The device includes 64KB of programmable flash memory, 4KB of SRAM, 2KB of EEPROM, and a 10-bit ADC with 8 channels. An overview of an application circuit for the AT90CAN64-16MU is given below:

1. Power Supply: The microcontroller can operate within a power supply voltage range of 4.5V to 5.5V. Just like with most digital ICs, it is advisable to place decoupling capacitors close to the power supply pins (AVCC, VCC, and GND) to reduce power supply noise.
2. Oscillator Circuit: The XTAL1 and XTAL2 pins are designed to connect to an external crystal oscillator. To stabilize the oscillator, capacitors are usually connected from the crystal's terminals to the ground. The demands of your application will determine the oscillator's precise frequency.
3. Reset Circuit: To ensure the microcontroller starts in a known state when power is applied, a power-on reset circuit is often utilized. This typically involves a resistor-capacitor (RC) network connected to the RESET pin.
4. I/O Ports: The AT90CAN64-16MU microcontroller provides multiple bidirectional I/O ports. These can be connected to a variety of peripherals depending on the requirements of your particular application. Ensure to follow the I/O port considerations detailed in the datasheet to prevent damaging the device.
5. CAN Interface: Since the microcontroller includes built-in CAN support, you may wish to connect it to a CAN transceiver. The transceiver's CANH and CANL lines would then be connected to your CAN bus.
6. In-System Programming (ISP) Interface: The AT90CAN64-16MU supports in-system programming, which allows you to reprogram its flash memory while it's in its socket. The MOSI, MISO, SCK, and RESET pins are typically connected to the programming tool for this purpose.
This is a condensed form of an application circuit. Your specific design will need to take various factors into account, such as power management and interfacing requirements. Always refer to the AT90CAN64-16MU datasheet and other technical documentation provided by Microchip for accurate and detailed information.
