Adesto Technologies AT45DB161E-SSHD-T

Part No.:: AT45DB161E-SSHD-T

Manufacturer:: Adesto Technologies

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: AT45DB161E-SSHD-T.pdf

Description:: IC FLASH 16MBIT SPI 85MHZ 8SOIC

In Stock:: 3863

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AT45DB161E-SSHD-T Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Not For New Designs
MemoryType:
Non-Volatile
MemoryFormat:
FLASH
Technology:
FLASH
MemorySize:
16Mb (528 Bytes x 4096 pages)
MemoryInterface:
SPI
ClockFrequency:
85 MHz
WriteCycleTime-WordPage:
8µs, 4ms
AccessTime:
-
Voltage-Supply:
2.5V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C (TC)
MountingType:
Surface Mount

AT45DB161E-SSHD-T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AT45DB161E-SSHD-T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AT45DB161E-SSHD-T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AT45DB161E-SSHD-T information

Views：

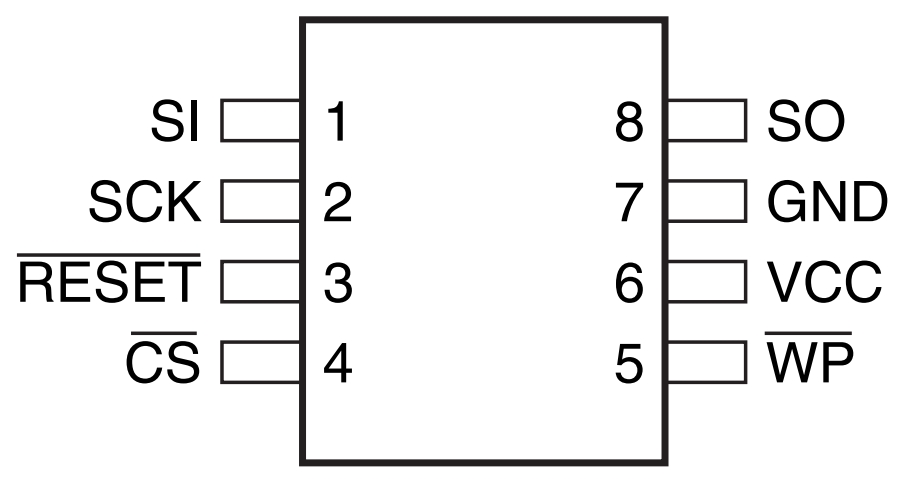

AT45DB161E-SSHD-T Typical application Circuitry

AT45DB161E-SSHD-T

The AT45DB161E-SSHD-T is a Serial Peripheral Interface (SPI) flash memory chip, designed for applications that require high-capacity, fast, and reliable non-volatile data storage. This chip works particularly well in situations where a lot of data needs to be swiftly retrieved and stored.

Application Scenarios

A common use case for the AT45DB161E-SSHD-T is in sophisticated embedded systems, such as advanced IoT devices, where it can store significant amounts of firmware, configuration data, or other critical information.

Parameter Features

- Storage Capacity: Provides approximately 16Mb of storage, suitable for extensive data storage needs.

- Interface: Equipped with an SPI interface for efficient data communication.

- Operating Voltage: Generally operates within a voltage range of 2.7V to 3.6V.

- Temperature Tolerance: Designed to work effectively in a wide range of temperatures, typically from -40°C to +85°C.

Circuit Connection - Application in Advanced IoT Devices

1. Power Supply Configuration:

- VCC Pin: Connect the VCC pin of AT45DB161E-SSHD-T to a reliable 3.3V power supply.

- Ground Connection: The system's ground must be connected to the GND pin.

2. SPI Communication Setup:

- Data Transmission Lines: Attach the MOSI (Master Out Slave In) and MISO (Master In Slave Out) pins to the corresponding SPI pins on the microcontroller.

- Clock Signal: The SCK (Serial Clock) pin should be connected to the SPI clock line of the microcontroller.

3. Control Signals:

- Chip Select (CS): Essential for initiating communication, this pin should be tied to a designated GPIO pin on the microcontroller.

4. Programming and Additional Control Pins:

- Reset Pin: Utilized for chip initialization, connect this pin to a GPIO on the microcontroller.

- Write Protection (WP): Link to a GPIO for controlling write operations to ensure data security.

Design Considerations

- Stable Power Source: A consistent 3.3V power supply is essential for the optimal operation of AT45DB161E-SSHD-T.

- Minimizing Interference on SPI Lines: Implement noise reduction strategies, such as using shielded cables or integrating filtering capacitors.

- Heat Dissipation: Adequate cooling is crucial, particularly in high-load operational scenarios.

Incorporating the AT45DB161E-SSHD-T into circuit designs necessitates careful attention to these factors to ensure effective and reliable data storage and management capabilities.
