Name: AT45DB161E-SHD-T
Brand: Adesto Technologies
SKU: AT45DB161E-SHD-T
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Adesto Technologies AT45DB161E-SHD-T

Part No.:: AT45DB161E-SHD-T

Manufacturer:: Adesto Technologies

Package:: 8-SOIC (0.209, 5.30mm Width)

Datasheet:: AT45DB161E-SHD-T.pdf

Description:: IC FLASH 16MBIT SPI 85MHZ 8SOIC

In Stock:: 3585

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AT45DB161E-SHD-T Specifications

Package/Case:
8-SOIC (0.209, 5.30mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Not For New Designs
MemoryType:
Non-Volatile
MemoryFormat:
FLASH
Technology:
FLASH
MemorySize:
16Mb (528 Bytes x 4096 pages)
MemoryInterface:
SPI
ClockFrequency:
85 MHz
WriteCycleTime-WordPage:
8µs, 4ms
AccessTime:
-
Voltage-Supply:
2.5V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C (TC)
MountingType:
Surface Mount

AT45DB161E-SHD-T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AT45DB161E-SHD-T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AT45DB161E-SHD-T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AT45DB161E-SHD-T information

Views：

AT45DB161E-SHD-T Typical application Circuitry

AT45DB161E-SHD-T

The AT45DB161E-SHD-T is a high-capacity Serial Peripheral Interface (SPI) flash memory chip, designed for use in a variety of applications where large-scale, reliable, and fast data storage is required. This chip is particularly well-suited for applications that demand quick data access and integrity.

Application Scenarios

One notable application of the AT45DB161E-SHD-T is in advanced digital devices like high-end embedded systems, where it can store substantial amounts of firmware, boot code, or configuration data.

Parameter Features

- Storage Capacity: Offers about 16Mb, which is substantial for extensive data storage.

- Interface: Utilizes an SPI interface, ensuring efficient data transfer.

- Operating Voltage: Typically requires a power supply within the range of 2.7V to 3.6V.

- Temperature Range: Capable of functioning effectively across a broad temperature spectrum, often from -40°C to +85°C.

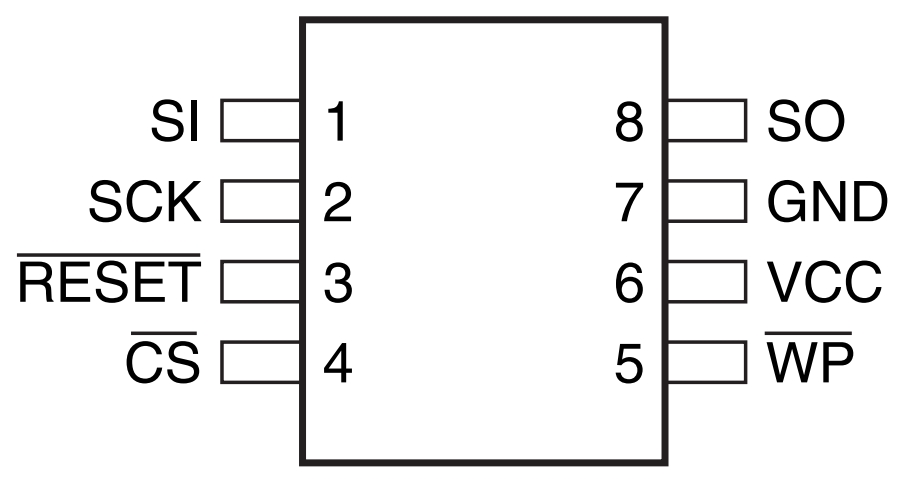

Circuit Connection - Use in Embedded Systems

1. Power Supply Arrangement:

- VCC Pin: Connect the VCC pin of AT45DB161E-SHD-T to a stable 3.3V power source.

- Ground Link: The GND pin should be connected to the system's ground.

2. SPI Communication Configuration:

- Data Exchange Lines: Link the MOSI (Master Out Slave In) and MISO (Master In Slave Out) pins of the chip to the corresponding SPI pins on the microcontroller.

- Clock Connection: The SCK (Serial Clock) pin must be attached to the SPI clock line of the microcontroller.

3. Control Signal Integration:

- Chip Select (CS): Essential for starting communication, this pin should be connected to a specific GPIO pin on the microcontroller.

4. Programming and Control Pins:

- Reset Pin: Utilized for initializing the chip, it should be connected to a GPIO pin on the microcontroller.

- Write Protection (WP): Attach this pin to a GPIO to control write operations, thus safeguarding data integrity.

Design Considerations

- Stable Power Source: Ensuring a consistent 3.3V power supply is critical for the proper functioning of AT45DB161E-SHD-T.

- SPI Line Noise Reduction: Implement strategies to minimize interference, such as high-quality cabling or filtering capacitors.

- Heat Management: Proper cooling or heat dissipation is crucial, especially for applications involving continuous high-load operations.

Designing circuits with the AT45DB161E-SHD-T involves careful planning around these considerations to ensure efficient and reliable performance in data storage and management.
