Adesto Technologies AT45DB041E-SHN-T

Part No.:: AT45DB041E-SHN-T

Manufacturer:: Adesto Technologies

Package:: 8-SOIC (0.209, 5.30mm Width)

Datasheet:: AT45DB041E-SHN-T.pdf

Description:: IC FLASH 4MBIT SPI 85MHZ 8SOIC

In Stock:: 2486

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AT45DB041E-SHN-T Specifications

Package/Case:
8-SOIC (0.209, 5.30mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
MemoryType:
Non-Volatile
MemoryFormat:
FLASH
Technology:
FLASH
MemorySize:
4Mb (264 Bytes x 2048 pages)
MemoryInterface:
SPI
ClockFrequency:
85 MHz
WriteCycleTime-WordPage:
8µs, 3ms
AccessTime:
-
Voltage-Supply:
1.65V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C (TC)
MountingType:
Surface Mount

AT45DB041E-SHN-T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AT45DB041E-SHN-T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AT45DB041E-SHN-T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AT45DB041E-SHN-T information

Views：

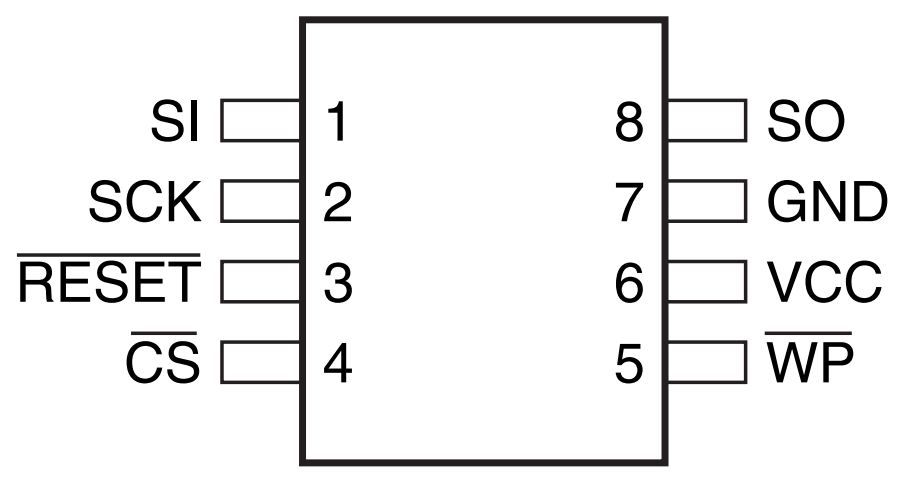

AT45DB041E-SHN-T Typical application Circuitry

AT45DB041E-SHN-T

The AT45DB041E-SHN-T is a Serial Peripheral Interface (SPI) flash memory chip, designed for high-speed and reliable data storage in a range of electronic applications. It is particularly suitable for environments where data integrity and quick access to data are critical.

Application Scenarios

A typical application of the AT45DB041E-SHN-T is in embedded systems, where it serves as a storage medium for firmware, boot code, or configuration data.

Parameter Features

- Storage Capacity: Offers around 4Mb, providing sufficient space for various data storage needs.

- Interface: Employs an SPI interface for efficient data communication.

- Operating Voltage: Typically functions at a supply voltage in the range of 2.7V to 3.6V.

- Temperature Range: Capable of operating in a wide temperature range, often from -40°C to +85°C.

Circuit Connection- Integration with an Embedded System

1. Power Supply Configuration:

- VCC Pin: The VCC pin of the AT45DB041E-SHN-T should be connected to a power source, ideally at 3.3V.

- Grounding: Ensure that the GND pin is properly connected to the system ground.

2. SPI Communication Setup:

- Data Transmission Lines: Connect the MOSI (Master Out Slave In) and MISO (Master In Slave Out) pins of the chip to the corresponding SPI pins on the microcontroller.

- Clock Line Connection: The SCK (Serial Clock) pin needs to be connected to the SPI clock line of the microcontroller.

3. Control Signals Integration:

- Chip Select (CS): This crucial pin for initiating communication should be connected to a designated GPIO pin on the microcontroller.

4. Programming and Additional Control Pins:

- Reset Pin: For initializing the chip, this pin should be tied to a GPIO pin on the microcontroller.

- Write Protection (WP): Link this pin to a GPIO for managing write operations and ensuring data security.

Design Considerations

- Consistent Power Supply: A stable power supply, preferably at 3.3V, is vital for the AT45DB041E-SHN-T to function correctly.

- Reducing Interference: Implement measures to minimize noise on the SPI communication lines, such as using quality cables or adding filtering capacitors.

- Thermal Management: Proper cooling or heat dissipation strategies are important, especially for applications involving continuous high-load operations.

Incorporating AT45DB041E-SHN-T into circuit designs requires careful consideration of these aspects to ensure efficient and reliable performance in data storage and retrieval tasks.
