Microchip Technology AT28C256-15PU

Part No.:: AT28C256-15PU

Manufacturer:: Microchip Technology

Package:: 28-DIP (0.600, 15.24mm)

Datasheet:: AT28C256-15PU.pdf

Description:: IC EEPROM 256KBIT PARALLEL 28DIP

In Stock:: 3582

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AT28C256-15PU Specifications

Package/Case:
28-DIP (0.600, 15.24mm)
Packaging:
Tube
Series:
-
ProductStatus:
Active
MemoryType:
Non-Volatile
MemoryFormat:
EEPROM
Technology:
EEPROM
MemorySize:
256Kb (32K x 8)
MemoryInterface:
Parallel
ClockFrequency:
-
WriteCycleTime-WordPage:
10ms
AccessTime:
150 ns
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C (TC)
MountingType:
Through Hole

AT28C256-15PU this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AT28C256-15PU price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AT28C256-15PU to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AT28C256-15PU information

Views：

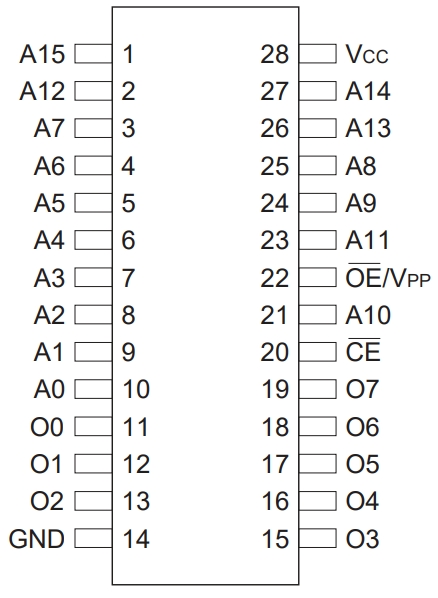

AT28C256-15PU Typical application Circuitry

AT28C256-15PU

The AT28C256-15PU is an EEPROM (Electrically Erasable Programmable Read-Only Memory) chip, recognized for its ease of use in data storage applications.

Application Scenarios

This EEPROM is commonly used in scenarios where a moderate amount of non-volatile data storage is required, with the ability to frequently update the stored data. Typical applications include firmware storage in consumer electronics, device configuration settings in industrial systems, data storage in automotive applications, and user preferences in various embedded systems.

Parameter Features

- Storage Capacity: The AT28C256-15PU offers 256 Kbits of storage space.

- Parallel Interface: It features a parallel interface for data input and output, enabling quick data access and ease of integration with microcontrollers and processors.

- Access Time: This EEPROM has an access time of 150 ns, providing quick data retrieval.

- Operating Voltage Range: Designed to operate within a 5V power supply range.

Specific Application Scenario: Configuration Data Storage in a Microcontroller-Based System

In a microcontroller-based system, such as a custom-built embedded system, the AT28C256-15PU can be used to store configuration data and operational parameters. Here's a detailed wiring guide:

1. Power Supply Connection: Connect the VCC pin of the AT28C256-15PU to a stable 5V power source, and the GND pin to the system's ground.

2. Data Pins Connection: Link the D0 to D7 (Data Input/Output) pins to the data bus of the microcontroller.

3. Address Pins Connection: Connect the A0 to A14 (Address Input) pins to the address bus of the microcontroller to select the desired memory location for reading or writing data.

4. Control Pins:

- The OE (Output Enable) pin should be connected to an output control line of the microcontroller to enable data reading from the EEPROM.

- The CE (Chip Enable) pin is used to activate the memory chip and should be connected to another control line of the microcontroller.

- The WE (Write Enable) pin controls data writing to the EEPROM and must be correctly interfaced with the microcontroller to allow data storage.

Circuit Design Considerations

- Voltage Compatibility: Ensure that the power supply voltage is consistent with the 5V requirement of the AT28C256-15PU.

- Data and Address Bus Configuration: Properly configure the data and address buses for accurate communication with the microcontroller.

- Write Protection: Implement appropriate measures to prevent unintentional writing to the EEPROM, especially during power transitions.

- Signal Integrity: Ensure clean and stable connections, especially for the control lines, to avoid data corruption.

In summary, the AT28C256-15PU is ideal in microcontroller-based systems for storing configuration data and operational parameters. Careful attention to voltage compatibility, bus configuration, write protection, and signal integrity is key to effectively integrating this EEPROM into such systems.
