Microchip Technology AT24C64D-SSHM-B

Part No.:: AT24C64D-SSHM-B

Manufacturer:: Microchip Technology

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: AT24C64D-SSHM-B.pdf

Description:: IC EEPROM 64KBIT I2C 1MHZ 8SOIC

In Stock:: 2611

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AT24C64D-SSHM-B Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
MemoryType:
Non-Volatile
MemoryFormat:
EEPROM
Technology:
EEPROM
MemorySize:
64Kb (8K x 8)
MemoryInterface:
I²C
ClockFrequency:
1 MHz
WriteCycleTime-WordPage:
5ms
AccessTime:
550 ns
Voltage-Supply:
1.7V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

AT24C64D-SSHM-B this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AT24C64D-SSHM-B price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AT24C64D-SSHM-B to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AT24C64D-SSHM-B information

Views：

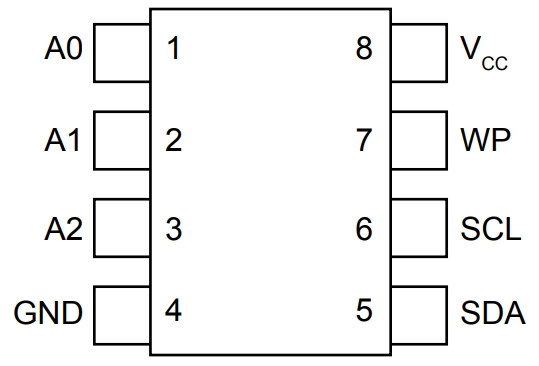

AT24C64D-SSHM-B Typical application Circuitry

AT24C64D-SSHM-B

A 64-Kbit EEPROM (Electrically Erasable Programmable Read-Only Memory) from the Atmel (now a part of Microchip Technology) family, the AT24C64D-SSHM-B is intended for the storage of data that needs to be retained in the event of a power outage. This component is widely utilized across a diverse range of applications due to its ability to retain data without power, low power consumption, and I²C interface, making it perfect for device configuration, calibration data storage, and user preferences in consumer electronics, industrial equipment, medical devices, and automotive applications.

Application Scenarios and Parameter Features

The AT24C64D-SSHM-B features a 64-Kbit (8,192 x 8) memory size, I²C (Two-Wire) interface, a wide voltage range (1.7V to 5.5V), and a write cycle time of 5 ms (maximum). Its I²C interface facilitates easy integration into most microcontroller-based systems, allowing for efficient data storage and retrieval with minimal pin usage.

A specific application scenario is its use in a digital thermostat for storing calibration data and user settings, ensuring these settings are not lost when the device is powered down or reset.

Specific Circuit Connection

In this application scenario, the following provides detailed circuit connections and considerations for integrating the AT24C64D-SSHM-B:

1. Power Supply Connection: Within its functioning range, the AT24C64D-SSHM-B needs to be linked to a reliable power supply. Connect the Vcc pin of the AT24C64D-SSHM-B to a 3.3V supply, ensuring the GND pin is tied to the system ground for a common reference point.

2. I²C Interface Connection: Attach the AT24C64D-SSHM-B's SDA (Serial Data) and SCL (Serial Clock) pins to the matching SDA and SCL pins on the microcontroller in order to communicate via the I²C bus. To guarantee correct I²C bus operation, pull-up resistors (usually 4.7kΩ to 10kΩ) must be installed on both the SDA and SCL lines.

3. Write Protect (WP) Feature: To utilize the write protect feature, which prevents accidental data overwriting, the WP pin of the AT24C64D-SSHM-B can be connected to a GPIO pin on the microcontroller.You can enable or disable write protection by adjusting the state of this pin.

4. Address Pins (A0, A1, A2): The address pins determine the device's address on the I²C bus. For a single AT24C64D-SSHM-B on the bus, these can be connected to ground (GND) to set the lowest possible address. If multiple EEPROMs are used, these pins can be set differently to assign unique addresses to each device.

Design Considerations

When designing the circuit, several factors should be considered:

- Power Supply Stability: Ensure the power supply is stable and within the specified voltage range to prevent data corruption.

- I²C Bus Integrity: Implement proper I²C bus design, including the use of pull-up resistors and ensuring the bus is not overloaded with too many devices, which could degrade signal integrity.

- Data Integrity Checks: Implement software mechanisms to verify data integrity, such as checksums or CRC, especially for critical data storage.

- Device Addressing: Plan the I²C addresses carefully, especially when multiple I²C devices are present, to avoid address conflicts.

By addressing these considerations and following the detailed guidance on circuit connections, integrating the AT24C64D-SSHM-B into a digital thermostat or any similar application can be achieved effectively, ensuring reliable and persistent storage of critical data.
