Microchip Technology AT24C02C-XHM-T

Part No.:: AT24C02C-XHM-T

Manufacturer:: Microchip Technology

Package:: 8-TSSOP (0.173, 4.40mm Width)

Datasheet:: AT24C02C-XHM-T.pdf

Description:: IC EEPROM 2KBIT I2C 1MHZ 8TSSOP

In Stock:: 2831

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AT24C02C-XHM-T Specifications

Package/Case:
8-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
MemoryType:
Non-Volatile
MemoryFormat:
EEPROM
Technology:
EEPROM
MemorySize:
2Kb (256 x 8)
MemoryInterface:
I²C
ClockFrequency:
1 MHz
WriteCycleTime-WordPage:
5ms
AccessTime:
550 ns
Voltage-Supply:
1.7V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

AT24C02C-XHM-T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AT24C02C-XHM-T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AT24C02C-XHM-T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AT24C02C-XHM-T information

Views：

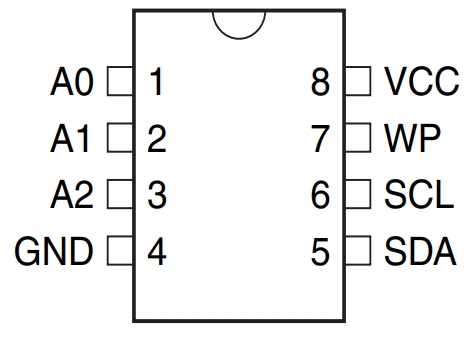

AT24C02C-XHM-T Typical application Circuitry

AT24C02C-XHM-T

The AT24C02C-XHM-T is an EEPROM (Electrically Erasable Programmable Read-Only Memory) chip, primarily used for storing small amounts of data in electronic devices.

Application Scenarios

This EEPROM is ideal for applications where data needs to be stored permanently, and not lost when the device is powered off. Common uses include storing configuration settings in various electronic devices, user preferences in consumer electronics, device identification in automotive systems, and calibration data in sensors and industrial control systems.

Parameter Features

- Storage Capacity: The AT24C02C-XHM-T provides 2 Kbits of storage space.

- I²C Interface:Because of its I²C (Inter-Integrated Circuit) serial interface, a variety of microcontrollers and CPUs can be used with it.

- Operating Voltage Range: This EEPROM typically operates within a voltage range from 1.7V to 5.5V, accommodating various electronic environments.

Specific Application Scenario: User Settings Storage in a Digital Camera

In a digital camera, the AT24C02C-XHM-T can be used to store user-defined settings such as custom shooting modes, display preferences, and saved configurations. Here's a detailed wiring guide:

1. Power Supply Connection: Connect the VCC pin of the AT24C02C-XHM-T to a stable power source within the 1.7V to 5.5V range, and the GND pin to the system's ground.

2. I²C Communication Setup: Link the SDA (Serial Data) and SCL (Serial Clock) pins to the I²C bus of the camera's main control unit, like a microcontroller.

3. Address Pin Configuration: Configure the A0, A1, and A2 pins for the specific I²C address. Depending on the intended address, these pins can be linked to either VCC or GND.

Circuit Design Considerations

- Voltage Range Compliance: Ensure the power supply to the AT24C02C-XHM-T falls within the specified operational voltage range.

- I²C Bus Integration: Pull-up resistors on the SDA and SCL channels should be configured correctly for robust I²C connection.

- Data Protection: Implement measures to safeguard the EEPROM data from potential corruption during power surges or electrical disturbances.

In summary, the AT24C02C-XHM-T is a vital component in devices like digital cameras, where it is important to store user settings and preferences. Attention to voltage range, I²C bus configuration, and data protection measures is key for effectively integrating this EEPROM chip into electronic systems.
