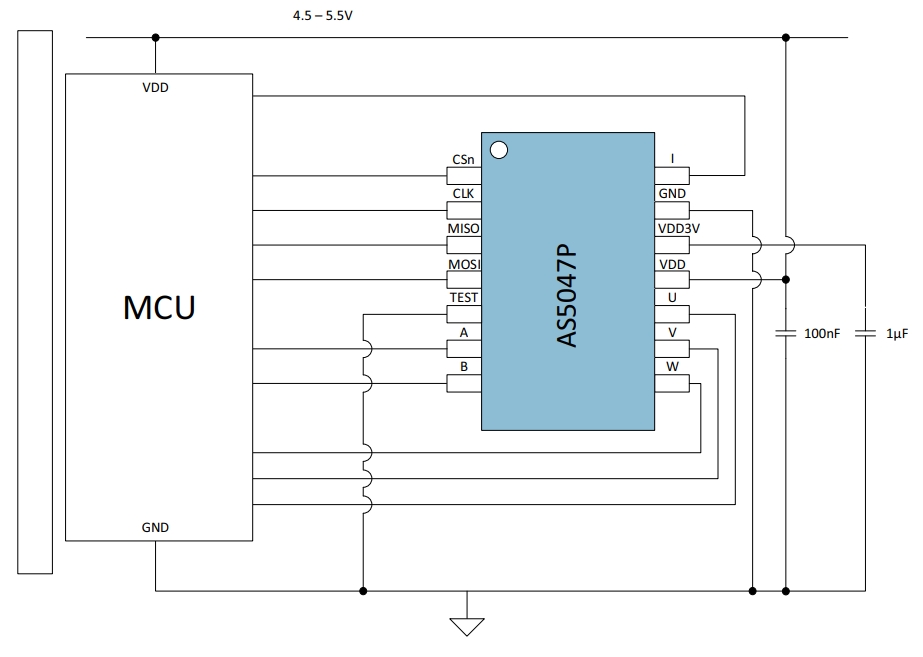

AS5047P-ATSM Typical application Circuitry

AS5047P-ATSM

The AS5047P-ATSM is a high-performance magnetic rotary position sensor chip. This chip has many applications and parameter features, which I will detail below.

Application Scenarios

The AS5047P-ATSM chip is widely used in motor control, robotics, position sensing, and other fields. It provides precise angle measurements, making it particularly suitable for applications requiring high-precision position feedback.

Parameter Features

- High Resolution: The AS5047P-ATSM offers 14-bit angle resolution.

- Stability: It has strong anti-interference capabilities, maintaining accurate measurements in various environments.

- Interface Diversity: Supports SPI and PWM outputs, facilitating integration with different systems.

Specific Application Scenario: Motor Position Control

In motor position control applications, the AS5047P-ATSM can be used to measure the precise position of a motor shaft. Here is the specific wiring method:

1. Power Supply Wiring: Connect the VDD pin of the AS5047P-ATSM to a 3.3V power supply, and the GND pin to the ground.

2. Output Wiring: If using SPI communication, connect the SCK, MOSI, MISO, and CS pins to the corresponding SPI interface of the microcontroller.

3. Magnetic Field Source: Install a magnet on the motor shaft, ensuring it aligns with the magnetic sensing area of the AS5047P-ATSM.

Considerations in Circuit Design

- Magnetic Interference: Ensure there are no strong magnetic fields interfering with the surroundings.

- Power Supply Stability: The power supply must be stable to ensure the accurate operation of the AS5047P-ATSM.

- Relative Position of Magnet and Sensor: The relative position of the magnet and sensor greatly affects measurement accuracy and needs precise adjustment.

In summary, the AS5047P-ATSM is a powerful and versatile sensor chip that provides precise angle measurements in a variety of situations. When designing circuits, various factors must be carefully considered to ensure the reliability and accuracy of the system.

AS5047P-ATSM information

AS5047P-ATSM Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
EncoderType:
Magnetic
OutputType:
PWM
PulsesperRevolution:
Programmable
Voltage-Supply:
3V ~ 3.6V, 4.5V ~ 5.5V
ActuatorType:
External Magnet, Not Included
Detent:
No
BuiltinSwitch:
No
MountingType:
Surface Mount
Orientation:
-
TerminationStyle:
SMD (SMT) Tab

AS5047P-ATSM FAQ
