Name: AM26LS32ACDR
Brand: Texas Instruments
SKU: AM26LS32ACDR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments AM26LS32ACDR

Part No.:: AM26LS32ACDR

Manufacturer:: Texas Instruments

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: AM26LS32ACDR.pdf

Description:: IC RECEIVER 0/4 16SOIC

In Stock:: 12428

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AM26LS32ACDR Specifications

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Receiver
Protocol:
RS422, RS423
NumberofDrivers/Receivers:
0/4
Duplex:
-
ReceiverHysteresis:
50 mV
DataRate:
-
Voltage-Supply:
4.75V ~ 5.25V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

AM26LS32ACDR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AM26LS32ACDR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AM26LS32ACDR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AM26LS32ACDR information

Views：

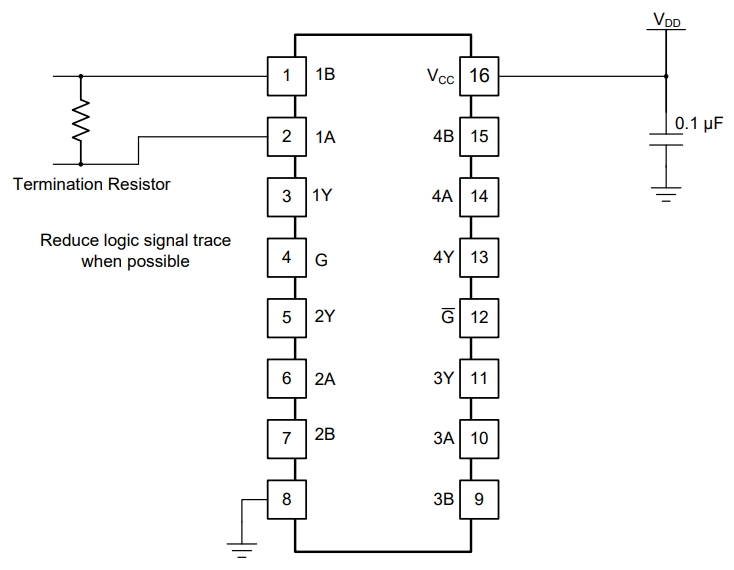

AM26LS32ACDR Typical application Circuitry

AM26LS32ACDR

Designed to decipher differential signals received via balanced lines, including twisted pair cables, the AM26LS32ACDR is a quadruple differential line receiver. It is primarily used in systems where high-speed and reliable data transmission is essential, particularly in environments with substantial electrical noise. This overview will cover its functionalities, application scenarios, parameter features, and a detailed circuit connection method for a specific use case.

Core Functionality: The AM26LS32ACDR is used for converting differential input signals, typically from RS-422 or RS-485 protocols, into standard digital logic levels, making it suitable for interfacing with TTL or CMOS logic.

Application Scenarios: It's widely used in industrial control systems, networking equipment, and data communication systems. An example application is in RS-422 communication interfaces for receiving data over long distances in noisy environments.

Characteristic Features: The AM26LS32ACDR features include the ability to handle high-speed data transmission, low power consumption, and robustness against electrical noise. It contains four independent line receivers in one package.

Circuit Connection Method - In RS-422 Communication Interfaces:

1. Power Supply Connection: Connect the VCC pin of AM26LS32ACDR to a 5V power source, ensuring stable operation of the line receiver.

2. Grounding for Stability: Increase signal integrity and reduce noise by connecting the GND pin to the system ground.

3. Differential Input Configuration: Attach the differential input pairs (A1, B1, A2, B2, A3, B3, A4, B4) to the twisted pair cables carrying the RS-422 signals.

4. Output Signal Setup: Connect the output pins (Y1, Y2, Y3, Y4) to TTL/CMOS compatible inputs of the subsequent digital circuitry, such as microcontrollers or digital interfaces.

5. Impedance Matching: If necessary, include termination resistors at the inputs to match the characteristic impedance of the transmission lines and minimize reflections.

Design Considerations:

- Stable Power Supply: A clean and stable power supply is crucial for the AM26LS32ACDR to function correctly and prevent signal distortion.

- Signal Integrity: Proper layout and routing are required to maintain signal integrity, especially for differential signals at high data rates.

- Thermal Management: Consider thermal management, as the AM26LS32ACDR, while typically low power, may require heat dissipation in dense PCB layouts.

- EMI/EMC Compliance: The circuit design should adhere to EMI/EMC standards, especially important in industrial environments to ensure reliable communication.

In summary, the AM26LS32ACDR is an effective differential line receiver, particularly suited for RS-422 communication interfaces, where its ability to accurately interpret signals in noisy environments is highly valuable.

AM26LS32ACDR FAQ

1. How to order AM26LS32ACDR on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that AM26LS32ACDR is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the AM26LS32ACDR. All suppliers must pass our qualification reviews before they can publish their products including AM26LS32ACDR on icwhale.com; we pay more attention to the channels and quality of AM26LS32ACDR products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the AM26LS32ACDR price and inventory displayed accurate?

The price and inventory of AM26LS32ACDR fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of AM26LS32ACDR?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the AM26LS32ACDR we delivered, we will accept the replacement or return of the AM26LS32ACDR only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of AM26LS32ACDR.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
