Texas Instruments AM26C32IDR

Part No.:: AM26C32IDR

Manufacturer:: Texas Instruments

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: AM26C32IDR.pdf

Description:: IC RECEIVER 0/4 16SOIC

In Stock:: 846

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AM26C32IDR Specifications

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Receiver
Protocol:
RS422, RS423
NumberofDrivers/Receivers:
0/4
Duplex:
-
ReceiverHysteresis:
60 mV
DataRate:
-
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AM26C32IDR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AM26C32IDR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AM26C32IDR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AM26C32IDR information

Views：

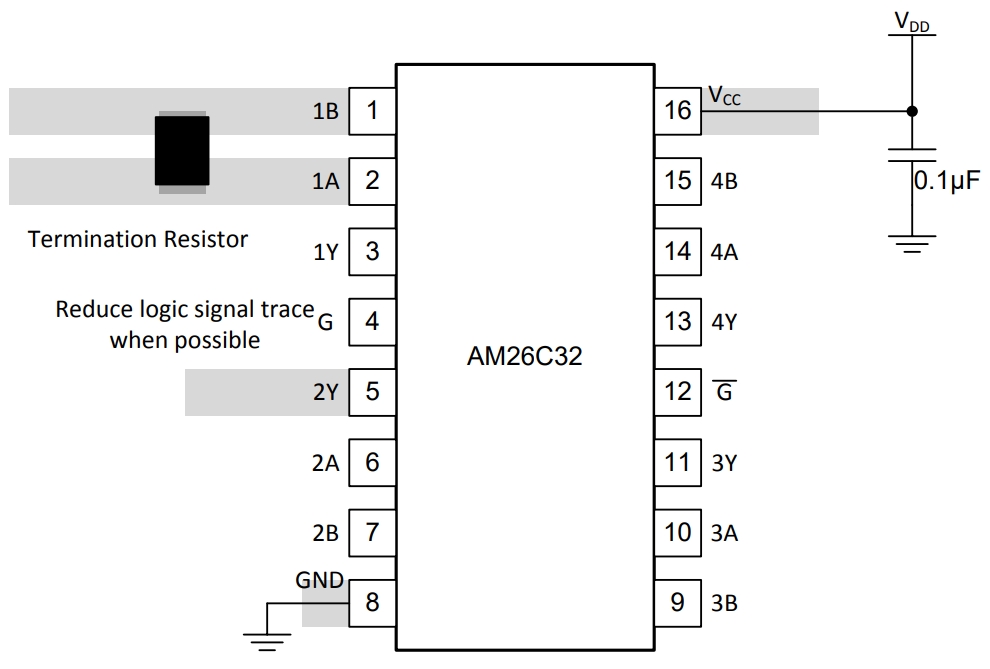

AM26C32IDR Typical application Circuitry

AM26C32IDR

The AM26C32IDR is a quadruple differential line receiver designed to interpret differential signals received over twisted pair cables. It's primarily used in communication systems that require high-speed, reliable data transmission, particularly in environments with significant electrical noise. Its characteristics, application scenarios, parameter features, and a particular circuit connection technique will all be covered in detail in this overview.

Primary Functionality: The AM26C32IDR converts differential input signals, typically from RS-422, RS-423, or RS-485 protocols, into TTL/CMOS output levels.

Application Scenarios: It's commonly used in industrial control systems, networking equipment, and data communication systems, especially in RS-422 and RS-485 communication interfaces for data reception.

Characteristic Features: The AM26C32IDR features include the ability to receive differential signals, low power consumption, and the capacity to operate over a wide range of data rates. It contains four independent line receivers in one package.

Circuit Connection Method - In RS-422 Communication Interfaces:

1. Power Supply Connection: Connect the VCC pin of AM26C32IDR to a 5V power source for stable operation of the line receiver.

2. Grounding for Stability: To reduce noise and guarantee signal integrity, connect the GND pin to the system ground.

3. Differential Input Integration: Connect the differential input pairs (A1, B1, A2, B2, A3, B3, A4, B4) to the twisted pair cables carrying the RS-422 signals.

4. Output Signal Setup: Link the output pins (Y1, Y2, Y3, Y4) to the TTL/CMOS compatible inputs of the subsequent digital circuitry, such as microcontrollers or digital interfaces.

5. Impedance Matching: If necessary, include termination resistors at the input lines to match the characteristic impedance of the transmission lines and minimize reflections.

Design Considerations:

- Power Supply Reliability: Ensure a clean and stable power supply for the AM26C32IDR to maintain reliable operation and prevent signal distortion.

- Signal Integrity Considerations: Careful PCB layout and routing are required to preserve signal integrity, especially for differential signals at high data rates.

- Thermal Management: While the AM26C32IDR typically operates with low power dissipation, consider thermal management in densely populated PCBs.

- EMI/EMC Compliance: Circuit design should adhere to EMI/EMC standards, critical in industrial environments to ensure robust and uninterrupted communication.

In conclusion, the AM26C32IDR is an effective differential line receiver, ideal for applications such as RS-422 communication interfaces, where its ability to accurately interpret signals in noisy environments is highly advantageous.
