Analog Devices Inc. ADM483EARZ-REEL

Part No.:: ADM483EARZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: ADM483EARZ-REEL.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SOIC

In Stock:: 11820

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADM483EARZ-REEL Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
RS422, RS485
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
70 mV
DataRate:
250kbps
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

ADM483EARZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADM483EARZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADM483EARZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADM483EARZ-REEL information

Views：

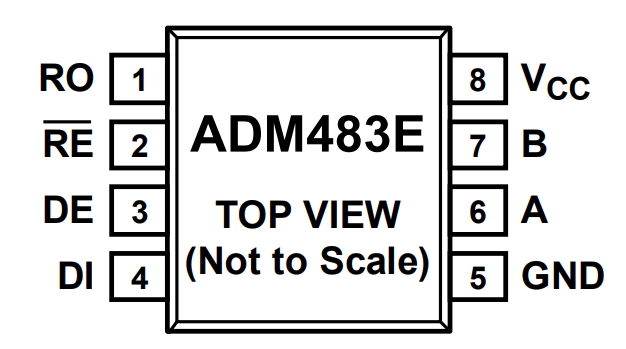

ADM483EARZ-REEL Typical application Circuitry

ADM483EARZ-REEL

The ADM483EARZ-REEL is a specialized integrated circuit designed for serial communication. This particular model is part of the RS-485/RS-422 transceiver family, commonly used in various communication and control systems. Let's delve into its functionality, applications, parameter features, a detailed circuit connection example, and design considerations.

1. Functionality: The ADM483EARZ-REEL chip serves as a transceiver for RS-485 and RS-422 communication protocols. These protocols are ideal for balanced data transmission, which is essential in environments where data integrity and noise immunity are priorities.

2. Application Scenarios: This chip is widely used in industrial networks, building automation, and other systems requiring robust and reliable communication over long distances. It's particularly suitable for distributed control systems where multiple nodes need to communicate effectively.

3. Parameter Features: The ADM483EARZ-REEL is known for its low power operation, high-speed data transfer capabilities (typically up to several Mbps), and strong ESD protection. It also features a wide common-mode voltage range, making it suitable for electrically noisy environments.

4. Circuit Connection Example (Industrial Network Communication):

- Power Supply: Connect the VCC pin of the ADM483EARZ-REEL to a +5V DC power source. Stable power is crucial for reliable operation.

- Ground Connection: The GND pin should be connected to the system's ground. Effective grounding is key to reducing noise and ensuring accurate data transmission.

- Differential Communication Lines: Attach the A and B pins to the RS-485 network's differential communication lines. These lines transmit and receive data.

- Connecting Data Lines: Link the DI (Data Input) pin to your controller's data output, and the RO (Receiver Output) pin to the controller's data input.

- Control Pins: The DE (Driver Enable) and RE (Receiver Enable) pins control the chip's transmitting and receiving modes, respectively. They should be connected to the control outputs of your microcontroller or control logic.

5. Design Considerations:

- Line Impedance: Ensure the transmission line's impedance is matched with the RS-485 network's characteristic impedance to avoid signal reflection.

- Use of Termination Resistors: Termination resistors at both ends of the communication lines are essential for matching the network's characteristic impedance.

- Circuit Isolation: Incorporating isolation (optical or magnetic) can protect the circuit from voltage surges and eliminate potential ground loop issues.

In summary, when designing a circuit with the ADM483EARZ-REEL, attention should be paid to power supply integrity, grounding, impedance matching, and enabling control for effective communication, particularly in applications like industrial networks where reliability and robustness are critical.
