Name: ADM3485ARZ-REEL7
Brand: Analog Devices Inc.
SKU: ADM3485ARZ-REEL7
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. ADM3485ARZ-REEL7

Part No.:: ADM3485ARZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: ADM3485ARZ-REEL7.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SOIC

In Stock:: 2065

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADM3485ARZ-REEL7 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
RS422, RS485
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
50 mV
DataRate:
10Mbps
Voltage-Supply:
3V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

ADM3485ARZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADM3485ARZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADM3485ARZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADM3485ARZ-REEL7 information

Views：

ADM3485ARZ-REEL7 Typical application Circuitry

ADM3485ARZ-REEL7

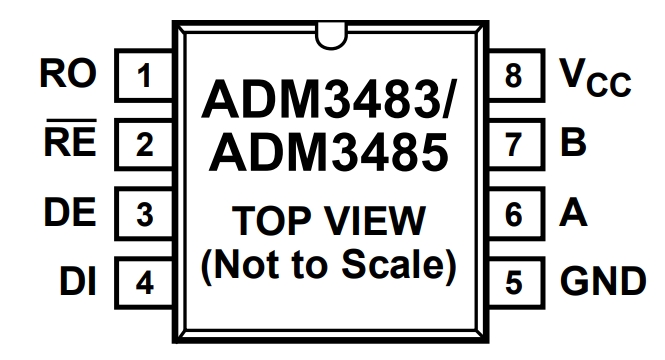

The ADM3485ARZ-REEL7 is an integrated circuit designed for serial communication, specifically tailored for RS-485/RS-422 communication protocols. Here's a detailed look at its functionality, application scenarios, key features, and an example of circuit implementation:

1. Functionality and Key Features of ADM3485ARZ-REEL7:

- RS-485/RS-422 Transceiver: The ADM3485ARZ-REEL7 serves as an RS-485/RS-422 transceiver, ideal for differential data transmission.

- Half-Duplex Communication: It supports half-duplex communication, allowing for bidirectional communication on a single pair of wires.

- High-Speed and Thermal Protection: This chip is capable of high-speed data transmission and includes features like thermal shutdown protection.

2. Application Scenarios:

- Building Automation Systems: The ADM3485ARZ-REEL7 is commonly used in building automation systems for controlling HVAC, lighting, and other systems, where long-distance and reliable data transmission is necessary.

3. Circuit Connection in Building Automation:

- Power Supply Connections:

- VCC to Power Supply: Connect the VCC pin of ADM3485ARZ-REEL7 to a +3.3V or +5V power source.

- Grounding the Circuit: Attach the GND pin to the system ground.

- RS-485/RS-422 Communication Setup:

- Receiver Output (RO) to Controller: Link the RO pin to the receive data line of the system's main controller.

- Driver Input (DI) from Controller: Connect the DI pin to the transmit data line of the controller.

- Receiver Enable (RE) and Driver Enable (DE): Use these pins to control the receiver and driver enable functions, typically connected to general-purpose input/output (GPIO) pins of the controller.

- Differential Bus Configuration:

- A and B Line Connections: Connect the A and B pins to the differential bus lines of the RS-485/RS-422 network in the building automation system.

4. Design Considerations:

- Protocol Compatibility: Ensure that the ADM3485ARZ-REEL7 is compatible with the specific RS-485/RS-422 protocols used in the building automation network.

- Stable Power Supply: A reliable power supply is essential for maintaining uninterrupted communication.

- PCB Layout for Signal Integrity: Design the PCB to minimize noise and enhance signal integrity, which is crucial in environments with potential electromagnetic interference.

When designing circuits with the ADM3485ARZ-REEL7, it's important to consult the manufacturer's datasheet for detailed pinout information and specific guidelines, ensuring that the circuit not only functions correctly but also adheres to the necessary communication standards and safety norms.
