Name: ADG849YKSZ-REEL
Brand: Analog Devices Inc.
SKU: ADG849YKSZ-REEL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. ADG849YKSZ-REEL

Part No.:: ADG849YKSZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 6-TSSOP, SC-88, SOT-363

Datasheet:: ADG849YKSZ-REEL.pdf

Description:: IC SWITCH SPDT SC70-6

In Stock:: 3939

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADG849YKSZ-REEL Specifications

Package/Case:
6-TSSOP, SC-88, SOT-363
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPDT
Multiplexer/DemultiplexerCircuit:
2:1
NumberofCircuits:
1
On-StateResistance(Max):
600mOhm
Channel-to-ChannelMatching(ΔRon):
50mOhm
Voltage-SupplySingle(V+):
1.8V ~ 5.5V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
15ns, 13ns
-3dbBandwidth:
38MHz
ChargeInjection:
50pC
ChannelCapacitance(CS(off)CD(off)):
52pF
Current-Leakage(IS(off))(Max):
10pA (Typ)
Crosstalk:
-64dB @ 100kHz
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

ADG849YKSZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADG849YKSZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADG849YKSZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADG849YKSZ-REEL information

Views：

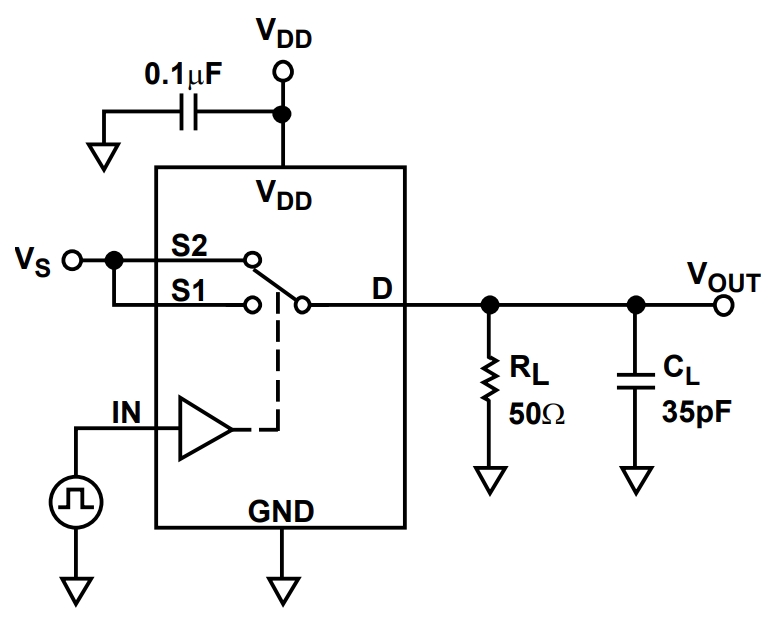

ADG849YKSZ-REEL Typical application Circuitry

ADG849YKSZ-REEL

The ADG849YKSZ-REEL is a CMOS, low voltage, single-pole, double-throw (SPDT) switch. This chip is well-suited for use in a single supply configuration and operates within a range of 1.8 V to 5.5 V.

Application scenarios of ADG849YKSZ-REEL:

The ADG849YKSZ-REEL can be employed in various settings, such as signal routing in audio and video applications, data acquisition systems, and communication devices.

Key parameters of ADG849YKSZ-REEL:

- On resistance: 0.5 ohms typical

- Supply voltage range: 1.8 V to 5.5 V

- Operating temperature range: -40°C to +85°C

- Bandwidth: 250 MHz

Circuit connection for audio signal routing:

Here, we will utilize the ADG849YKSZ-REEL to route audio signals from a single source to two different outputs.

1. Power supply connection:

Connect VDD (pin 6) to a 5 V power supply and GND (pin 3) to the ground.

2. Control signal connection:

Connect IN (pin 1) to the control signal. When IN is high, the switch connects the common port (COM, pin 5) to the normally open port (NO, pin 2). When IN is low, COM is connected to the normally closed port (NC, pin 4).

3. Audio signal connection:

Connect the audio source signal to COM (pin 5), and connect the two outputs to NO (pin 2) and NC (pin 4), respectively.

4. Configuration of the switch:

By toggling the control signal at IN (pin 1), the audio source can be routed to either of the two outputs.

Design considerations:

While designing the circuit, consider the following aspects:

- Verify that the supply voltage remains within the specified range to prevent any possible damage to the chip.

- Ensure that the control signals are connected properly and are functioning as intended.

- Consider the bandwidth requirements of the application to avoid any signal distortion.

- Take into account the on-resistance of the switch, as it can impact the quality of the audio signal.

The ADG849YKSZ-REEL offers a flexible and reliable solution for routing signals in various applications.
