Analog Devices Inc. ADG721BRMZ

Part No.:: ADG721BRMZ

Manufacturer:: Analog Devices Inc.

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: ADG721BRMZ.pdf

Description:: IC SWITCH DUAL SPST 8MSOP

In Stock:: 2770

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADG721BRMZ Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPST - NO
Multiplexer/DemultiplexerCircuit:
1:1
NumberofCircuits:
2
On-StateResistance(Max):
4Ohm
Channel-to-ChannelMatching(ΔRon):
300mOhm
Voltage-SupplySingle(V+):
1.8V ~ 5.5V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
14ns, 6ns (Typ)
-3dbBandwidth:
200MHz
ChargeInjection:
2pC
ChannelCapacitance(CS(off)CD(off)):
7pF, 7pF
Current-Leakage(IS(off))(Max):
250pA
Crosstalk:
-97dB @ 1MHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

ADG721BRMZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADG721BRMZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADG721BRMZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADG721BRMZ information

Views：

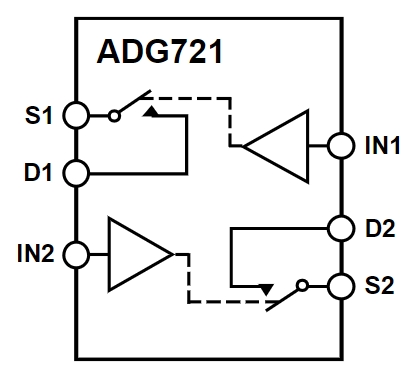

ADG721BRMZ Typical application Circuitry

ADG721BRMZ

The ADG721BRMZ is a CMOS, low-voltage dual SPST (single pole, single throw) switch manufactured by Analog Devices. Applications needing minimal on-resistance and fast switching are intended for this device. The ADG721BRMZ operates with a single power supply ranging from +1.8V to +5.5V, making it ideal for battery-powered devices and portable applications. Its primary features include low power consumption, high switching speed, and a compact package, suitable for a wide range of applications including data acquisition systems, communication systems, and audio/visual signal routing.

Application Scenarios

The ADG721BRMZ is commonly used in scenarios such as signal routing in audio and video equipment, switching in data acquisition systems, and control signal routing in communication devices. Its low on-resistance and high-speed operation make it well-suited for precision analog signal handling.

Parameter Features

- Dual SPST Configuration: Offers two independent single pole, single throw switches in one package.

- Low On-Resistance: Makes sure that there is as little signal diffraction when switching.

- Single Supply Operation: Adaptable to a broad spectrum of power sources, operating from +1.8V to +5.5V.

- Low electricity Consumption: Perfect for applications where electricity is a concern.

Application Example: Audio Signal Routing

Incorporating the ADG721BRMZ into an audio signal routing application involves careful planning to ensure accurate and efficient signal handling. Below is a detailed connection guide:

- Power Supply Connection: Apply a +3.3V power supply to the VDD pin of the ADG721BRMZ. This voltage level is commonly used in audio equipment and supports the device's single supply operation.

- Ground Connection: Attach the system's ground to the GND pin. A secure ground connection is vital for minimizing noise and ensuring stable operation.

- Audio Signal Connection: Connect the audio input signal to the source pin (S1 or S2) of the first switch. The drain pin (D1 or D2) of the switch should be connected to the input of the audio processing or amplification stage. This configuration allows the ADG721BRMZ to route the audio signal based on the control logic.

- Control Logic: Apply control signals to the logic control pins (IN1 and IN2) to open or close the switches. These signals can be driven by a microcontroller or any digital logic circuit, determining the path of the audio signal through the device.

- Decoupling Capacitor: To ensure clean operation and high-quality audio signal routing, place a decoupling capacitor next to the VDD pin to filter out any power supply noise.

- Switching Speed Considerations: Given the high-speed capability of the ADG721BRMZ, ensure that the control signals are free from glitches to prevent unintended switching.

When designing with the ADG721BRMZ in an audio signal routing application, it's essential to ensure a clean power supply, accurate control signal timing, and minimal introduction of noise through the switching process. Proper implementation of these considerations will leverage the high-speed, low on-resistance switching capabilities of the ADG721BRMZ for efficient and high-quality audio signal routing.
