Analog Devices Inc. ADG719BRTZ-REEL7

Part No.:: ADG719BRTZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: SOT-23-6

Datasheet:

Description:: IC SWITCH SPDT SOT23-6

In Stock:: 2981

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADG719BRTZ-REEL7 Specifications

Package/Case:
SOT-23-6
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPDT
Multiplexer/DemultiplexerCircuit:
2:1
NumberofCircuits:
1
On-StateResistance(Max):
4Ohm
Channel-to-ChannelMatching(ΔRon):
-
Voltage-SupplySingle(V+):
1.8V ~ 5.5V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
7ns, 3ns (Typ)
-3dbBandwidth:
200MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
7pF
Current-Leakage(IS(off))(Max):
250pA
Crosstalk:
-82dB @ 1MHz
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

ADG719BRTZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADG719BRTZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADG719BRTZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADG719BRTZ-REEL7 information

Views：

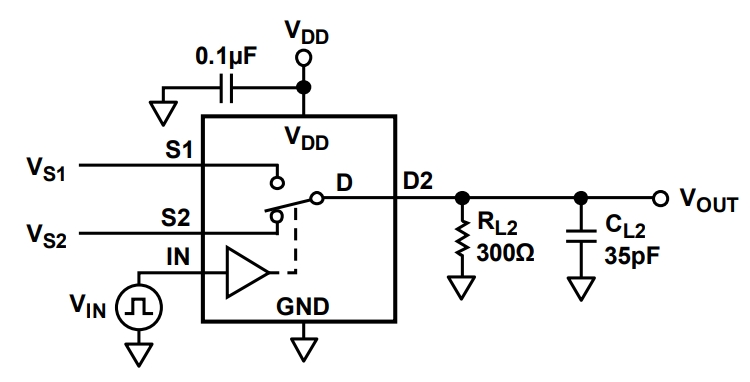

ADG719BRTZ-REEL7 Typical application Circuitry

ADG719BRTZ-REEL7

ADG719BRTZ-REEL7 is a CMOS, single-pole, double-throw (SPDT) switch that operates with a single supply voltage in the range of 1.8 V to 5.5 V. The chip features low on-resistance (2.5 ohms typical) and offers a high bandwidth (700 MHz), making it suitable for various applications in signal routing, data acquisition, and communication systems.

Applications of ADG719BRTZ-REEL7:

1. Audio and video signal routing.

2. Data acquisition systems.

3. Communication systems.

4. Test and measurement equipment.

Parameter Features of ADG719BRTZ-REEL7:

1. Single supply voltage range: 1.8 V to 5.5 V.

2. On-resistance: 2.5 ohms typical.

3. Bandwidth: 700 MHz.

4. Switch configuration: SPDT.

Example Application Circuit for Data Acquisition System:

1. Power Supply Connection:

- Connect the VDD pin (pin 5) to a 3.3V power supply.

- Connect the GND pin (pin 3) to the system's ground.

2. Input and Output Connection:

- Connect the analog input signal to the source pin (S1, pin 1).

- Connect the drain pin (D, pin 2) to the input of the data acquisition module.

3. Control Connection:

- Connect the digital control signal to the logic input (IN, pin 4) to control the switch.

Design Considerations:

- Ensure that the power supply voltage is within the specified range for ADG719BRTZ-REEL7.

- Consider the effects of on-resistance and capacitance on the analog input signal.

- Configure the digital control signal appropriately to switch between the desired input channels for data acquisition.

In summary, when designing a circuit with ADG719BRTZ-REEL7, it is crucial to consider the power supply requirements, the effects of on-resistance and capacitance, and the proper configuration of control signals. By following these guidelines, you can effectively utilize the switch in a data acquisition system, ensuring high-performance and reliable operation.
