Analog Devices Inc. ADG706BRUZ

Part No.:: ADG706BRUZ

Manufacturer:: Analog Devices Inc.

Package:: 28-TSSOP (0.173, 4.40mm Width)

Datasheet:: ADG706BRUZ.pdf

Description:: IC MULTIPLEXER 16X1 28TSSOP

In Stock:: 3551

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADG706BRUZ Specifications

Package/Case:
28-TSSOP (0.173, 4.40mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
SwitchCircuit:
-
Multiplexer/DemultiplexerCircuit:
16:1
NumberofCircuits:
1
On-StateResistance(Max):
4.5Ohm
Channel-to-ChannelMatching(ΔRon):
-
Voltage-SupplySingle(V+):
1.8V ~ 5.5V
Voltage-SupplyDual(V±):
±2.5V
SwitchTime(TonToff)(Max):
32ns, 16ns (Typ)
-3dbBandwidth:
25MHz
ChargeInjection:
8pC
ChannelCapacitance(CS(off)CD(off)):
13pF, 180pF
Current-Leakage(IS(off))(Max):
100pA
Crosstalk:
-80dB @ 1MHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

ADG706BRUZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADG706BRUZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADG706BRUZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADG706BRUZ information

Views：

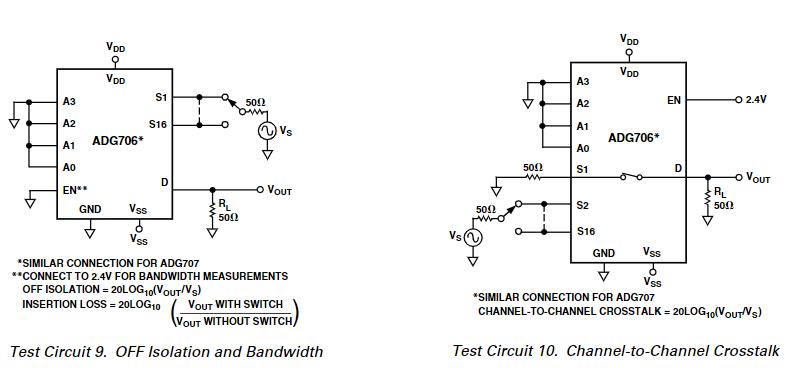

ADG706BRUZ Typical application Circuitry Schematics

The ADG706BRUZ is a monolithic complementary metal-oxide-semiconductor (CMOS) device containing a 16-channel multiplexer/multiplexer. It is developed by Analog Devices and is often used in data acquisition systems, communication systems, and other applications where it's necessary to route digital or analog signals. Key features of the ADG706BRUZ include:

1. 16:1 Multiplexer/Multiplexer: The ADG706BRUZ can route one of 16 inputs (S1 to S16) to a common output/input (D), depending on the status of the four binary address inputs (A0 to A3).

2. Low ON Resistance: The switch of the multiplexer has low ON resistance, ensuring a high-quality signal path.

3. Single Supply Operation: It can operate with a single power supply ranging from +2.7 V to +5.5 V.

4. "5 V Tolerant Logic Inputs": When the device is powered by a 3 V supply, logic inputs are 5 V tolerant.

The significant pins of the ADG706BRUZ and their functions are as follows:

- S1–S16 (Various Pins): These are the sixteen different inputs for the multiplexer. Depending on the configuration of the binary address inputs (A0–A3), one of these inputs is connected to the output pin (D).

- D (Pin 24): This is the common output/input of the multiplexer.

- A0–A3 (Pins 1, 2, 3, 4): These are the binary address inputs used to select which of the S1–S16 input pins is connected to the output pin (D).

- EN (Pin 5): This is to enable input for the multiplexer. When this pin is low, the multiplexer is disabled and the output is disconnected from all inputs.

- VDD/VSS (Pins 11/30): These are the power supply pins of the multiplexer.

The specific circuit connection method for the ADG706BRUZ depends on your specific use case. Always refer to the data sheet for detailed information and guidelines on using this device, including recommended operating conditions, power supply decoupling, and grounding considerations.
