Analog Devices Inc. ADG619BRTZ-500RL7

Part No.:: ADG619BRTZ-500RL7

Manufacturer:: Analog Devices Inc.

Package:: SOT-23-8

Datasheet:

Description:: IC SWITCH SPDT SOT23-8

In Stock:: 3916

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADG619BRTZ-500RL7 Specifications

Package/Case:
SOT-23-8
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPDT
Multiplexer/DemultiplexerCircuit:
2:1
NumberofCircuits:
1
On-StateResistance(Max):
6.5Ohm
Channel-to-ChannelMatching(ΔRon):
700mOhm
Voltage-SupplySingle(V+):
2.7V ~ 5.5V
Voltage-SupplyDual(V±):
±2.7V ~ 5.5V
SwitchTime(TonToff)(Max):
120ns, 75ns
-3dbBandwidth:
190MHz
ChargeInjection:
110pC
ChannelCapacitance(CS(off)CD(off)):
25pF
Current-Leakage(IS(off))(Max):
250pA
Crosstalk:
-67dB @ 1MHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

ADG619BRTZ-500RL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADG619BRTZ-500RL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADG619BRTZ-500RL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADG619BRTZ-500RL7 information

Views：

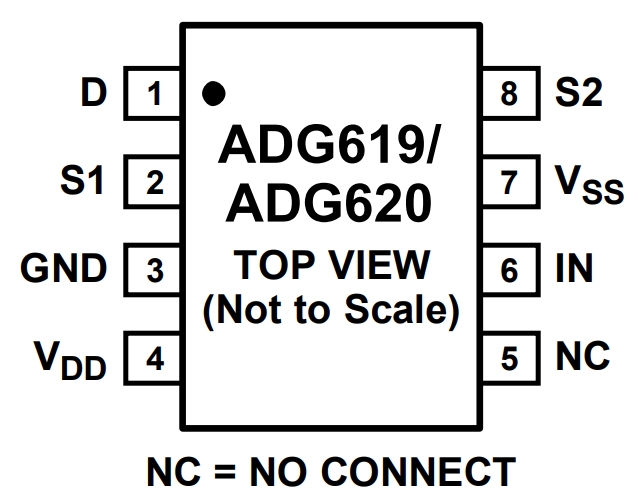

ADG619BRTZ-500RL7 Typical application Circuitry

ADG619BRTZ-500RL7

The ADG619BRTZ-500RL7 is a high-performance analog switch IC produced by Analog Devices. It belongs to the CMOS switch product line and is widely used in various electronic systems due to its excellent performance and flexibility.

Application Scenarios

The ADG619BRTZ-500RL7 is extensively used in:

- Data acquisition systems

- Communication systems

- Audio and video switching

- Instrumentation

- Medical devices

Parameter Features

The main features of the ADG619BRTZ-500RL7 include:

- Single supply operation, ranging from +2.7V to +5.5V

- Low power consumption

- Low charge injection

- Low on-resistance

- High switching speed

- Dual-channel configuration

Considerations in Circuit Design

Key considerations in the design include:

- Supply Voltage: Ensure the supply voltage is within the operating range of the ADG619BRTZ-500RL7.

- Signal Amplitude: The amplitude of the input signal should not exceed the IC's maximum rated value.

- Switching Speed: Choose an appropriate switching speed based on application requirements.

- Temperature Range: Ensure the operating temperature meets the specification requirements.

Specific Application Scenario Circuit Design

Considering the application of the ADG619BRTZ-500RL7 in a data acquisition system, here is an example of a specific circuit connection:

1. Power Connection: First, connect the VDD pin of the ADG619BRTZ-500RL7 to a +3.3V power supply, and connect the GND pin to ground.

2. Input and Output Signals: Connect the analog signals to be switched to the S1 and S2 pins, with the D pin connected to the next stage of the circuit or an ADC input.

3. Control Logic: The IN1 and IN2 pins receive control signals from a microcontroller (MCU) to control the switch state.

4. Attenuation and Filtering: Add an RC filtering network in the signal path to reduce high-frequency noise and improve signal quality.

5. Protection Circuit: Add a voltage protection circuit at the signal input to protect the ADG619BRTZ-500RL7 from voltage spikes.

6. Testing and Debugging: Finally, check the signal integrity and switch functionality through external test points to ensure the system works correctly.

In designing the circuit, close attention should be paid to signal integrity, power stability, and switching speed to ensure the ADG619BRTZ-500RL7 achieves optimal performance in specific applications.
