Analog Devices Inc. ADG5413FBRUZ

Part No.:: ADG5413FBRUZ

Manufacturer:: Analog Devices Inc.

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:

Description:: IC SWITCH QUAD SPST 16TSSOP

In Stock:: 3600

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADG5413FBRUZ Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPST - NO/NC
Multiplexer/DemultiplexerCircuit:
1:1
NumberofCircuits:
4
On-StateResistance(Max):
11.5Ohm
Channel-to-ChannelMatching(ΔRon):
50mOhm
Voltage-SupplySingle(V+):
8V ~ 44V
Voltage-SupplyDual(V±):
±5V ~ 22V
SwitchTime(TonToff)(Max):
500ns, 515ns
-3dbBandwidth:
270MHz
ChargeInjection:
-640pC
ChannelCapacitance(CS(off)CD(off)):
12pF, 11pF
Current-Leakage(IS(off))(Max):
250pA
Crosstalk:
-70dB @ 1MHz
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

ADG5413FBRUZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADG5413FBRUZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADG5413FBRUZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADG5413FBRUZ information

Views：

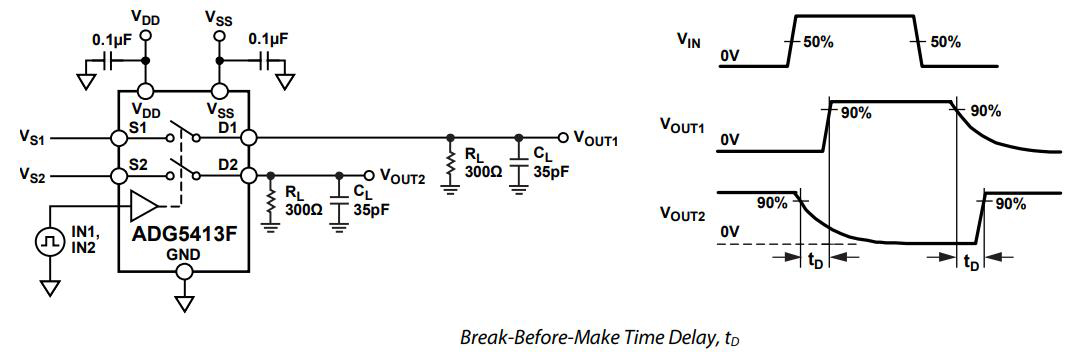

ADG5413FBRUZ Typical application Circuitry

Manufactured by Analog Devices and features a fault protection mechanism that shields the device from over-voltage conditions. Common applications for the ADG5413FBRUZ range from precision test equipment and data acquisition systems to audio and video signal routing.

This device also suits applications that require beyond-the-rail capability or that could potentially be exposed to fault conditions.

The ADG5413FBRUZ chip features several key specifications:

1. High-Voltage Tolerance: This switch can handle voltages up to +55 V and -55 V in the powered-off condition.

2. Rail-to-Rail Operation: The ADG5413FBRUZ is capable of carrying out rail-to-rail analog signal switching.

3. Fault Protection Mechanism: A key distinguishing characteristic of this device is its fault protection to ±55 V, even in powered-off conditions.

4. Low On Resistance: The device has a low RON (on resistance), ensuring minimal signal distortion.

5. Latch-Up Immunity: It is immune to latch-up for improved system reliability.

Let's consider using the ADG5413FBRUZ in a data acquisition system. The precise steps for setting up the circuit are as follows:

1. Powering the Chip: For dual-supply operation, apply a positive supply voltage to VDD (Pin 16) and a negative supply voltage to VSS (Pin 8). Connect the GND pin (Pin 15) to your system ground.

2. Connecting the Inputs: The four input channels are connected to the S1, S2, S3, and S4 pins (Pins 2, 3, 5, and 6). Each of these pins will be connected to a different signal source in your data acquisition system.

3. Connecting the Outputs: The D1 and D2 pins (Pins 1 and 4, 10 and 11) act as the output of each SPDT switch. These can be connected to the inputs of an ADC or other signal processing components in your system.

4. Control Inputs: The IN1, IN2, IN3, and IN4 pins (Pins 13, 12, 9, and 7) are the control inputs for each switch. By toggling these inputs, you can control the state of the corresponding switches.

5. Capacitors for Power Decoupling: As a standard practice, connect decoupling capacitors between VDD and GND, and between VSS and GND to filter out high-frequency noise from the power supply.

While designing circuits with the ADG5413FBRUZ, keep the following considerations in mind:

1. Over-Voltage Protection: Although the ADG5413FBRUZ has fault protection, it's crucial not to exceed the maximum rated voltage during operation to prevent damage to the device.

2. Thermal Management: Overheating can impair the device's functionality, so it's essential to ensure proper heat dissipation in your design.

3. Power Supply Noise: Use decoupling capacitors to minimize power supply noise, which could impact the device's performance.

4. Switching Speed: The switching speed can affect the device's performance, so select control signals that meet your system requirements.

In conclusion, the ADG5413FBRUZ is a robust, high-performance switch that provides reliable operation, even under challenging conditions.
