Analog Devices Inc. ADG452BRZ-REEL7

Part No.:: ADG452BRZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: ADG452BRZ-REEL7.pdf

Description:: IC SWITCH QUAD SPST 16SOIC

In Stock:: 3981

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADG452BRZ-REEL7 Specifications

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPST - NO
Multiplexer/DemultiplexerCircuit:
1:1
NumberofCircuits:
4
On-StateResistance(Max):
5Ohm
Channel-to-ChannelMatching(ΔRon):
100mOhm
Voltage-SupplySingle(V+):
12V
Voltage-SupplyDual(V±):
±4.5V ~ 20V
SwitchTime(TonToff)(Max):
180ns, 140ns
-3dbBandwidth:
-
ChargeInjection:
20pC
ChannelCapacitance(CS(off)CD(off)):
37pF, 37pF
Current-Leakage(IS(off))(Max):
500pA
Crosstalk:
-90dB @ 1MHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

ADG452BRZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADG452BRZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADG452BRZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADG452BRZ-REEL7 information

Views：

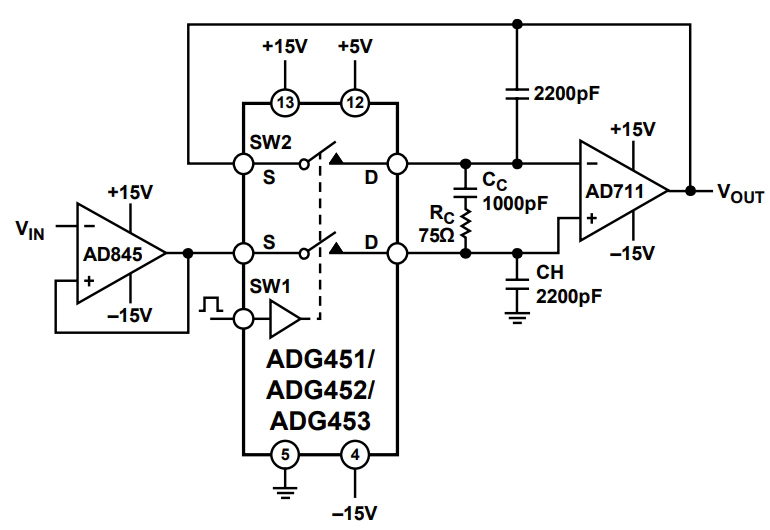

ADG452BRZ-REEL7 Typical application Circuitry

ADG452BRZ-REEL7

A CMOS Single Pole Single Throw (SPST) analog switch with a low on-resistance and low power consumption is the ADG452BRZ-REEL7. It is appropriate for a wide range of applications, including audio and video signal routing, communication systems, and data acquisition systems.

Utilization of ADG452BRZ-REEL7:

- Systems for acquiring data

- Systems of communication

- Audio and video signal routing

Important details of ADG452BRZ-REEL7:

- Normal low on-resistance is 10 ohms.

- SPST configuration

- Low power consumption

Application Circuit Example:

In this example, let's consider how ADG452BRZ-REEL7 can be used in a data acquisition system to switch between multiple sensors.

1. Power Supply Connections:

- Connect VDD (pin 6) to a 5V power supply.

- Connect GND (pin 3) to the ground of the circuit.

2. Input Connections:

- Connect the output of the sensor to the Source (pin 2).

3. Output Connections:

- Connect the output of the switch to the input of the data acquisition system.

4. Control Connections:

- Connect a digital control signal to IN (pin 1) to control the state of the switch.

Design Considerations:

- Ensure that the power supply voltage is correctly applied to VDD, and connect GND to the circuit ground.

- Verify that the sensor's output voltage is within the maximum rating of the switch.

- Consider the on-resistance of the switch, as it may affect the performance of the data acquisition system.

In summary, ADG452BRZ-REEL7 is an efficient and versatile analog switch suitable for applications that require low on-resistance and low power consumption. The example provided demonstrates how this switch can be integrated into a data acquisition system to switch between different sensors. When designing a circuit with ADG452BRZ-REEL7, it is crucial to consider the power supply voltage, input signal voltage, and on-resistance of the switch to ensure optimal performance.
