Analog Devices Inc. ADG451BRZ

Part No.:: ADG451BRZ

Manufacturer:: Analog Devices Inc.

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: ADG451BRZ.pdf

Description:: IC SWITCH QUAD SPST 16SOIC

In Stock:: 3801

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADG451BRZ Specifications

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPST - NC
Multiplexer/DemultiplexerCircuit:
1:1
NumberofCircuits:
4
On-StateResistance(Max):
5Ohm
Channel-to-ChannelMatching(ΔRon):
100mOhm
Voltage-SupplySingle(V+):
12V
Voltage-SupplyDual(V±):
±4.5V ~ 20V
SwitchTime(TonToff)(Max):
180ns, 140ns
-3dbBandwidth:
-
ChargeInjection:
20pC
ChannelCapacitance(CS(off)CD(off)):
37pF, 37pF
Current-Leakage(IS(off))(Max):
500pA
Crosstalk:
-90dB @ 1MHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

ADG451BRZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADG451BRZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADG451BRZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADG451BRZ information

Views：

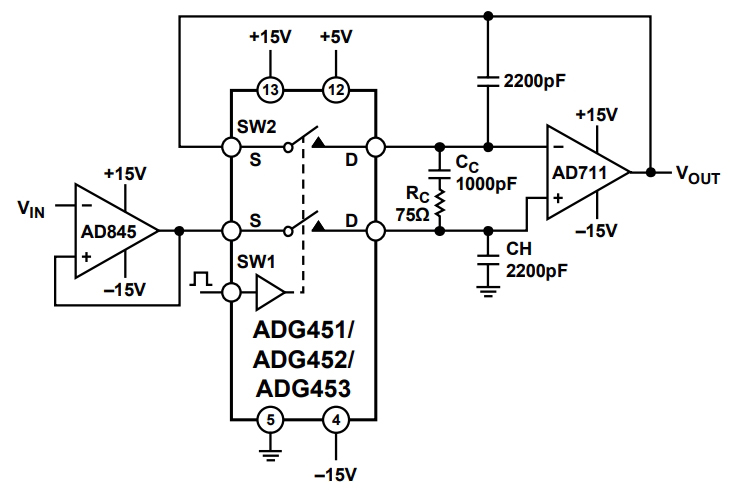

ADG451BRZ Typical application Circuitry

ADG451BRZ

ADG451BRZ is a CMOS, SPST (Single Pole Single Throw) analog switch with a low on resistance of typically 10 ohms. Numerous applications, including as data acquisition systems, communication systems, and audio and video signal routing, are perfect for this device.

Applications of ADG451BRZ:

- Data acquisition systems

- Communication systems

- Audio and video signal routing

Key Specifications of ADG451BRZ:

- Low on resistance: typically 10 ohms

- SPST configuration

- Low power consumption

Application Circuit Example:

For instance, we can use ADG451BRZ in an audio signal routing application.

1. Power Supply Connections:

- Connect VDD (pin 6) to a 5V power supply.

- Connect GND (pin 3) to the ground of the circuit.

2. Input Connections:

- Connect the audio input signal to the Source (pin 2).

3. Output Connections:

- Connect the output of the switch to the input of the audio amplifier or speaker system.

4. Control Connections:

- Connect a digital control signal to the IN (pin 1) to control the state of the switch.

Design Considerations:

- Ensure the correct power supply voltage is provided to VDD and connect GND to the circuit ground.

- Verify the audio signal voltage is within the maximum rating of the switch.

- Consider the on resistance of the switch as it may affect the performance of the audio system.

In conclusion, ADG451BRZ is an efficient and versatile analog switch ideal for applications where low on resistance and low power consumption are essential. The circuit example provided illustrates how to use this switch in an audio signal routing application. When designing a circuit with ADG451BRZ, it is crucial to consider the power supply voltage, input signal voltage, and on-resistance of the switch to ensure optimal performance.
