What is the Additional Feature ?

Name: ADG408BRZ-REEL7
Brand: Analog Devices Inc.
SKU: ADG408BRZ-REEL7
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. ADG408BRZ-REEL7

Part No.:: ADG408BRZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: ADG408BRZ-REEL7.pdf

Description:: IC MULTIPLEXER 8X1 16SOIC

In Stock:: 3942

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADG408BRZ-REEL7 Specifications

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchCircuit:
-
Multiplexer/DemultiplexerCircuit:
8:1
NumberofCircuits:
1
On-StateResistance(Max):
100Ohm
Channel-to-ChannelMatching(ΔRon):
15Ohm (Max)
Voltage-SupplySingle(V+):
12V
Voltage-SupplyDual(V±):
±15V
SwitchTime(TonToff)(Max):
-
-3dbBandwidth:
-
ChargeInjection:
20pC
ChannelCapacitance(CS(off)CD(off)):
11pF, 40pF
Current-Leakage(IS(off))(Max):
500pA
Crosstalk:
-85dB @ 100kHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

ADG408BRZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADG408BRZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADG408BRZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADG408BRZ-REEL7 information

Views：

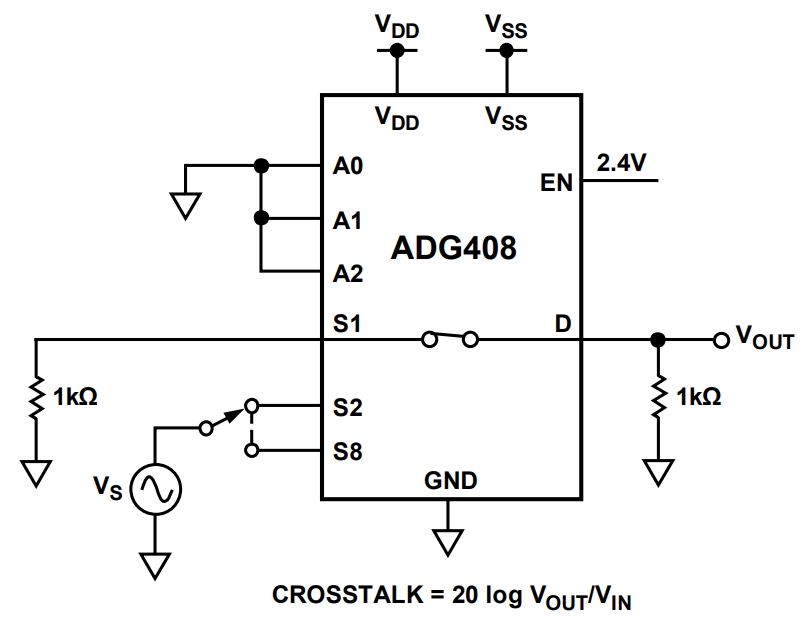

ADG408BRZ-REEL7 Typical application Circuitry

ADG408BRZ-REEL7

ADG408BRZ-REEL7 is an 8-channel analog multiplexer (MUX) designed and manufactured by Analog Devices. The chip operates on a single 5V power supply and is capable of handling both AC and DC signals. It is widely utilized in various applications, including data acquisition systems, audio and video signal routing, industrial automation, and more.

Key features of ADG408BRZ-REEL7:

1. 8:1 single-ended MUX configuration

2. Single 5V power supply operation

3. Low on-resistance: 50 Ω typical

4. Fast switching times: tON = 150 ns, tOFF = 100 ns

5. Break-before-make switching action

Application Scenario of ADG408BRZ-REEL7:

For this scenario, we will use ADG408BRZ-REEL7 to route audio signals in a professional audio mixing console.

Circuit Connection:

1. Power Supply:

- Connect the VDD pin (Pin 24) to a 5V power supply.

- Connect the VSS pin (Pin 11) and DGND pin (Pin 12) to ground.

2. Control Signals:

- Connect the A0 (Pin 4), A1 (Pin 3), and A2 (Pin 2) pins to the microcontroller's GPIO pins or rotary encoder outputs. These pins will be used to select the active channel.

3. Input/Output:

- Connect the S1 (Pin 13) to S8 (Pin 20) pins to the audio sources or inputs from other channels of the mixing console.

- Connect the D (Pin 22) pin to the input of the next stage in the audio processing chain.

4. Enable Signal:

- Connect the EN (Pin 5) pin to a microcontroller's GPIO pin or tie it to ground to enable the MUX.

Design Considerations:

When designing a circuit with ADG408BRZ-REEL7, consider the following:

1. Power Supply: Ascertain that the power source is both stable and falls within the designated voltage range.

2. Control Signals: Make sure that the control input levels are compatible with the MUX's control input requirements.

3. Input/Output: Verify that the audio sources' output voltage levels are compatible with the MUX's input voltage range.

4. Signal Integrity: Minimize the length of the traces connecting the audio sources, MUX, and next stage in the audio processing chain to preserve signal integrity.

5. Isolation: Use proper grounding and shielding techniques to minimize noise and crosstalk between channels.

6. Component Placement: Arrange components on the PCB to minimize the path lengths of critical signals and to avoid interference from other components or external sources.
