Name: ADG1636BCPZ-REEL
Brand: Analog Devices Inc.
SKU: ADG1636BCPZ-REEL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. ADG1636BCPZ-REEL

Part No.:: ADG1636BCPZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 16-VQFN Exposed Pad, CSP

Datasheet:: ADG1636BCPZ-REEL.pdf

Description:: IC SWITCH DUAL SPDT 16LFCSP

In Stock:: 2187

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADG1636BCPZ-REEL Specifications

Package/Case:
16-VQFN Exposed Pad, CSP
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPDT
Multiplexer/DemultiplexerCircuit:
2:1
NumberofCircuits:
2
On-StateResistance(Max):
1.1Ohm
Channel-to-ChannelMatching(ΔRon):
30mOhm
Voltage-SupplySingle(V+):
3.3V ~ 16V
Voltage-SupplyDual(V±):
±3.3V ~ 8V
SwitchTime(TonToff)(Max):
95ns, 161ns
-3dbBandwidth:
27MHz
ChargeInjection:
150pC
ChannelCapacitance(CS(off)CD(off)):
65pF, 120pF
Current-Leakage(IS(off))(Max):
250pA
Crosstalk:
-90dB @ 1MHz
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

ADG1636BCPZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADG1636BCPZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADG1636BCPZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADG1636BCPZ-REEL information

Views：

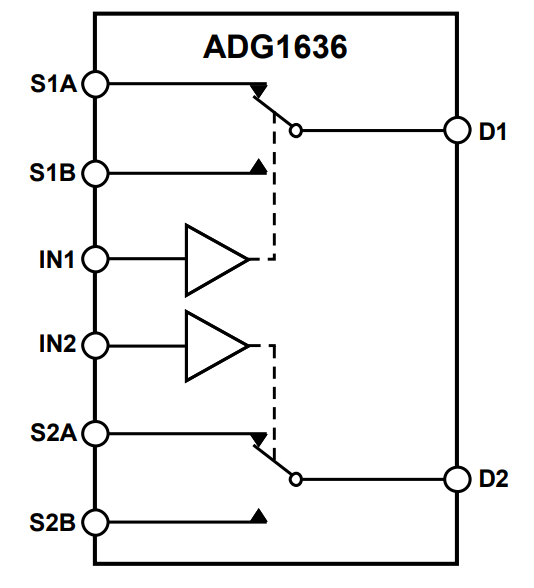

ADG1636BCPZ-REEL Typical application Circuitry

ADG1636BCPZ-REEL

The ADG1636BCPZ-REEL emerges as a cornerstone component within Analog Devices' portfolio, symbolizing the cutting-edge in dual-channel, high-performance analog switches. Tailored for precision and efficiency, this device is pivotal for applications demanding robust signal routing capabilities with minimal signal distortion and power loss. The ADG1636BCPZ-REEL, with its dual SPDT (Single Pole Double Throw) configuration, is adept at managing analog signals in a myriad of contexts, from audio and video equipment to communication systems and industrial controls, showcasing unparalleled versatility.

1. Series Distinction and Operational Mechanics: The ADG1636BCPZ-REEL belongs to a series renowned for low on-resistance and high-speed switching capabilities, operating efficiently across a wide voltage range. This device is fabricated using Analog Devices' proprietary iCMOS® technology, marrying the low power consumption of CMOS with the high voltage tolerance and speed of bipolar transistors. This synergy enables the ADG1636BCPZ-REEL to deliver exceptional performance in both dual and single supply operations, accommodating a broad spectrum of application requirements.

2. Pin Configuration and Electrical Connections: The essence of leveraging the ADG1636BCPZ-REEL's capabilities lies in the precise implementation of its 16-pin LFCSP (Lead Frame Chip Scale Package) configuration. This includes power supply (VDD), ground (GND), digital control inputs (A0, A1 for channel selection), source inputs/outputs (S1A, S1B, S2A, S2B), and drain outputs/inputs (D1, D2). VDD and GND pins anchor the device's power framework, ensuring stable operation. The digital control inputs, A0 and A1, govern the selection of the active channel, facilitating meticulous control over the routing of analog signals. The source and drain pins are integral to the signal path, enabling the seamless transmission of analog signals with minimized resistance and enhanced signal integrity.

3. Thermal Management and Power Efficiency: The ADG1636BCPZ-REEL's design prioritizes thermal efficiency, crucial for maintaining operational integrity and longevity. Its LFCSP package not only minimizes the device's footprint on printed circuit boards but also enhances heat dissipation, ensuring stable performance even under high switching frequencies or in environments with elevated temperatures. Power efficiency is further accentuated by the device's low on-resistance, which minimizes power loss during signal routing, a paramount feature for battery-operated and energy-sensitive applications.

4. Application Versatility and Packaging: The compact footprint of the ADG1636BCPZ-REEL, combined with its high-performance characteristics, renders it an ideal choice for a diverse array of applications requiring reliable and efficient analog signal switching. From precision instrumentation to portable consumer electronics, this device embodies the versatility and innovation that Analog Devices is celebrated for. Its packaging in a reel format (REEL) underscores the commitment to supply chain efficiency, facilitating ease of integration into manufacturing processes and promoting widespread adoption in various technological solutions.

In essence, the ADG1636BCPZ-REEL stands as a testament to Analog Devices' dedication to advancing electronic system design. Through its meticulous pin configuration, robust thermal management, and adaptive power handling, the ADG1636BCPZ-REEL is engineered to meet the exacting demands of modern analog signal routing applications, setting a benchmark for performance, efficiency, and reliability.
