What is the Additional Feature ?

Name: ADG1612BRUZ-REEL
Brand: Analog Devices Inc.
SKU: ADG1612BRUZ-REEL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. ADG1612BRUZ-REEL

Part No.:: ADG1612BRUZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: ADG1612BRUZ-REEL.pdf

Description:: IC SWITCH QUAD SPST 16TSSOP

In Stock:: 3972

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADG1612BRUZ-REEL Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPST - NO
Multiplexer/DemultiplexerCircuit:
1:1
NumberofCircuits:
4
On-StateResistance(Max):
1.1Ohm
Channel-to-ChannelMatching(ΔRon):
30mOhm
Voltage-SupplySingle(V+):
3.3V ~ 16V
Voltage-SupplyDual(V±):
±3.3V ~ 8V
SwitchTime(TonToff)(Max):
156ns, 87ns
-3dbBandwidth:
38MHz
ChargeInjection:
170pC
ChannelCapacitance(CS(off)CD(off)):
60pF, 60pF
Current-Leakage(IS(off))(Max):
300pA
Crosstalk:
-110dB @ 1MHz
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

ADG1612BRUZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADG1612BRUZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADG1612BRUZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADG1612BRUZ-REEL information

Views：

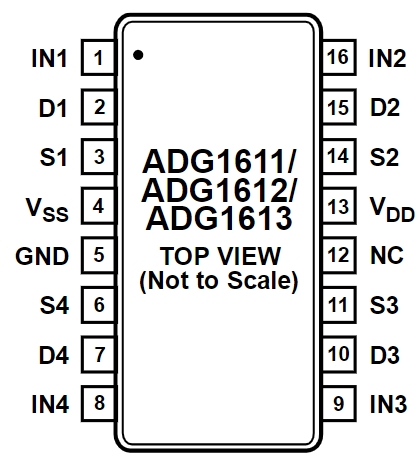

ADG1612BRUZ-REEL Typical application Circuitry

ADG1612BRUZ-REEL

The ADG1612BRUZ-REEL is a quad single-pole single-throw (SPST) analog switch from Analog Devices, notable for its low on-resistance and wide operating voltage range.

Application Scenarios

The ADG1612BRUZ-REEL is ideal for use in data acquisition systems, communication systems, audio and video signal routing, and any circuit requiring precise control over analog signal routing. Its ability to handle significant current levels while maintaining low on-resistance makes it suitable for both AC and DC signal switching.

Parameter Features

- Quad SPST Switches: Offers flexibility in routing signals through four independently controlled channels.

- Low On-Resistance: Provides the least amount of power loss and signal attenuation.

- Broad Supply Voltage Range: Makes it easier to operate systems with different power supply capacities.

- Fast Switching Speed: Critical for applications requiring rapid signal routing changes.

Application Example: Audio Signal Routing

Creating an audio signal routing circuit using the ADG1612BRUZ-REEL involves detailed planning for optimal performance. Here's a detailed configuration:

- Power Supply Connection: Apply a +9V power supply to the VDD pin (Pin 24) of the ADG1612BRUZ-REEL. This voltage level is typical in audio equipment, providing sufficient headroom for signal routing.

- Grounding: Connect the GND pin (Pin 12) to the system's ground. To reduce noise and provide steady functioning, a strong ground connection is essential.

- Audio Signal Input: Connect the input audio signals to the source pins (S1-S4) of the ADG1612BRUZ-REEL (Pins 5, 8, 11, and 14). This setup allows the device to receive signals from various audio sources.

- Output to Amplifiers/Receivers: Link the drain pins (D1-D4) (Pins 6, 9, 12, and 15) to the inputs of amplifiers or receivers. The ADG1612BRUZ-REEL routes the selected audio signals to these outputs based on the control logic.

- Control Logic: Implement digital control signals to the logic control pins (IN1-IN4) (Pins 1, 2, 3, and 4) to open or close the switches as needed. These signals, typically generated by a microcontroller, dictate the audio signal paths through the device.

- Decoupling Capacitors: Place decoupling capacitors near the VDD pin to filter out power supply noise, ensuring the ADG1612BRUZ-REEL operates without interference.

- Signal Integrity Considerations: Keep the trace lengths between the ADG1612BRUZ-REEL and the audio sources/destinations as short as possible. Additionally, use shielding and grounding techniques to minimize noise and cross-talk.

When designing with the ADG1612BRUZ-REEL in an audio signal routing application, it's crucial to address power supply stability, control signal integrity, and the physical layout to minimize noise and signal degradation. Proper implementation of these considerations will leverage the low on-resistance and fast switching capabilities of the ADG1612BRUZ-REEL for efficient and high-quality audio signal routing.
