Analog Devices Inc. ADG1612BRUZ

Part No.:: ADG1612BRUZ

Manufacturer:: Analog Devices Inc.

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: ADG1612BRUZ.pdf

Description:: IC SWITCH QUAD SPST 16TSSOP

In Stock:: 122

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADG1612BRUZ Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPST - NO
Multiplexer/DemultiplexerCircuit:
1:1
NumberofCircuits:
4
On-StateResistance(Max):
1.1Ohm
Channel-to-ChannelMatching(ΔRon):
30mOhm
Voltage-SupplySingle(V+):
3.3V ~ 16V
Voltage-SupplyDual(V±):
±3.3V ~ 8V
SwitchTime(TonToff)(Max):
156ns, 87ns
-3dbBandwidth:
38MHz
ChargeInjection:
170pC
ChannelCapacitance(CS(off)CD(off)):
60pF, 60pF
Current-Leakage(IS(off))(Max):
300pA
Crosstalk:
-110dB @ 1MHz
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

ADG1612BRUZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADG1612BRUZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADG1612BRUZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADG1612BRUZ information

Views：

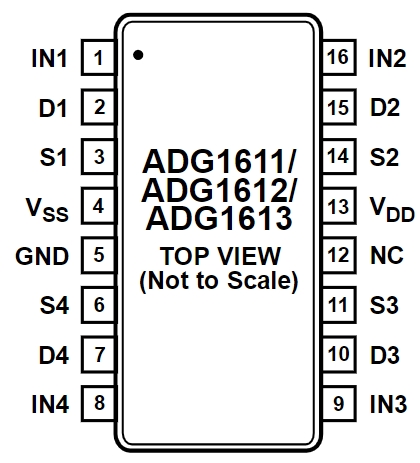

ADG1612BRUZ Typical application Circuitry

ADG1612BRUZ

The ADG1612BRUZ is a CMOS monolithic device made up of four single-pole, single-throw (SPST) switches that can be selected individually. It's part of Analog Devices' portfolio, designed for use where low operating power and low on-resistance are critical.

Application Scenarios

The ADG1612BRUZ is widely used in applications such as data acquisition systems, communication systems, audio and video signal routing, and any circuit requiring high-performance analog switching. Its ability to handle significant current levels while maintaining low on-resistance makes it suitable for both AC and DC signal switching.

Parameter Features

- Four SPST Switches: Offers flexibility in routing signals through four independently controlled channels.

- Low On-Resistance: Provides the least amount of distortion and signal attenuation.

- Single Supply Operation: Compatible with a wide range of supply voltages, enhancing its adaptability in various systems.

- High ESD Protection: Provides robustness against electrostatic discharges, enhancing device reliability.

Application Example: Audio Signal Routing System

Incorporating the ADG1612BRUZ into an audio signal routing system involves detailed planning for optimal signal integrity and performance. Here's a detailed guide on configuring the device for this application:

- Power Supply Connection: Apply a single +12V power supply to the VDD pin (Pin 24) of the ADG1612BRUZ. This voltage level is common in audio equipment and supports the device's single-supply operation.

- Grounding: Connect the GND pin (Pin 12) to the system's ground. For reliable functioning and to reduce noise, a strong ground connection must be established.

- Audio Signal Connections: Connect the input audio signals to the source pins (S1-S4) of the ADG1612BRUZ (Pins 5, 8, 11, and 14). Connect the output lines leading to various audio processing or amplification stages to the corresponding drain pins (D1-D4) (Pins 6, 9, 12, and 15). This configuration allows for selective routing of audio signals through the switches.

- Control Logic: Apply digital control signals to the logic control pins (IN1-IN4) (Pins 1, 2, 3, and 4) to open or close the switches as required. These control signals can be generated by a microcontroller or digital logic circuit, enabling dynamic selection of audio signal paths.

- Decoupling Capacitor: Place a decoupling capacitor (e.g., 0.1μF) near the VDD pin to filter out power supply noise, ensuring clean operation and high-quality audio signal routing.

- Signal Integrity Considerations: To maintain audio signal quality, keep the trace lengths between the ADG1612BRUZ and the audio sources/destinations as short as possible. Additionally, consider impedance matching and shielding techniques to minimize noise and cross-talk.

When designing with the ADG1612BRUZ in an audio signal routing application, it's crucial to address power supply stability, control signal integrity, and the physical layout to minimize noise and signal degradation. Proper implementation of these considerations will exploit the low on-resistance and fast switching capabilities of the ADG1612BRUZ for efficient and high-quality audio signal routing.
