Analog Devices Inc. ADG1211YRUZ-REEL7

Part No.:: ADG1211YRUZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: ADG1211YRUZ-REEL7.pdf

Description:: IC SWITCH QUAD SPST 16TSSOP

In Stock:: 3331

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ADG1211YRUZ-REEL7 Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPST - NC
Multiplexer/DemultiplexerCircuit:
1:1
NumberofCircuits:
1
On-StateResistance(Max):
190Ohm
Channel-to-ChannelMatching(ΔRon):
2.5Ohm
Voltage-SupplySingle(V+):
5V ~ 16.5V
Voltage-SupplyDual(V±):
±4.5V ~ 16.5V
SwitchTime(TonToff)(Max):
130ns, 115ns
-3dbBandwidth:
1GHz
ChargeInjection:
-0.3pC
ChannelCapacitance(CS(off)CD(off)):
1.1pF, 1.2pF
Current-Leakage(IS(off))(Max):
100pA
Crosstalk:
-90dB @ 1MHz
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

ADG1211YRUZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ADG1211YRUZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ADG1211YRUZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ADG1211YRUZ-REEL7 information

Views：

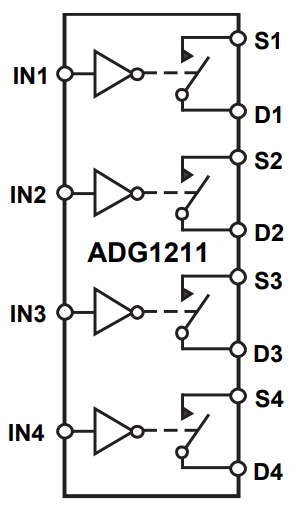

ADG1211YRUZ-REEL7 Typical application Circuitry

ADG1211YRUZ-REEL7

The ADG1211YRUZ-REEL7 belongs to the ADG1211 series, a collection of high-performance, single-pole/single-throw (SPST) analog switches designed by Analog Devices. Renowned for their low on-resistance, fast switching characteristics, and robust ESD protection, the ADG1211 series is particularly suited for applications that demand precise and reliable signal routing, such as in data acquisition systems, communication devices, and audio/visual equipment. The "YRUZ-REEL7" designation indicates that this device is offered in a TSSOP package and supplied on a 7-inch reel, optimized for high-volume automated assembly processes, making it an excellent choice for large-scale production requirements.

1. SPST Switch Configuration (S, D, IN): The ADG1211YRUZ-REEL7 incorporates an SPST switch with a source terminal (S), a drain terminal (D), and a logic control input (IN). This arrangement facilitates the selective connection between the S and D terminals, allowing the switch to be opened or closed based on the logic level applied to the IN pin, providing straightforward and efficient signal routing capabilities.

2. Flexible Power Supply Options (VDD, VSS): This device is engineered to accommodate both dual-supply and single-supply operations, with dual-supply voltages typically ranging from ±4.5V to ±16.5V and single-supply voltages from 9V to 16.5V. This flexibility ensures that the ADG1211YRUZ-REEL7 can be seamlessly integrated into various electronic systems with different power supply requirements.

3. Logic Control Input (IN): The state of the SPST switch is determined by the logic level at the IN pin. A high logic level activates the switch, connecting the S and D terminals, while a low logic level deactivates the switch, disconnecting these terminals, thus providing precise control over the signal path.

4. Grounding Strategy (GND): The ADG1211YRUZ-REEL7 includes a ground pin (GND) that must be connected to the system's ground plane. This connection is vital for the stability and optimal performance of the device, ensuring minimal noise interference in the signal routing.

5. Decoupling for Enhanced Stability: To maintain stable operation, it is recommended to place decoupling capacitors close to the VDD and VSS pins. These capacitors help to smooth out any fluctuations in the power supply and filter out noise, contributing to the ADG1211YRUZ-REEL7's reliable performance.

6. Signal Integrity Optimization: Integrating the ADG1211YRUZ-REEL7 into a circuit requires careful PCB layout planning to preserve signal integrity. Key considerations include minimizing the length of the signal traces between the S and D terminals and strategically positioning the device to reduce parasitic capacitances and prevent signal crosstalk.

7. Addressing Thermal Management: Although the ADG1211YRUZ-REEL7 is designed for low power consumption, thermal management should be considered within the system design to ensure the device operates within its specified temperature range, particularly in dense PCB layouts or environments with high ambient temperatures.

8. Versatility Across Applications: The ADG1211YRUZ-REEL7's attributes, including low on-resistance, compatibility with various power supply voltages, and fast switching capabilities, make it a versatile component suitable for a wide array of applications. These range from precision signal routing in medical devices and telecommunications equipment to high-fidelity audio/visual systems.

Incorporating the ADG1211YRUZ-REEL7 into a system design involves a strategic approach to power supply management, logical control, and meticulous PCB layout to fully utilize the capabilities of this SPST switch. By following these design principles, the ADG1211YRUZ-REEL7 can significantly enhance the efficiency, reliability, and performance of systems requiring high-precision signal routing.
