Analog Devices Inc. AD8361ARMZ

Part No.:: AD8361ARMZ

Manufacturer:: Analog Devices Inc.

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: AD8361ARMZ.pdf

Description:: IC RF DETECT 2.5GHZ 8MSOP

In Stock:: 3424

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD8361ARMZ Specifications

Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Active
Frequency:
2.5GHz
RFType:
Cellular, CDMA, W-CDMA
InputRange:
0 ~ 700mV
Accuracy:
±0.25dB
Voltage-Supply:
2.7V ~ 5.5V
Current-Supply:
1.1 mA
MountingType:
Surface Mount

AD8361ARMZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD8361ARMZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD8361ARMZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD8361ARMZ information

Views：

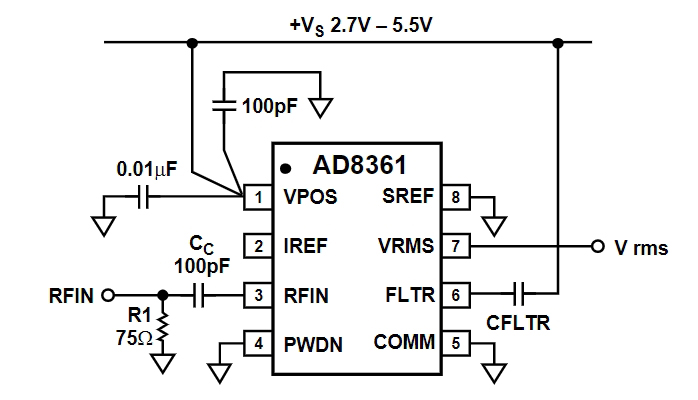

AD8361ARMZ Typical application Circuitry

AD8361ARMZ is a high linearity RF/IF true RMS detector. It is utilized to measure the power of RF signals. One of the characteristics of this chip is that it provides accurate, rapid power detection over a broad frequency range.

Application Scenarios:

AD8361ARMZ is useful for a number of uses, including:

1. Power amplifier modules

2. Receiver signal chains

3. Transmitter power control

4. High-frequency instrument measurements

Parameter Features:

- Dynamic Range: 60 dB

- Operating Frequency Range: 50 MHz to 2.7 GHz

- Output linearity independent of temperature, supply, and frequency

- Low power consumption

Detailed Connection for an Application Scenario - Receiver Signal Chain:

In a receiver signal chain, AD8361ARMZ can be employed as a Radio Frequency Signal Strength Indicator (RSSI).

1. Input: The VIN+ and VIN- of the AD8361ARMZ can be connected to the RF input. They are differential inputs, but if you have a single-ended signal source, one of the pins can be grounded.

2. Power and Ground: Connect the VPOS pin to a 5V power source and the GND pin to the ground.

3. Output: A DC voltage corresponding to the input signal's power will be generated at the VOUT pin.

4. Filtering: Adding a capacitor between VOUT and GND can help reduce output noise. Typically, a capacitor value between 1nF to 10nF is used.

5. Temperature Compensation: The chip's OUTSC pin can be externally connected to a resistor to realize temperature compensation for the output voltage.

Issues to consider during design:

- Matching: To maximize performance, ensure the RF input is well matched with a 50-ohm system.

- Filtering: If there's high-frequency noise in the system, a low-pass filter might be necessary at VOUT. - Power Supply: Ensure the power supply is clean and noise-free. A bypass capacitor can be used at the VPOS pin.

- Temperature: As AD8361ARMZ has a temperature compensation feature, adjustments might be necessary based on the actual application and environment.

In conclusion, when considering the use of AD8361ARMZ, ensure that the circuit design can maximize its performance and meet the requirements of the application.
