Analog Devices Inc. AD7608BSTZ-RL

Part No.:: AD7608BSTZ-RL

Manufacturer:: Analog Devices Inc.

Package:: 64-LQFP

Datasheet:

Description:: IC DAS/ADC 18BIT 200K 64LQFP

In Stock:: 2588

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7608BSTZ-RL Specifications

Package/Case:
64-LQFP
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Data Acquisition System (DAS), ADC
NumberofChannels:
8
Resolution(Bits):
18 b
SamplingRate(PerSecond):
200k
DataInterface:
SPI, DSP
VoltageSupplySource:
Analog and Digital
Voltage-Supply:
2.3V ~ 5.25V, 4.75V ~ 5.25V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD7608BSTZ-RL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7608BSTZ-RL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7608BSTZ-RL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7608BSTZ-RL information

Views：

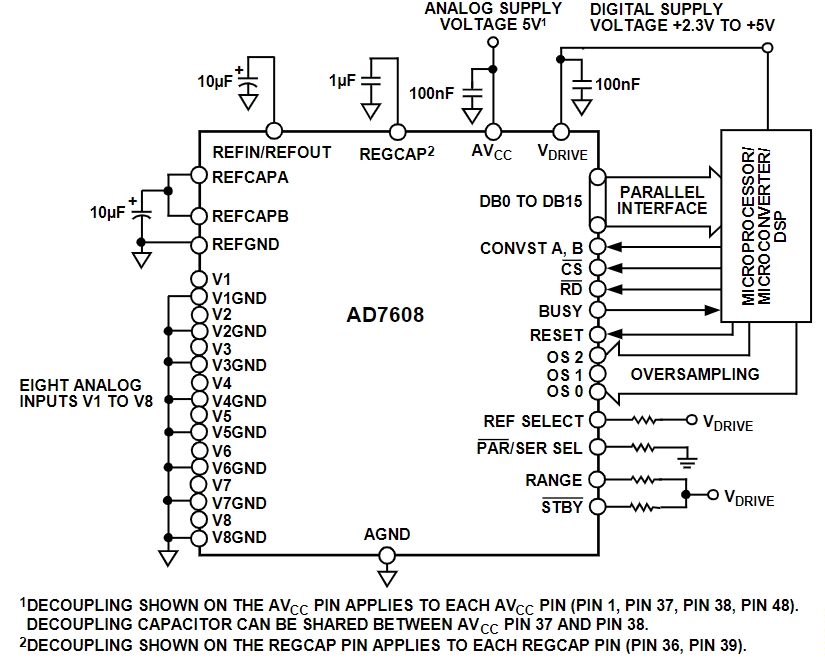

AD7608BSTZ-RL Typical application Circuitry

AD7608BSTZ-RL

A data collection system with eight channels and an 18-bit analog-to-digital converter (ADC) is the AD7608BSTZ-RL. It has features including a low-pass filter for each channel and a programmable gain amplifier (PGA) for high-precision measurements. This qualifies it for use in processes including process control, industrial automation, and medical instruments.

Important characteristics:

1. High Resolution: The AD7608BSTZ-RL has an 18-bit resolution, which makes measurements extremely accurate.

2. Multiple Channels: It can measure multiple signals at once because it has eight analog input channels.

3. Programmable Gain: The PGA allows for gain settings of 1, 2, 4, and 8, enabling the ADC to handle a wide range of input signal amplitudes.

4. Integrated Filters: Each channel includes a low-pass filter to reduce noise and improve signal quality.

Application Scenario: Industrial Process Monitoring

The AD7608BSTZ-RL is a multisensor industrial process monitoring device that measures temperature, pressure, and flow rate, among other characteristics.

Circuit Design:

1. Connections for the power supply: To power the AD7608BSTZ-RL, attach a +5V supply to pin 2 (VCC) and ground to pin 14 (GND). Furthermore, supply pins 49 (AVCC) and 35 (AGND) with a voltage of ±15V to power the analog circuitry.

2. Analog Inputs: Attach the analog signals from the sensors to pins 15 to 22 on the input channels (AIN1 to AIN8). Make that the signals fall into the PGA's chosen input range.

3. Reference Voltage: Connect a precision reference voltage to pin 48 (REF IN) to set the ADC's full-scale range. A typical value is 2.5V for a ±10V input range.

4. Control Signals: Connect the CONVST (conversion start) pin 45 to a digital output of the microcontroller to initiate the conversion process. The BUSY pin 44 indicates when the ADC is busy converting.

5. Data Interface: Connect the serial data output (SDO) pin 37 and serial clock (SCLK) pin 38 to the microcontroller for data transfer. The CS (chip select) pin 36 is used to enable communication with the AD7608BSTZ-RL.

Design Considerations:

- Input Signal Conditioning: Use appropriate signal conditioning to match the sensors' output range to the ADC's input range and to filter out noise.

- Reference Voltage Stability: Choose a stable and low-noise reference voltage to ensure accuracy in measurements.

- Power Supply Decoupling: Place decoupling capacitors close to the power supply pins to reduce noise and ensure stable operation.

- Data Transfer Timing: Ensure proper timing for the control signals and data transfer to avoid communication errors.

In summary, the AD7608BSTZ-RL is a versatile and high-precision ADC suitable for industrial process monitoring. By carefully considering input signal conditioning, reference voltage stability, power supply decoupling, and data transfer timing, a reliable and accurate monitoring system can be designed using the AD7608BSTZ-RL.
