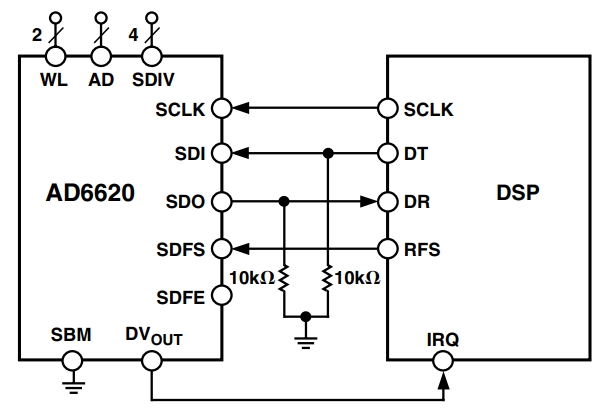

AD6620ASZ Typical application Circuitry

AD6620ASZ

The AD6620ASZ is a digital signal processing (DSP) integrated circuit designed for digital downconversion and filtering in communication systems. It is commonly used in applications such as wireless base stations, software-defined radios, and other communication receivers where precise signal processing is required.

Key Features of the AD6620ASZ:

1. Digital Downconversion: The AD6620ASZ is optimized for converting high-frequency digital signals to lower frequencies for easier processing.

2. Programmable Decimation Filters: It features programmable decimation filters to reduce the data rate and improve the signal-to-noise ratio.

3. Multiple Channels: The AD6620ASZ supports multiple independent channels for the simultaneous processing of different signals.

4. High-Speed Interface: Equipped with a high-speed interface for seamless integration into communication systems.

Application Scenario: Signal Processing in Software-Defined Radios

In this scenario, the AD6620ASZ is used in a software-defined radio (SDR) for digital downconversion and filtering of received signals.

Detailed Circuit Connection:

1. Power Supply Connection: Apply +15V to pin 14 (V+) and ground pin 7 (GND) of the AD6620ASZ to power the chip.

2. Input Signal: Connect the digital input signal from the SDR's front end to the input pins of the AD6620ASZ.

3. Filter Configuration: Program the decimation filters of the AD6620ASZ through the control interface to match the desired signal bandwidth and decimation rate.

4. Output Connection: The downconverted signal is available at the output pins of the AD6620ASZ and can be connected to the demodulation and decoding circuitry.

5. Clocking: Provide a clock signal to the AD6620ASZ to synchronize the downconversion process.

6. Grounding: Ensure proper grounding of the AD6620ASZ to minimize noise and interference.

Design Considerations:

- Input Signal Integrity: Ensure that the input signal is within the specifications of the AD6620ASZ to prevent distortion or clipping.

- Filter Settings: Carefully configure the decimation filters to optimize the signal-to-noise ratio and data rate for the subsequent processing stages.

- Clock Stability: Use a stable and accurate clock source to ensure precise downconversion and synchronization.

- Thermal Management: Implement adequate cooling and thermal management to maintain the performance of the AD6620ASZ under varying operating conditions.

By employing the AD6620ASZ in a software-defined radio, efficient digital downconversion and filtering can be achieved, enabling effective demodulation and decoding of the received signal. Attention to circuit design and component selection will ensure the reliability and performance of the signal processing system.
