Name: AD590MF
Brand: Analog Devices Inc.
SKU: AD590MF
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD590MF

Part No.:: AD590MF

Manufacturer:: Analog Devices Inc.

Package:: 2-CFlatPack

Datasheet:: AD590MF.pdf

Description:: SENSOR ANALOG -55C-150C 2FLATPK

In Stock:: 2012

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD590MF Specifications

Packaging:
Bulk
Series:
-
ProductStatus:
Active
SensorType:
Analog, Local
SensingTemperature-Local:
-55°C ~ 150°C
SensingTemperature-Remote:
-
OutputType:
Analog Current
Voltage-Supply:
4V ~ 30V
Resolution:
-
Features:
-
Accuracy-Highest(Lowest):
±0.5°C
TestCondition:
25°C
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Surface Mount

AD590MF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD590MF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD590MF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD590MF information

Views：

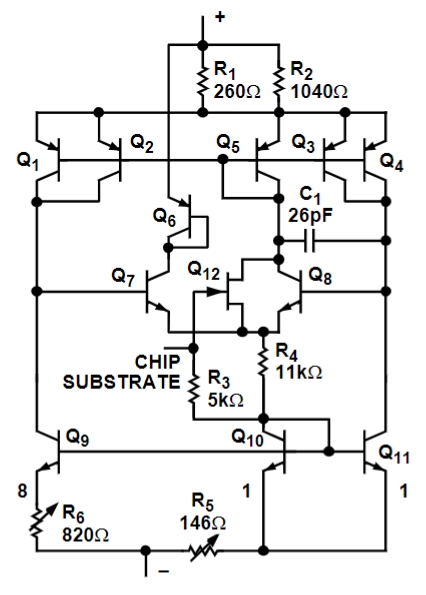

AD590MF Typical application Circuitry

AD590MF

The two-terminal integrated circuit temperature transducer, AD590MF, produces an output current proportionate to absolute temperature. This device is intended for a variety of temperature sensing applications where dependability and accuracy are crucial.

Application Scenarios

One common application for the AD590MF is in temperature control systems within industrial processes. Here, the AD590MF can be used to accurately monitor temperatures and provide feedback for controlling heating or cooling elements.

Parameter Features

AD590MF is characterized by its:

- Linear Current Output: 1 µA/K, providing a direct readout of temperature with no need for additional signal conditioning.

- Wide Temperature Range: Typically capable of measuring temperatures from -55°C to +150°C.

- Two-Terminal Device: Simplifies its integration into systems, requiring only a power supply and a method to measure current.

- Accuracy: Offers precision temperature measurement with minimal calibration.

Specific Circuit Connection - Industrial Temperature Control System

Integrating AD590MF into an industrial temperature control system involves a straightforward setup, yet requires attention to detail to ensure accuracy and reliability:

- Power Supply Connection: The AD590MF is connected in series with a power supply and a resistor to convert its current output to a voltage. Connect one terminal of AD590MF to a positive power supply (typically +5V to +30V, depending on the system requirements) and the other terminal to one end of a precision resistor, with the other end of the resistor connected to ground.

- Output Voltage Measurement: The voltage across the resistor is proportional to the temperature.This voltage can be directly measured for digital processing using an ADC (Analog to Digital Converter). The choice of the resistor value depends on the desired voltage range and the ADC input specifications.

- Choosing the Resistor Value: For example, with a supply voltage of +15V and an ADC that operates at a 0-5V input, a resistor value that provides a suitable voltage range across the expected temperature span must be selected. A common choice is a resistor that results in a maximum voltage of 5V at the highest temperature to be measured.

Design Considerations

When designing with AD590MF, several factors need to be carefully considered:

- Power Supply Stability: The accuracy of the temperature measurement can be affected by variations in the power supply voltage. A stable power supply should be used, and decoupling capacitors may be added close to the AD590MF to minimize noise.

- Resistor Selection: The resistor used to convert the AD590MF current output to a voltage should be a precision resistor with a low temperature coefficient to minimize errors in temperature measurement.

- Circuit Layout: Careful layout of the AD590MF and associated components is important to reduce the influence of external heating or cooling that could affect the temperature measurement.

- Calibration: Although the AD590MF is factory calibrated, system-level calibration might be necessary to account for any additional errors introduced by the power supply, resistor tolerance, or ADC.

By adhering to these design principles and utilizing the AD590MF in an industrial temperature control system, developers can achieve precise temperature monitoring and control, essential for maintaining optimal conditions in industrial processes.
