Analog Devices Inc. AD2S83APZ

Part No.:: AD2S83APZ

Manufacturer:: Analog Devices Inc.

Package:: 44-LCC (J-Lead)

Datasheet:: AD2S83APZ.pdf

Description:: IC R/D CONVERTER 10/12/14/16BIT

In Stock:: 2223

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD2S83APZ Specifications

Package/Case:
44-LCC (J-Lead)
Packaging:
Tube
Series:
-
ProductStatus:
Active
Type:
R/D Converter
NumberofChannels:
2
Resolution(Bits):
10, 12, 14, 16 b
SamplingRate(PerSecond):
-
DataInterface:
Parallel
VoltageSupplySource:
Analog and Digital, Dual ±
Voltage-Supply:
±12V, 5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD2S83APZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD2S83APZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD2S83APZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD2S83APZ information

Views：

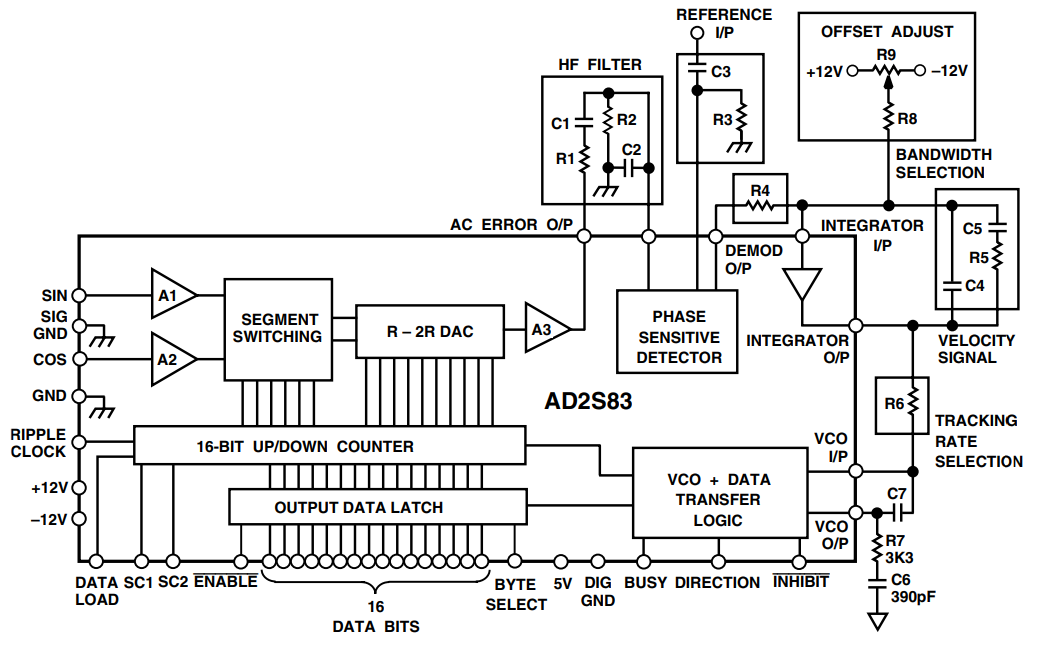

AD2S83APZ Typical application Circuitry

AD2S83APZ

The AD2S83APZ is a high-performance, variable resolution, monolithic Resolver-to-Digital Converter (RDC) from Analog Devices, designed to decode angle position and velocity data from resolver sensors. It is part of the AD2S83 series, known for its exceptional accuracy, reliability, and ease of integration in motion control and positioning systems. The gadget is especially useful for robotics, automotive systems, and industrial automation applications where accurate angle measurements are essential. The AD2S83APZ integrates on-chip digital filters and a tracking resolver-to-digital conversion methodology, ensuring high noise immunity and robust performance in harsh environments.

1. Power Supply Voltage (VDD, VSS Pins): The AD2S83APZ operates on a dual power supply, with a typical supply voltage of ±15 volts, but it can function within a range of ±12 volts to ±16 volts. The positive supply voltage should be linked to the VDD pin, and the negative supply voltage should be connected to the VSS pin. This dual-supply configuration enables the AD2S83APZ to handle the analog signal processing effectively and to power the internal digital logic.

2. Resolver Input Pins (SIN+, SIN-, COS+, COS- Pins): The device receives the sine and cosine signals from the resolver sensor through these pins. SIN+ and SIN- are dedicated to the sine input signal, while COS+ and COS- are for the cosine input signal. Proper conditioning of these signals is crucial for accurate angle and velocity decoding by the AD2S83APZ.

3. Reference Input Pin (REFIN Pin): The REFIN pin is used to input the reference signal from the resolver. This reference signal serves as a timing basis for demodulating the resolver's sine and cosine signals, essential for accurate conversion of the resolver's angular position to a digital format.

4. Digital Output Pins (D0-D11, MSB, SIGN Pins): The AD2S83APZ provides a 12-bit digital output representing the angular position measured by the resolver. The D0-D11 pins output the binary angle data, the MSB (Most Significant Bit) pin indicates the sign of the velocity, and the SIGN pin provides the direction of rotation. These outputs can be interfaced with a microcontroller or digital signal processor for further processing or control actions.

5. Control and Configuration Pins (INHIBIT, BCD/BINARY, DOS/DIS, FSEL0, FSEL1 Pins): The INHIBIT pin is used to disable the tracking converter temporarily. The BCD/BINARY pin selects the output format (Binary Coded Decimal or pure binary). The DOS/DIS pin sets the dynamic transfer function of the tracking loop, and the FSEL0 and FSEL1 pins are used to select the bandwidth of the internal filters, allowing customization of the tracking performance and noise immunity based on application requirements.

6. Clock and Excitation Pins (CLKIN, EXCOUT Pins): CLKIN is the input for the external clock signal that dictates the tracking rate of the converter. EXCOUT provides the excitation signal for the resolver, typically at a frequency of 10 kHz, ensuring the resolver's sine and cosine signals are generated at the correct frequency for processing by the AD2S83APZ.

The AD2S83APZ stands out for its ability to deliver precise and reliable resolver-to-digital conversion, making it an ideal choice for applications demanding high accuracy in angular position and velocity measurements. Its integration of on-chip filtering and configurable tracking performance, coupled with a robust power supply range and versatile signal inputs, ensures seamless implementation in complex industrial and automotive systems, providing a reliable solution for sophisticated motion control challenges.
