Broadcom Limited ACPL-247-500E

Part No.:: ACPL-247-500E

Manufacturer:: Broadcom Limited

Package:: 16-SOIC (0.173, 4.40mm Width)

Datasheet:: ACPL-247-500E.pdf

Description:: OPTOISO 3KV 4CH TRANS 16SOIC

In Stock:: 3162

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ACPL-247-500E Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
NumberofChannels:
4
Voltage-Isolation:
3000Vrms
CurrentTransferRatio(Min):
100% @ 5mA
CurrentTransferRatio(Max):
600% @ 5mA
TurnOn/TurnOffTime(Typ):
3µs, 3µs
Rise/FallTime(Typ):
2µs, 3µs
InputType:
DC
OutputType:
Transistor
Voltage-Output(Max):
80V
Current-Output/Channel:
50mA
Voltage-Forward(Vf)(Typ):
1.2V
Current-DCForward(If)(Max):
50 mA
VceSaturation(Max):
400mV
OperatingTemperature:
-55°C ~ 110°C
MountingType:
Surface Mount

ACPL-247-500E this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ACPL-247-500E price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ACPL-247-500E to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ACPL-247-500E information

Views：

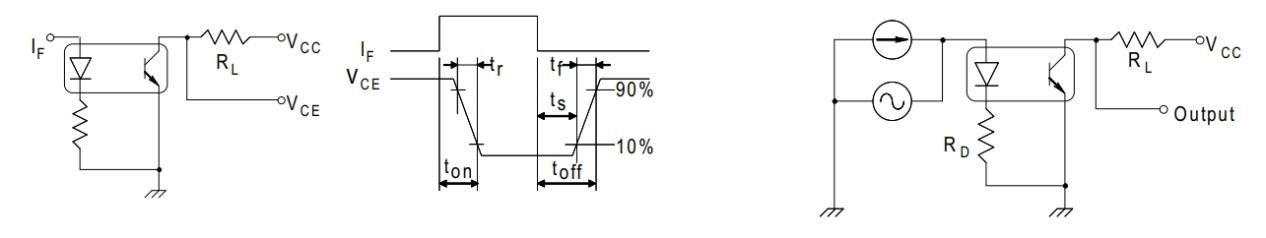

ACPL-247-500E Typische Anwendungsschaltung

ACPL-247-500E

The ACPL-247-500E is an optocoupler, often known as an optoisolator or photocoupler. Optocouplers are devices that utilize light waves to transmit signals between isolated circuits, ensuring electrical isolation while permitting data transmission.

Functionality Overview:

The ACPL-247-500E enables transmission of information between two circuits without a direct electrical connection, ensuring that potential electrical faults in one section don't affect the other.

Application Domains:

1. Switching power supplies.

2. Motor controllers.

3. Industrial data acquisition systems.

4. Communication interfaces where isolation is essential, such as RS232, RS485.

5. Digital isolation for A/D, D/A conversion.

Key Characteristics:

- Isolation Voltage: The maximum voltage the optocoupler can withstand without breakdown.

- Transfer Rate: How swiftly it can transmit data between the input and output.

- Current Transfer Ratio (CTR): efficiency is indicated by the ratio of output current to input current.

- Response Time: The duration taken for the output to respond after receiving an input signal.

Circuit Integration (Using a Motor Controller as an Example):

1. Input Side Connection: The ACPL-247-500E has an LED as its input. The microcontroller's PWM (Pulse Width Modulation) output should be linked to the LED's anode, and a current-limiting resistor should connect the LED's cathode to ground.

2. Output Side Connection: The output side has a phototransistor. Connect the collector of this transistor to the Vcc (positive supply voltage). The emitter connects to the gate of a MOSFET or IGBT, which then drives the motor.

3. Power Supply: Ensure separate power supplies for both input and output sides to maintain isolation. These power sources must remain within the recommended operating voltage of the ACPL-247-500E.

4. Grounding: It's paramount to keep the grounds of the input and output circuits isolated from each other to maintain the protective function of the optocoupler.

Design Consideration Checklist:

- Current Limitation: Choose an apt current-limiting resistor for the input LED to prevent potential damage while ensuring efficient signal transmission.

- Optocoupler Positioning: Place the ACPL-247-500E as close as feasible to the microcontroller's PWM output and the MOSFET's gate to minimize the effects of external noise.

- Bypass Capacitors: Incorporate a bypass capacitor near the Vcc pin to curb high-frequency noise.

- Safety Margins: Always operate the ACPL-247-500E well below its maximum ratings to ensure long-term reliability.

By judiciously embedding the ACPL-247-500E in motor control systems or similar applications, one can guarantee the system's resilience against potential electrical faults while preserving precise command transmission.
