What is the Additional Feature ?

Name: A4988SETTR-T
Brand: Allegro MicroSystems
SKU: A4988SETTR-T
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Allegro MicroSystems A4988SETTR-T

Part No.:: A4988SETTR-T

Manufacturer:: Allegro MicroSystems

Package:: 28-VFQFN Exposed Pad

Datasheet:: A4988SETTR-T.pdf

Description:: IC MTR DRVR BIPOLAR 3-5.5V 28QFN

In Stock:: 3933

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

A4988SETTR-T Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
MotorType-Stepper:
Bipolar
MotorType-ACDC:
-
Function:
Driver - Fully Integrated, Control and Power Stage
OutputConfiguration:
Half Bridge (4)
Interface:
Logic
Technology:
DMOS
StepResolution:
1, 1/2, 1/4, 1/8, 1/16
Applications:
General Purpose
Current-Output:
2A
Voltage-Supply:
3V ~ 5.5V
Voltage-Load:
8V ~ 35V
OperatingTemperature:
-20°C ~ 150°C (TJ)
MountingType:
Surface Mount

A4988SETTR-T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including A4988SETTR-T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for A4988SETTR-T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

A4988SETTR-T information

Views：

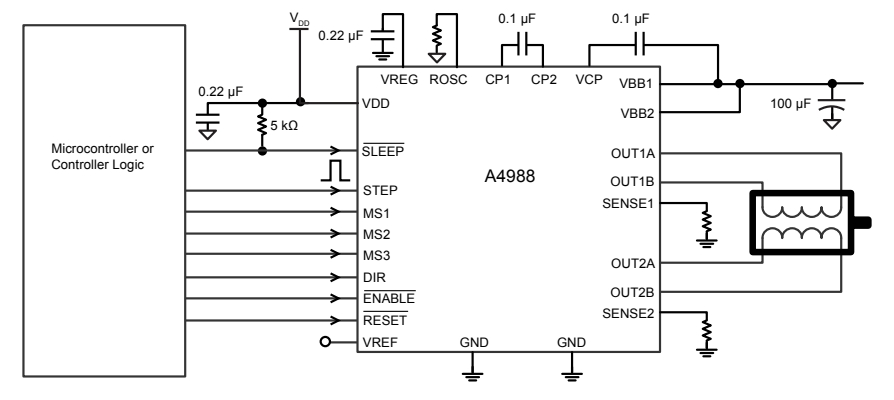

A4988SETTR-T Typische Anwendungsschaltung

A4988SETTR-T

A microstepping driver with an integrated translator and overcurrent protection is the A4988SETTR-T. This device is engineered for driving bipolar stepper motors.

Applications:

1. 3D Printers: Ensures precise control of the print head's movements.

2. CNC Machines: Manages the accurate movement of the tool or spindle.

3. Automated Equipment: Useful in devices that need exact position control.

Key Features:

1. Voltage Operation: Operates up to 35 V.

2. Microstepping: whole, half, quarter, and sixteenth-step modes are supported.

3. Overcurrent Protection: Protects the device against high current damages.

4. Built-in Translator: Simplifies stepper motor control with easy step and direction control interface.

Circuit Connection for CNC Machine:

1. Power Supply:

- VMOT: Connect this pin to the motor voltage, which can range from 8 V to 35 V based on the stepper motor's specifications.

- GND: Link this to the system's ground.

2. Motor Connections:

- 1A, 1B, 2A, 2B: These pins are directly connected to the corresponding coils of the bipolar stepper motor.

3. Control Logic:

- STEP: This pin receives pulse signals to drive the motor steps. Attach to a microcontroller or pulse generator.

- DIR: Controls the rotation direction. Setting HIGH spins the motor one way, while LOW turns it the other.

- MS1, MS2, MS3: The microstepping mode is chosen by these pins. For example, setting MS1 HIGH and MS2 & MS3 LOW configures the driver for half-step mode.

4. Additional Inputs:

- VDD: Power this with a 3.3 V or 5 V supply for logic.

- ENABLE: This active-low pin, when set to LOW, will enable the motor. Connect to GROUND if always active.

- RESET & SLEEP: Reset and Sleep control pins. If not used, bridge them together and link to VDD.

Design Considerations:

1. Decoupling: Place capacitors close to the A4988SETTR-T VMOT and VDD pins. This ensures noise reduction in the power supply.

2. Heat Dissipation: The A4988SETTR-T might generate significant heat during operation. Proper PCB layout, thermal pads, or even heat sinks can help manage temperature.

3. Adjusting Current: The A4988SETTR-T current delivered to the motor can be tweaked by using a potentiometer on the REF pin, ensuring the motor gets required torque without overheating.

4. Protective Measures: Ensure protective diodes are in place between the motor output pins and both VMOT and GROUND. This shields against voltage spikes.

In summary, the A4988SETTR-T is a reliable choice for controlling bipolar stepper motors across numerous applications. With appropriate design considerations, its features can be optimized for applications like CNC machines, ensuring precision and durability.
