Name: A4982SLPTR-T
Brand: Allegro MicroSystems
SKU: A4982SLPTR-T
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Allegro MicroSystems A4982SLPTR-T

Part No.:: A4982SLPTR-T

Manufacturer:: Allegro MicroSystems

Package:: 24-TSSOP (0.173, 4.40mm Width) Exposed Pad

Datasheet:: A4982SLPTR-T.pdf

Description:: IC MTR DRV BIPOLR 3-5.5V 24TSSOP

In Stock:: 2824

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

A4982SLPTR-T Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
MotorType-Stepper:
Bipolar
MotorType-ACDC:
-
Function:
Driver - Fully Integrated, Control and Power Stage
OutputConfiguration:
Half Bridge (4)
Interface:
Logic
Technology:
DMOS
StepResolution:
1, 1/2, 1/4, 1/16
Applications:
General Purpose
Current-Output:
2A
Voltage-Supply:
3V ~ 5.5V
Voltage-Load:
8V ~ 35V
OperatingTemperature:
-20°C ~ 150°C (TJ)
MountingType:
Surface Mount

A4982SLPTR-T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including A4982SLPTR-T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for A4982SLPTR-T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

A4982SLPTR-T information

Views：

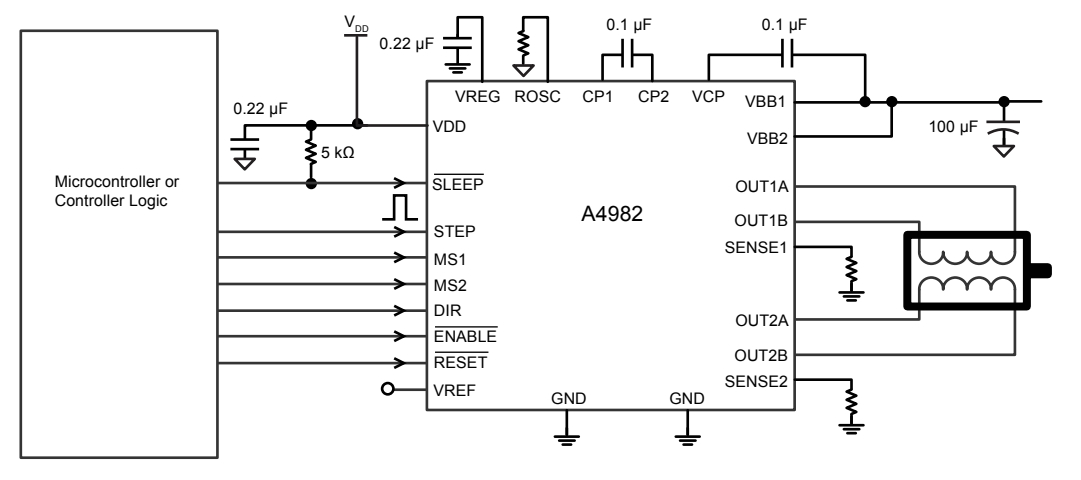

A4982SLPTR-T Typische Anwendungsschaltung

A4982SLPTR-T

The A4982SLPTR-T is a microstepping DMOS motor driver with built-in translator. With an output drive capacity of up to 35 V and 2 A, it is intended to control bipolar stepper motors in full-, half-, quarter-, and sixteenth-step modes.

Applications:

1. 3D Printers: for the precise placement of the print head.

2. CNC Machines: In controlling the spindle and the movement of the tool.

3. Robotic Systems: For articulation and movement control.

Key Features:

1. Voltage Operation: Ranges up to 35 V.

2. Microstepping: whole, half, quarter, and sixteenth-step modes are available.

3. Protection Features: Overcurrent and thermal shutdown protection.

4. Built-in Translator: Simplifies stepper motor control.

Circuit Connection for a 3D Printer:

1. Power Connections:

- VMOT: Connect this pin to the motor power supply, ideally within 12 V to 24 V for most 3D printers.

- GND: Attach to the system's common ground.

2. Motor Outputs:

- 2B, 2A, 1A, 1B: These pins should be connected directly to the two coils of the bipolar stepper motor.

3. Control Inputs:

- STEP: This pin advances the motor one microstep when brought HIGH. It could be connected to a pulse generator or microcontroller.

- DIR: Determines the direction of motor rotation. Set to HIGH for one direction and LOW for the opposite.

- MS1 & MS2: For setting the microstep mode. For instance, both set to LOW for full-step mode.

4. Other Important Pins:

- VDD: Connect to a 3.3 V or 5 V source for logic power.

- ENABLE: This pin can be brought LOW to enable the motor. If unused, connect to GROUND.

- RST & SLP: Reset and Sleep pins. Tie them together and connect to VDD if both features are not used.

Design Considerations:

1. Decoupling Capacitors: Vital to have them close to the A4982SLPTR-T VMOT and VDD pins to ensure noise-free operation.

2. Thermal Management: The A4982SLPTR-T can get hot under intense operations. It's crucial to ensure that the PCB layout supports heat dissipation, and in high current applications, a heat sink might be necessary.

3. Current Setting: Use a potentiometer on the REF pin to adjust the current limit, crucial for preventing motor overheating and ensuring torque.

4. Protection: Back-EMF diodes should be in place, between the A4982SLPTR-T motor output pins and both VMOT and GROUND, to protect against voltage spikes.

In wrapping up, the A4982SLPTR-T emerges as a versatile and robust solution for controlling bipolar stepper motors in varied applications, with a focus on precision and safety. Through apt design and protective measures, its functionality can be optimized for specific needs, like in 3D printers.
