Name: A3967SLBTR-T
Brand: Allegro MicroSystems
SKU: A3967SLBTR-T
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Allegro MicroSystems A3967SLBTR-T

Part No.:: A3967SLBTR-T

Manufacturer:: Allegro MicroSystems

Package:: 24-SOIC (0.295, 7.50mm Width)

Datasheet:: A3967SLBTR-T.pdf

Description:: IC MTR DRV BIPOLAR 3-5.5V 24SOIC

In Stock:: 2419

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

A3967SLBTR-T Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
MotorType-Stepper:
Bipolar
MotorType-ACDC:
-
Function:
Driver - Fully Integrated, Control and Power Stage
OutputConfiguration:
Half Bridge (4)
Interface:
Logic
Technology:
Bipolar
StepResolution:
1, 1/2, 1/4, 1/8
Applications:
General Purpose
Current-Output:
750mA
Voltage-Supply:
3V ~ 5.5V
Voltage-Load:
4.75V ~ 30V
OperatingTemperature:
-20°C ~ 150°C (TJ)
MountingType:
Surface Mount

A3967SLBTR-T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including A3967SLBTR-T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for A3967SLBTR-T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

A3967SLBTR-T information

Views：

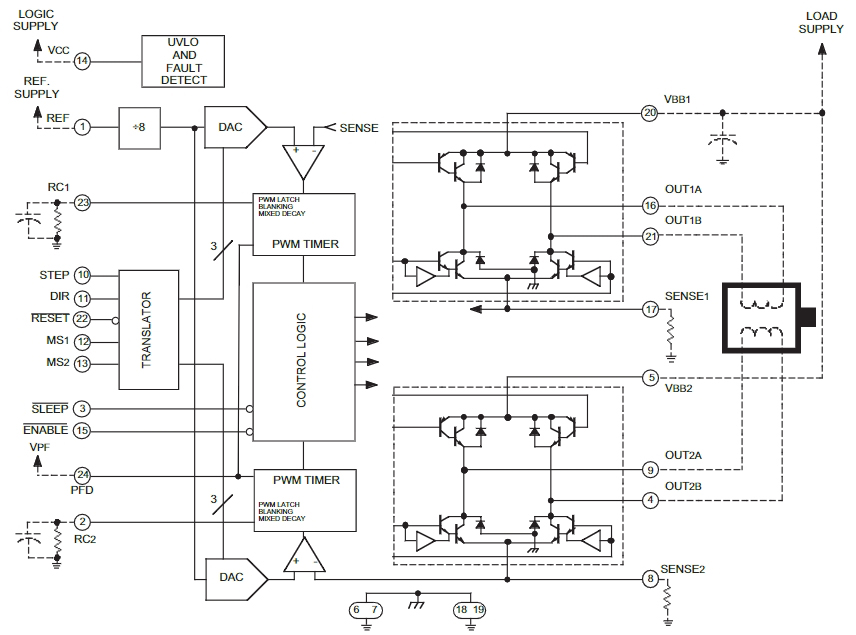

A3967SLBTR-T Typical application Circuitry

A3967SLBTR-T

A3967SLBTR-T is an integrated chip designed for driving bipolar stepper motors, widely used in fields requiring precise motor control such as printers, scanners, CNC machines, and robotics. This chip is favored for its simple control interface, efficient current control, and microstepping capability.

Application Scenario:

In CNC machines, A3967SLBTR-T provides precise motor control, enabling high-precision positioning and smooth motion of the machine.

Parameter Features:

- Supply Voltage Range: 3V to 5.5V

- Maximum Phase Current: 750mA

- Microstepping Resolution: Up to 1/8 step

- Built-in translator simplifies stepper motor control

Specific Circuit Connection

Power Supply Connection

First, connect the VDD pin of A3967SLBTR-T (usually marked as pin 8) to a +5V power source, and the GND pins (usually pins 4 and 9) to ground. This provides the necessary operating power for the chip.

Motor Connection

Connect one end of the stepper motor coils to OUT1A (pin 2) and OUT1B (pin 3) of A3967SLBTR-T, and the other end to OUT2A (pin 11) and OUT2B (pin 14). This completes the basic motor connection.

Control Signals

Connect two output pins of the microcontroller to STEP (pin 10) and DIR (pin 13) of A3967SLBTR-T. The STEP pin receives pulse signals to drive the motor step by step, while the DIR pin controls the direction of rotation.

Microstepping Configuration

To enable microstepping, connect MS1 (pin 6) and MS2 (pin 7) of A3967SLBTR-T to appropriate logic levels. By setting the states of these pins to high or low, full-step, half-step, quarter-step, or eighth-step modes can be selected.

Design Considerations

- Current Limiting: Adjusting the current-limiting potentiometer on A3967SLBTR-T (usually located near the chip) prevents the stepper motor from overheating, thus extending its lifespan.

- Voltage Matching: Ensure that the rated voltage of the stepper motor matches the supply voltage of the driver to avoid damage to the motor or driver.

- Heat Dissipation: Under high load or high-frequency driving conditions, A3967SLBTR-T may generate significant heat. Additional heat dissipation measures such as heat sinks or fans may be necessary.

- Signal Integrity: When designing control signal wiring, consider the integrity of signals to avoid noise and interference introduced by long-distance wiring.

Through the detailed explanation above, we can observe the robust functionality and flexibility of A3967SLBTR-T in precision motor control applications. By considering factors such as current control, power supply matching, heat dissipation, and signal integrity during design, system stability and performance can be effectively enhanced.
