Setting out on a travel with the Arduino Mega 2560 Rev3 can be both energizing and overpowering, particularly for tenderfoots who are looking to extend their information past fundamental hardware. This microcontroller board offers a riches of highlights that make it perfect for complex ventures. In any case, to induce the foremost out of it, you'll ought to get it its capabilities, how to set it up, and some basic traps that can make your involvement smoother. This direct will stroll you thru the whole lot you would love to understand to induce begun.

Understanding the Arduino Mega 2560 Rev3

The Arduino Mega 2560 Rev3 can be a succesful microcontroller board primarily based totally at the ATmega2560. It`s recognised for having greater I/O pins, memory, and manipulate than different Arduino sheets, making it idealize for ventures that require greater inputs and yields, like 3-d printers and mechanical technology. The board has 54 advanced I/O pins, 16 analog inputs, and a bigger memory measure, giving you the adaptability to handle more complex errands.

Key Highlights

The Arduino Mega 2560 Rev3 comes with a assortment of highlights that set it separated from other sheets. A few of the standout highlights incorporate:

54 Computerized I/O Pins: These pins can be utilized for different advanced operations, such as turning on LEDs, perusing switches, and more.

16 Analog Inputs: These inputs are crucial for reading sensors that give variable voltage output, such as temperature sensors or light sensors.

4 Serial Ports: Not at all like the standard Arduino, which has as it were one serial harbour, the Mega offers four, making it easier to associate different serial gadgets.

256 KB of Streak Memory: This large memory estimate permits you to store more complex programs without stressing around running out of space.

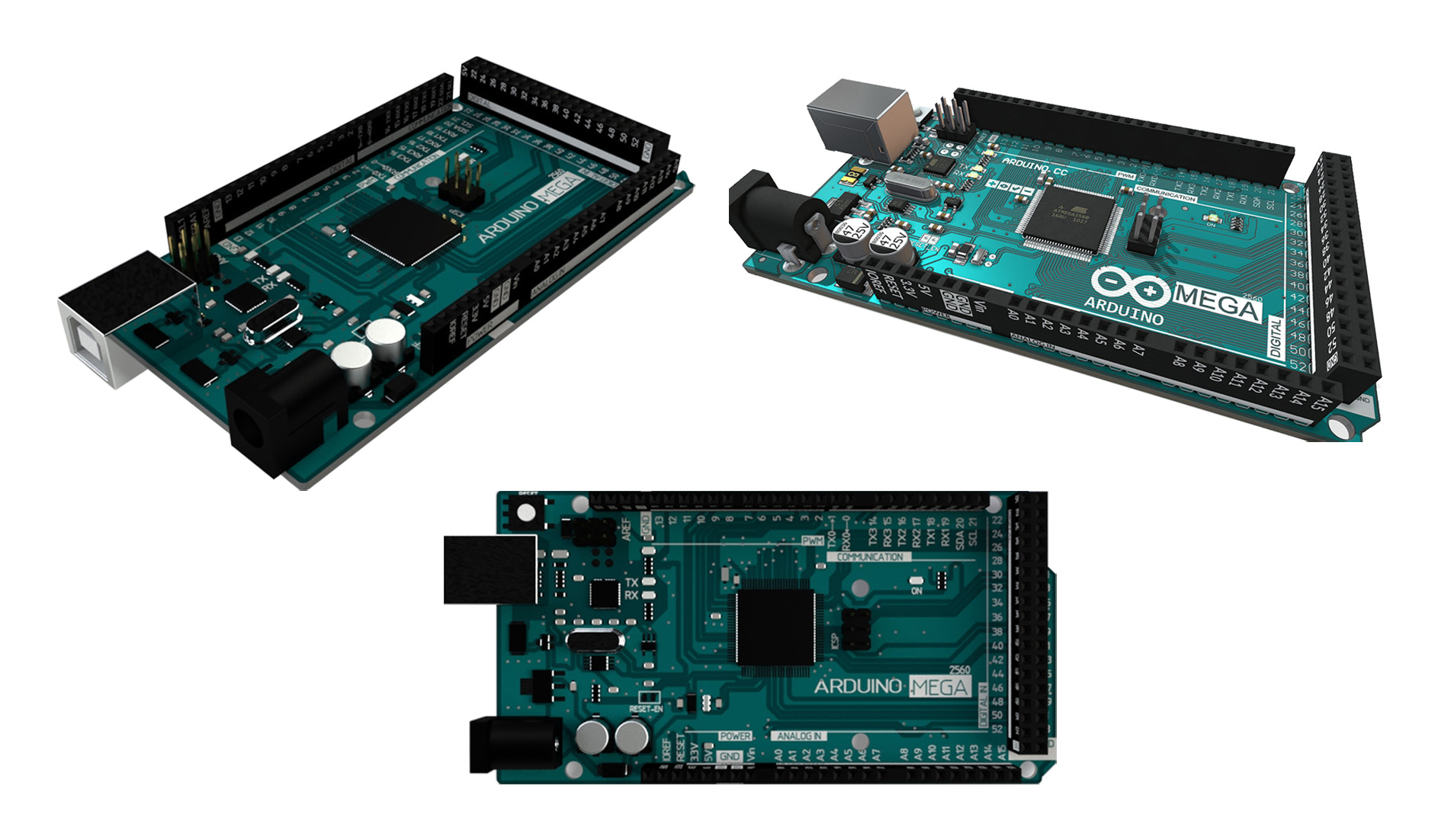

Arduino Mega 2560 Rev3 3D Model

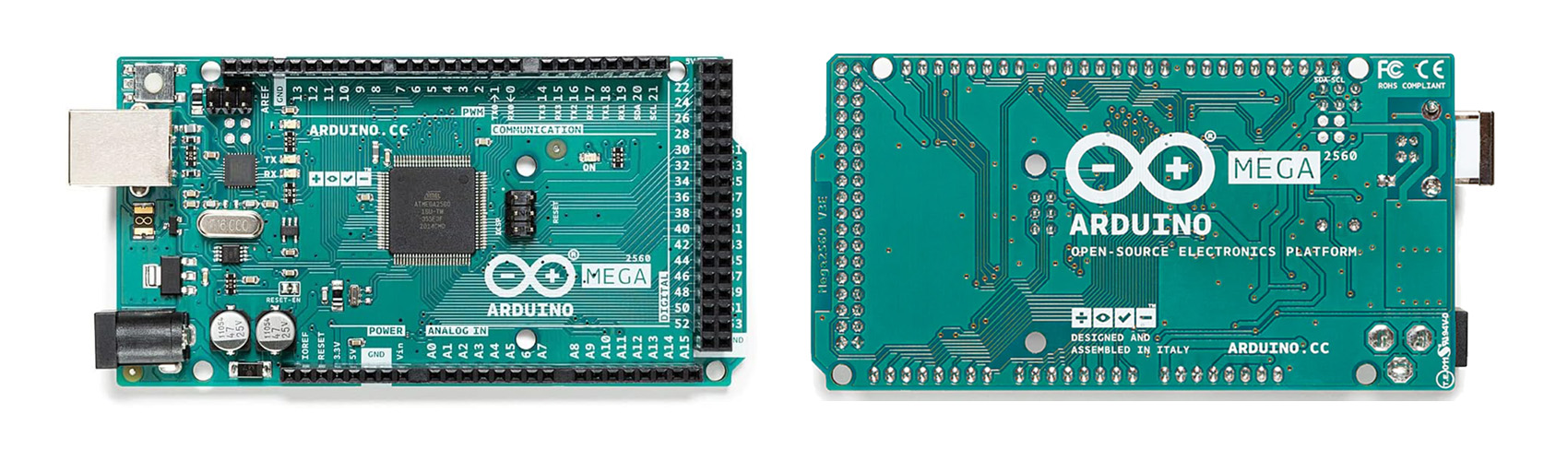

Arduino Mega 2560 Rev3 features

Setting Up the Arduino Mega 2560 Rev3

Setting up your Arduino Mega 2560 Rev3 for the primary time may be a direct prepare, but it's fundamental to take after each step carefully to dodge issues later on.

1. Introduce the Arduino IDE

Some time recently you'll begin programming your board, you wish to introduce the Arduino Coordinates Advancement Environment (IDE). This computer program permits you to compose code, transfer it to your board, and screen the yield.

Download the Arduino IDE: Visit the official Arduino site and download the most recent form of the IDE for your working framework.

Introduce the IDE: Take after the on-screen informational to introduce the program. Once installed, open the IDE to urge begun.

2. Interface Your Arduino Mega 2560 Rev3

With the IDE installed, it's time to associate your Arduino Mega 2560 Rev3 to your computer.

USB Cable Association: Utilize the USB cable given along with your board to associate it to your computer. The board ought to control up quickly, demonstrated by the lit-up LEDs.

Select Your Board: Within the Arduino IDE, go to the 'Tools' menu, at that point 'Board,' and select 'Arduino Mega 2560 or Mega ADK.'

Select Your Harbour: Still beneath the 'Tools' menu, click on 'Port' and select the right harbour that your board is associated to.

3. Transfer Your To begin with Portray

Presently that your board is associated, it's time to transfer your to begin with program, or 'sketch.'

Open a Sketch: The Arduino IDE comes with built-in examples. Go to 'File' > 'Examples' > '01.Basics' and choose 'Blink.' This sketch will blink the onboard LED.

Upload the Sketch: Click the upload button (an arrow pointing to the right) in the IDE. The code will compile and upload to your board. If successful, you'll see the onboard LED start blinking.

Arduino Mega Dimensions and Form Factor

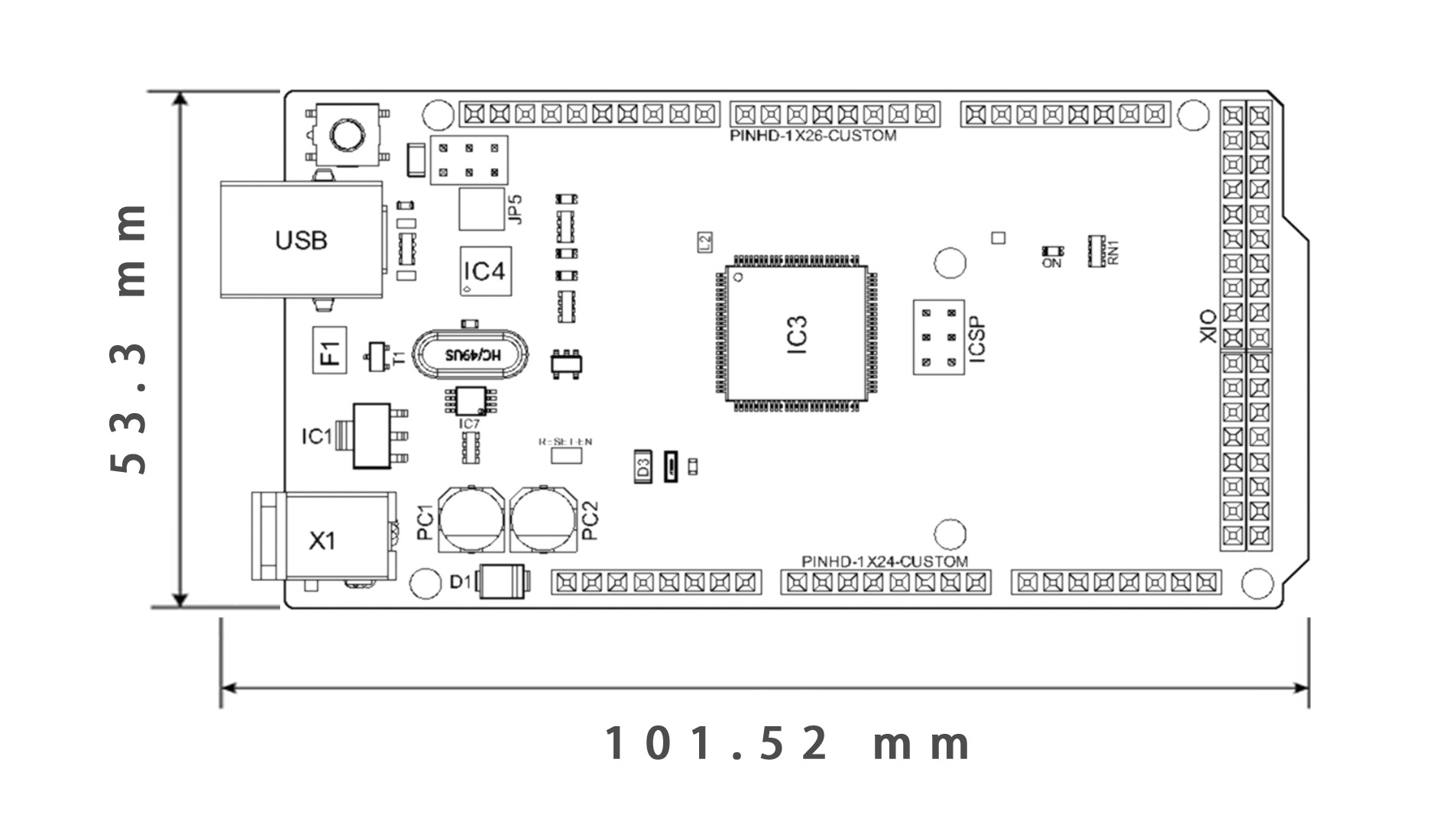

One of the special perspectives of the Arduino Mega 2560 Rev3 is its estimate. The board measures 101.52 mm x 53.3 mm, which is essentially bigger than the more common Arduino Uno. This additional space suits the extra I/O pins and bigger memory, but it moreover implies you'll got to guarantee your extend has sufficient physical space to house the board.

Contemplations for Extend Walled in areas

When arranging your venture, it's critical to keep the Arduino Mega dimensions in intellect, particularly in the event that you're planning or obtaining an walled in area. The larger size may not fit standard Arduino walled in areas, so you will got to explore for one particularly planned for the Mega or construct a custom walled in area.

Investigating the Arduino Mega 2560 Revision 3

The Arduino Mega 2560 Modification 3 is the most recent form of the board, and it comes with a few changes over past adaptations. Understanding these upgrades can assist you utilize the board more successfully.

Progressed Shield Compatibility

One of the key enhancements within the Arduino Mega 2560 Revision 3 is superior compatibility with shields. The board incorporates an SDA and SCL stick close the AREF stick and two other unused pins put close the RESET stick. This improvement guarantees that more up to date shields are consistent with the Mega without the require for broad rewiring.

Vigorous Control Taking care of

The Arduino Mega 2560 Modification 3 too incorporates an progressed control supply framework. It can handle more current and has superior security against brief circuits, making it more dependable for long-term ventures that require a steady control source.

Exploring the Arduino Mega 2560 Datasheet

To completely use the control of the Arduino Mega 2560 Rev3, it's basic to get it its specialized determinations. The Arduino Mega 2560 datasheet is your go-to resource for this data. It contains point by point data around the board's engineering, stick arrangements, and electrical characteristics.

Key Sections to Review

While the datasheet is comprehensive, a few sections are particularly important:

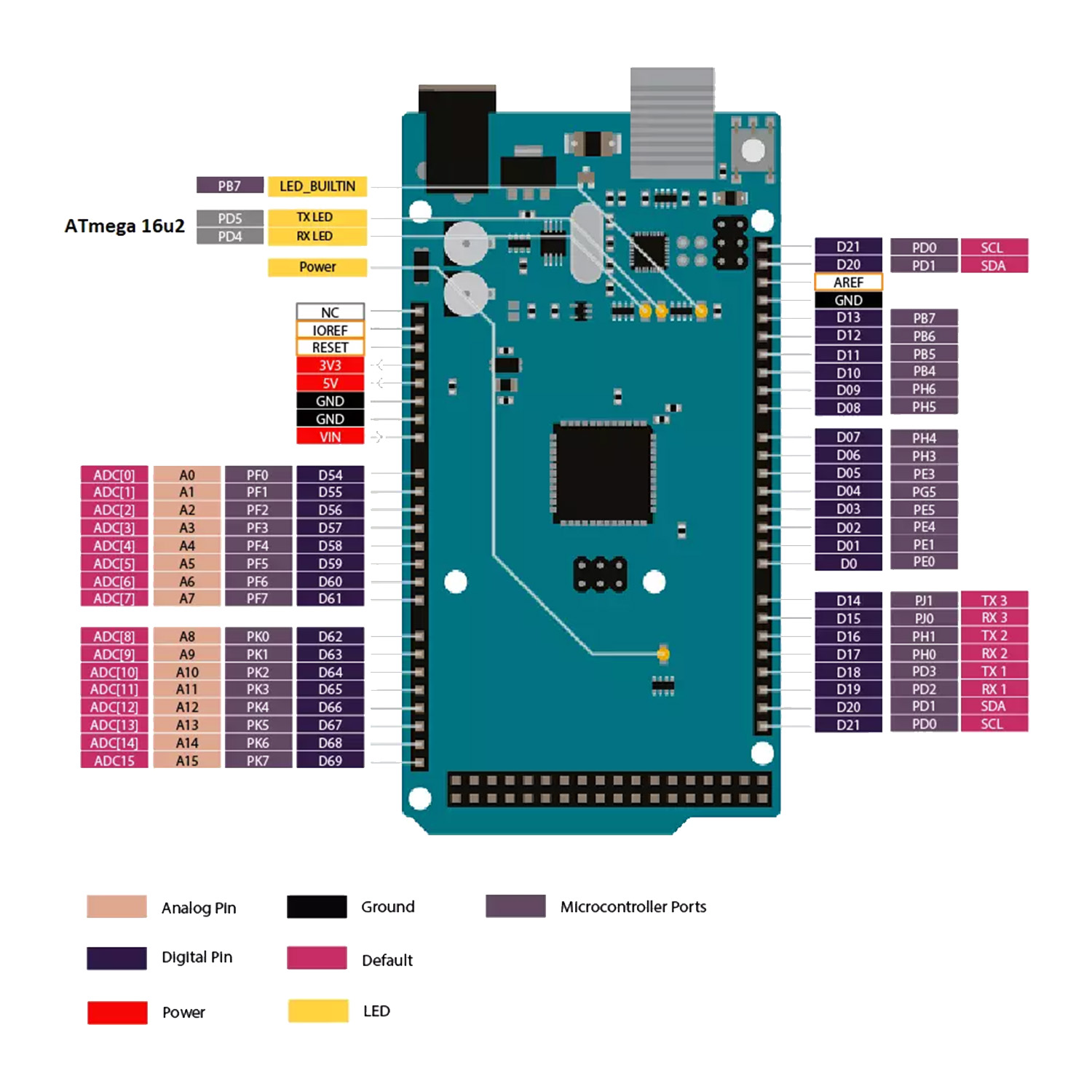

Pin Configuration: This section details the function of each pin, helping you plan your wiring and connections.

Electrical Characteristics: Understanding the voltage and current confinements of the board guarantees you do not over-burden it, which may cause harm.

Memory Organization: This portion of the datasheet clarifies how the board's memory is organized, which is significant for optimizing your code.

Optimizing Your Arduino Mega 2560 Rev3 Ventures

Once you're recognizable with the essentials, it's time to begin considering approximately how to optimize your ventures utilizing the Arduino Mega 2560 Rev3. Here are a few fundamental traps to assist you get the foremost out of your board.

Effective Memory Utilization

Given the adequate memory of the Mega, it can be enticing to type in huge, complex programs. In any case, proficient memory utilization is still vital to guarantee your extend runs easily. Maintain a strategic distance from memory spills by utilizing energetic memory allocation carefully and liberating up memory when it's now not required.

Utilize Numerous Serial Ports

The Mega's four serial ports are a significant advantage, especially in ventures that require numerous serial gadgets. For case, you'll be able interface a GPS module, an RFID peruser, and a serial show all at once without requiring to multiplex signals. This capability streamlines your wiring and diminishes the hazard of mistakes.

Control Administration

For convenient ventures, overseeing control utilization is significant. The Arduino Mega 2560 Rev3 can be fueled by means of USB or an outside control supply. To optimize control utilization, consider utilizing rest modes in your code when the board isn't effectively handling information.

Last Considerations

The Arduino Mega 2560 Rev3 could be a flexible and capable apparatus that can open up modern possibilities for your ventures. By understanding its highlights, setting it up accurately, and using the tricks laid out in this direct, you will be well on your way to making inventive and complex ventures with ease. Whether you're working on a large-scale project or fair investigating modern conceivable outcomes, the Arduino Mega 2560 Rev3 could be a incredible choice for both tenderfoots and experienced creators. Also, considering the Arduino Mega size permits you to way better arrange and coordinated it into your designs, guaranteeing that your venture format is productive and organized.
