Renesas Electronics America Inc 874001AGI-05LFT

Part No.:: 874001AGI-05LFT

Manufacturer:: Renesas Electronics America Inc

Package:: 20-TSSOP (0.173, 4.40mm Width)

Datasheet:: 874001AGI-05LFT.pdf

Description:: IC PCI EXPRSS/JITT ATTEN 20TSSOP

In Stock:: 3963

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

874001AGI-05LFT Specifications

Packaging:
Tape & Reel (TR)
Series:
FemtoClock®
Product Status:
Obsolete
PLL:
Yes
Main Purpose:
PCI Express (PCIe)
Input:
HCSL, LVDS, LVHSTL, LVPECL, SSTL
Output:
LVDS
Number of Circuits:
1
Ratio-Input:Output:
1:1
Differential-Input:Output:
Yes/Yes
Frequency-Max:
640MHz
Voltage-Supply:
3V ~ 3.6V
Operating Temperature:
-40°C ~ 85°C
Mounting Type:
Surface Mount

874001AGI-05LFT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 874001AGI-05LFT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 874001AGI-05LFT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

874001AGI-05LFT information

Views：

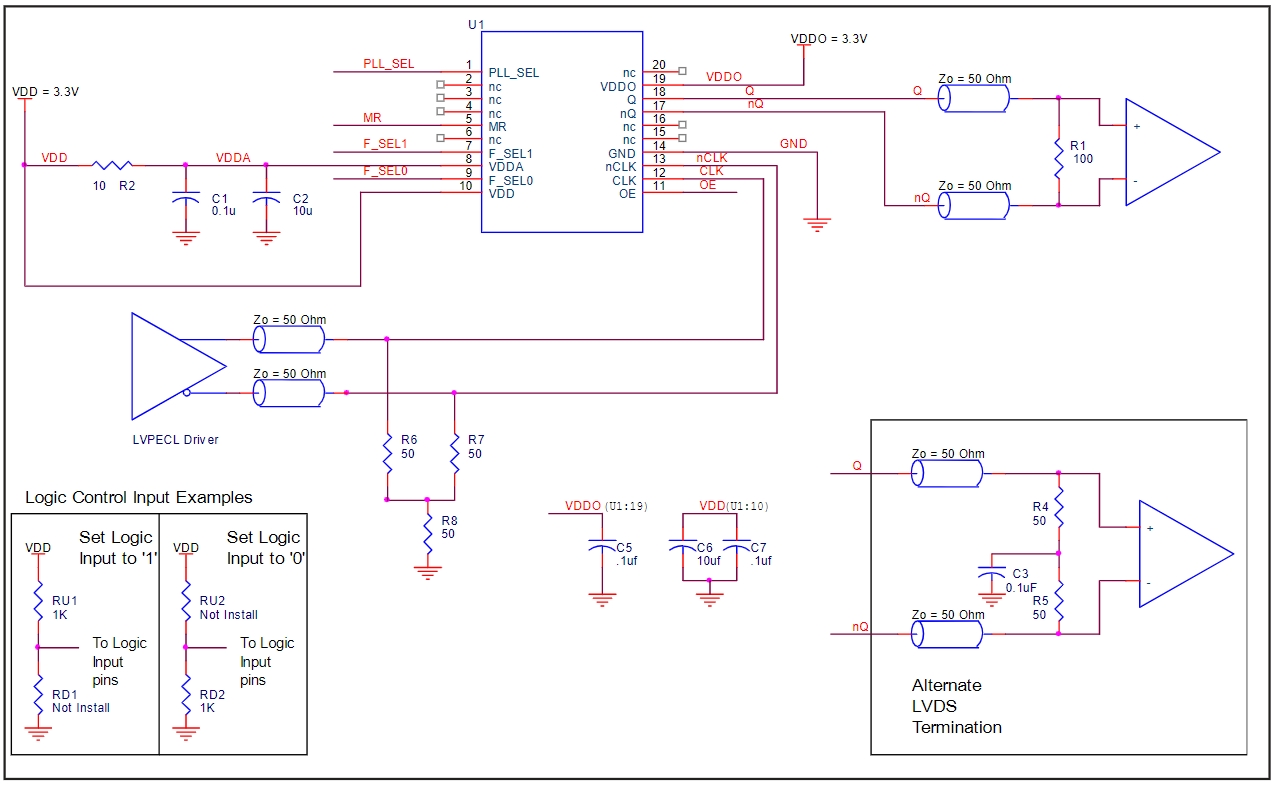

874001AGI-05LFT Typical application Circuitry

874001AGI-05LFT

The 874001AGI-05LFT is a precision clock generator IC, offering a high degree of stability and accuracy in generating clock signals for various digital applications. This component finds its use in environments where consistent and precise timing is crucial, such as in telecommunications, data centers, high-performance computing, and digital signal processing.

Application Scenarios:

A practical application of the 874001AGI-05LFT is in the realm of high-speed data communication systems, such as in fiber optic transceivers, where it can provide the essential clock signals for both transmitting and receiving data packets. In this context, the 874001AGI-05LFT ensures the synchronization of data transmission, which is vital for maintaining data integrity and minimizing errors over high-speed communication links.

Parameter Features:

The 874001AGI-05LFT is characterized by its ability to support a wide range of output frequencies, low phase jitter, which is critical for maintaining signal quality in high-speed communications, and its capacity to generate multiple clock outputs from a single input frequency. Furthermore, it operates over a broad voltage range and is designed for low power consumption, making it suitable for energy-sensitive applications.

Circuit Connection Details:

- Power Supply and Grounding: Connect the VDD pin of the 874001AGI-05LFT to a 3.3V power source, ensuring that the power supply is stable and free from significant noise, as fluctuations can affect the clock signal's quality. The ground pin (GND) should be connected to the system ground, establishing a common reference point for all components in the circuit.

- Input Frequency Source: Attach a stable crystal oscillator to the XTAL_IN and XTAL_OUT pins. This crystal acts as the primary frequency reference for the 874001AGI-05LFT, dictating the base frequency from which the IC generates its output clock signals.

- Configuring Clock Outputs: Utilize the multiple clock output pins provided by the 874001AGI-05LFT to distribute clock signals to various components within the fiber optic transceiver, such as the serializer/deserializer (SerDes), the digital signal processor (DSP), and other integrated circuits requiring precise timing. This setup ensures synchronized operation across the device.

- Bypass Capacitors: To mitigate power supply noise, place bypass capacitors close to the VDD and GND pins of the 874001AGI-05LFT. This precaution helps in maintaining a clean power supply, which is crucial for the stability of the output clock signals.

Design Considerations:

1. Signal Integrity: Given the high-speed nature of the application, it's imperative to ensure the clock signals maintain their integrity, requiring careful routing and, potentially, impedance matching to prevent signal degradation.

2. Power Supply Quality: The 874001AGI-05LFT relies on a stable and noise-free power supply for optimal performance. Incorporating filtering and stabilization circuits can help maintain the quality of the power supply.

3. Thermal Management: Although the 874001AGI-05LFT is designed to be energy-efficient, it's vital to consider thermal aspects of the circuit, especially in densely packed or high-power environments, to prevent overheating and ensure reliability.

4. Load Capacitance and Matching: When connecting the crystal oscillator, ensure that the load capacitance requirements match those specified for the 874001AGI-05LFT to maintain frequency accuracy and stability.

By meticulously planning the integration of the 874001AGI-05LFT into your design, considering these critical aspects, you can harness its capabilities to enhance the performance and reliability of high-speed data communication systems, leveraging its precision in generating critical clock signals.
