Nexperia USA Inc. 74LVC4245APW-Q100J

Part No.:: 74LVC4245APW-Q100J

Manufacturer:: Nexperia USA Inc.

Package:: 24-TSSOP (0.173, 4.40mm Width)

Datasheet:: 74LVC4245APW-Q100J.pdf

Description:: IC TRNSLTR BIDIRECTIONAL 24TSSOP

In Stock:: 2445

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74LVC4245APW-Q100J Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100, 74LVC
ProductStatus:
Active
TranslatorType:
Voltage Level
ChannelType:
Bidirectional
NumberofCircuits:
1
ChannelsperCircuit:
8
Voltage-VCCA:
1.5 V ~ 5.5 V
Voltage-VCCB:
1.5 V ~ 3.6 V
InputSignal:
-
OutputSignal:
-
OutputType:
Tri-State, Non-Inverted
DataRate:
-
OperatingTemperature:
-40°C ~ 125°C (TA)
Features:
-
MountingType:
Surface Mount

74LVC4245APW-Q100J this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74LVC4245APW-Q100J price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74LVC4245APW-Q100J to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74LVC4245APW-Q100J information

Views：

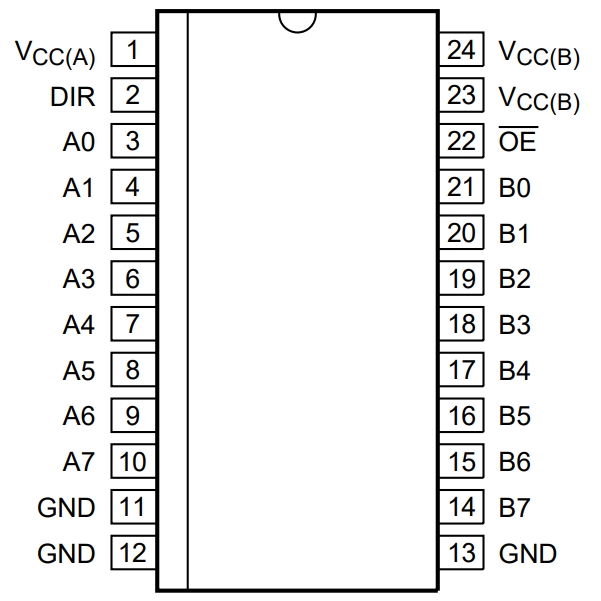

74LVC4245APW-Q100J Typical application Circuitry

74LVC4245APW-Q100J

74LVC4245APW-Q100J is an octal dual-supply bus transceiver with configurable voltage translation and 3-state outputs, designed to interface between a 5V bus and a 3.3V bus in a mixed-voltage digital system.

Application Scenarios:

- Voltage level translation for interfacing between 5V and 3.3V buses.

- Bidirectional data transmission in multi-voltage digital systems.

- Isolation of components operating at different voltage levels within a mixed-voltage system.

Parameter Features:

- Dual-supply voltage operation, supporting VCC(A) from 1.2V to 5.5V and VCC(B) from 2.7V to 5.5V.

- High-speed data transmission with low propagation delay.

- 8-bit wide bidirectional data bus.

Let's consider an application scenario where we are using 74LVC4245APW-Q100J to interface a 5V microcontroller with a 3.3V memory device.

1. Power Supply Connections:

- Connect VCC(A) (Pin 24) to the 5V supply for the microcontroller side.

- Connect VCC(B) (Pin 1) to the 3.3V supply for the memory device side.

- Connect GND (Pins 12 and 13) to the common ground of the system.

2. Data Bus Connections:

- Connect A1 of 74LVC4245APW-Q100J to A8 (Pins 2 to 9) to the data pins of the microcontroller.

- Connect B1 to B8 (Pins 18 to 25) to the data pins of the memory device.

3. Direction and Enable Controls:

- Connect DIR (Pin 10) to a GPIO pin on the microcontroller to control the direction of data flow.

- Connect OE (Pin 19) to a GPIO pin on the microcontroller to enable or disable the data bus.

Design Considerations:

- Ensure that 74LVC4245APW-Q100J is supplied with the correct voltage levels for VCC(A) and VCC(B) according to the devices it is interfacing.

- The 74LVC4245APW-Q100J direction of data flow should be correctly set by controlling the DIR pin, depending on whether data is being read from or written to the memory device.

- Pull-up or pull-down resistors may be used on the DIR and OE pins to set a default state.

- To filter out any noise in the power supply, appropriate decoupling capacitors should be employed close to the VCC pins.

In conclusion, 74LVC4245APW-Q100J offers a versatile solution for voltage level translation and bidirectional data transmission in mixed-voltage digital systems, ensuring seamless communication between components operating at different voltage levels.
