Nexperia USA Inc. 74LVC2G17GW,125

Part No.:: 74LVC2G17GW,125

Manufacturer:: Nexperia USA Inc.

Package:: 6-TSSOP, SC-88, SOT-363

Datasheet:: 74LVC2G17GW,125.pdf

Description:: IC BUF NON-INVERT 5.5V 6TSSOP

In Stock:: 3929

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74LVC2G17GW,125 Specifications

Package/Case:
6-TSSOP, SC-88, SOT-363
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74LVC
ProductStatus:
Active
LogicType:
Buffer, Non-Inverting
NumberofElements:
2
NumberofBitsperElement:
1
InputType:
Schmitt Trigger
OutputType:
Push-Pull
Current-OutputHighLow:
32mA, 32mA
Voltage-Supply:
1.65V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

74LVC2G17GW,125 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74LVC2G17GW,125 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74LVC2G17GW,125 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74LVC2G17GW,125 information

Views：

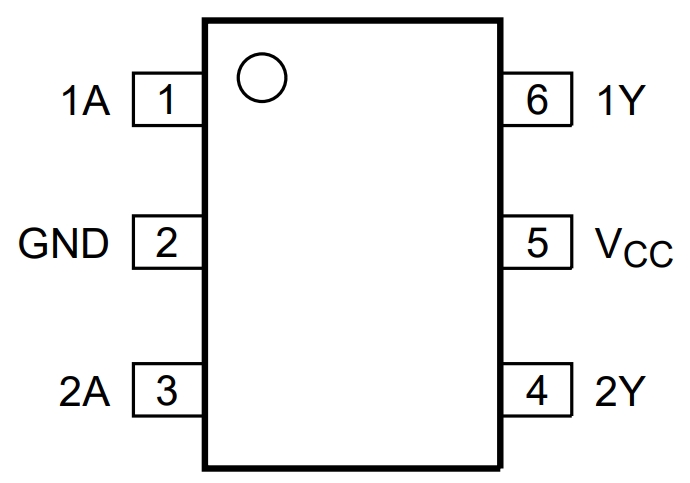

74LVC2G17GW,125 Typical application Circuitry

74LVC2G17GW,125

74LVC2G17GW,125 is a dual non-inverting Schmitt-trigger buffer designed to provide a reliable solution for conditioning digital signals and ensuring their integrity across different voltage domains. It is ideal for interfacing between digital systems operating at varying voltage levels, as well as for filtering out noise and irregularities in digital signals.

Application Scenarios:

- Digital signal conditioning and noise filtering.

- Voltage level translation in mixed-voltage digital systems.

- Waveform shaping for clock signals.

Parameter Features:

- Wide supply voltage range from 1.65V to 5.5V.

- Tolerant to inputs up to 5.5V, regardless of the operating voltage.

- Low propagation delay and high-speed operation.

Let's consider a scenario where we are using 74LVC2G17GW,125 to filter out noise from a digital signal in a 3.3V digital system.

1. Connecting the Power Supply:

- Connect VCC of 74LVC2G17GW,125 (Pin 6) to the 3.3V power supply.

- Connect GND (Pin 5) to the ground of the system.

2. Connecting the Input and Output for Signal Filtering:

- Connect A1 of 74LVC2G17GW,125 (Pin 1) to the noisy digital signal source.

- Connect Y1 (Pin 2) to the input of the digital circuit where the filtered signal is required.

3. Handling Unused Pins:

- If the second buffer (A2 and Y2) is not being used, it is recommended to connect A2 (Pin 3) to GND to prevent unnecessary power consumption.

Design Considerations:

- Ensure that the 74LVC2G17GW,125 is supplied with the correct voltage according to the system's operating voltage.

- Be cautious not to exceed the chip's maximum input rating of 5.5V.

- Consider using pull-up or pull-down resistors to prevent floating inputs that can introduce noise.

- Capacitors close to the VCC and GND pins can be decoupled to assist reduce noise from the power supply.

In summary, 74LVC2G17GW,125 serves as a versatile solution for digital signal conditioning, ensuring signal integrity across varying voltage domains and providing a reliable means of filtering out noise from digital signals.
