Nexperia USA Inc. 74LVC2G07GW-Q100H

Part No.:: 74LVC2G07GW-Q100H

Manufacturer:: Nexperia USA Inc.

Package:: 6-TSSOP, SC-88, SOT-363

Datasheet:: 74LVC2G07GW-Q100H.pdf

Description:: IC BUFFER NON-INVERT 5.5V SOT363

In Stock:: 3535

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74LVC2G07GW-Q100H Specifications

Package/Case:
6-TSSOP, SC-88, SOT-363
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74LVC
ProductStatus:
Active
LogicType:
Buffer, Non-Inverting
NumberofElements:
2
NumberofBitsperElement:
1
InputType:
-
OutputType:
Open Drain
Current-OutputHighLow:
-, 32mA
Voltage-Supply:
1.65V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

74LVC2G07GW-Q100H this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74LVC2G07GW-Q100H price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74LVC2G07GW-Q100H to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74LVC2G07GW-Q100H information

Views：

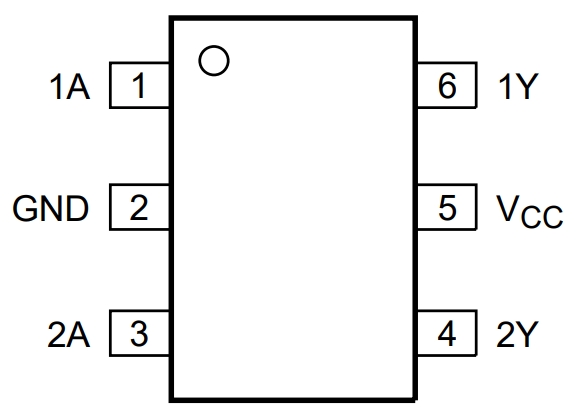

74LVC2G07GW-Q100H Typical application Circuitry

74LVC2G07GW-Q100H

The 74LVC2G07GW-Q100H is a dual buffer with open-drain outputs designed to operate at a voltage range from 1.65V to 5.5V. This chip is capable of driving heavily loaded outputs while maintaining high performance.

Application Scenarios:

The 74LVC2G07GW-Q100H can be used in various scenarios, such as interfacing between different voltage domains, driving high-capacitance loads like LEDs, and general-purpose buffering in microcontroller-based circuits.

Parameter Features:

- Supply Voltage Range: 1.65V to 5.5V

- Output Current: -32 mA

- Power Dissipation: 250 mW

- Data Rate: 150 Mbps

Let's consider a scenario where the 74LVC2G07GW-Q100H is used to interface a 3.3V microcontroller with a 5V LED.

1. Power Supply Connection:

- Connect VCC (pin 6) to the 5V power supply.

- Connect GND (pin 5) to the ground.

2. Microcontroller Interface:

- Connect the data output pin of the microcontroller to A1 or A2 (pins 1 or 4) on the 74LVC2G07GW-Q100H.

3. LED Interface:

- Connect the cathode of the LED to Y1 or Y2 (pins 2 or 3) on the 74LVC2G07GW-Q100H.

- Attach the LED's anode to the 5V power source by means of a current-limiting resistor.

Design Considerations:

When designing a circuit with the 74LVC2G07GW-Q100H, consider the following:

1. Compatibility:

- Ensure that the voltage levels of the microcontroller and the LED are compatible with the operational range of the chip.

2. Power Management:

- Take into account the power consumption of the chip and the LED. Incorporate suitable current-limiting resistors to prevent damage.

3. Signal Integrity:

- Maintain proper PCB design practices to uphold signal integrity and minimize interference.

4. Thermal Management:

- Assess the heat dissipation requirements of the chip and the LED, including heat sinks if necessary.

Following these guidelines will ensure a successful integration of 74LVC2G07GW-Q100H into your circuit design.
