Nexperia USA Inc. 74LVC14APW-Q100J

Part No.:: 74LVC14APW-Q100J

Manufacturer:: Nexperia USA Inc.

Package:: 14-TSSOP

Datasheet:: 74LVC14APW-Q100J.pdf

Description:: IC INVERTER 6CH 1-INP 14TSSOP

In Stock:: 2465

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74LVC14APW-Q100J Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100, 74LVC
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
1.2V ~ 3.6V
Current-Quiescent(Max):
40 µA
Current-OutputHighLow:
24mA, 24mA
LogicLevel-Low:
0.12V ~ 0.8V
LogicLevel-High:
1V ~ 2V
MaxPropagationDelay@VMaxCL:
6.4ns @ 3.3V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74LVC14APW-Q100J this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74LVC14APW-Q100J price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74LVC14APW-Q100J to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74LVC14APW-Q100J information

Views：

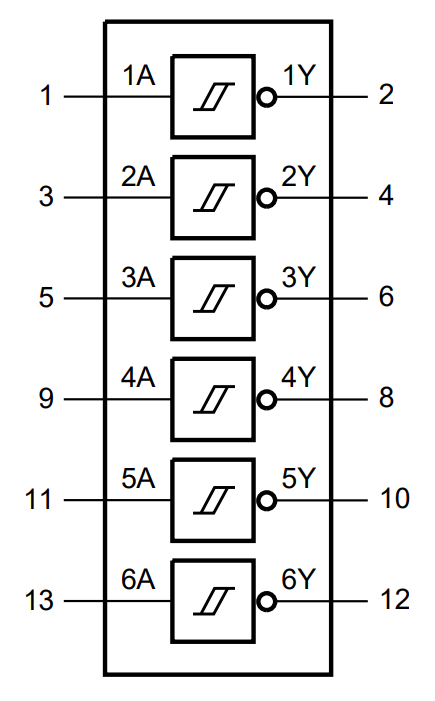

74LVC14APW-Q100J Typical application Circuitry

74LVC14APW-Q100J

The 74LVC14APW-Q100J is an integral component within the LVC (Low-Voltage CMOS) series, designed by NXP Semiconductors to cater to automotive grade requirements, indicated by the "-Q100" suffix, which signifies its qualification under automotive reliability standards. This device is optimized for low-voltage operations and is characterized by its ability to handle digital signal processing with enhanced stability and precision. The 74LVC14APW-Q100J is particularly celebrated for its Schmitt-trigger inputs, which substantially bolster the device's tolerance to noisy environments, making it an exemplary choice for automotive applications where electrical noise is a common challenge.

1. Operational Voltage Range: The 74LVC14APW-Q100J operates efficiently across a versatile voltage range of 1.65 to 5.5 volts. This broad operating voltage spectrum ensures that the device is not only suitable for low-power applications but also compatible with systems requiring higher operational voltages. This flexibility makes it particularly advantageous for automotive systems that need to maintain performance across a range of power supply conditions.

2. Schmitt-Trigger Inputs (Pins 1, 3, 5, 9, 11, 13): The device features six inverting Schmitt-trigger inputs, which are critical for converting unstable or noisy input signals into stable digital output signals. These inputs are allocated to pins 1, 3, 5, 9, 11, and 13 of the 74LVC14APW-Q100J. The Schmitt-trigger mechanism ensures that the outputs are less susceptible to errors induced by signal noise, which is particularly prevalent in the electrical systems of vehicles.

3. Power Supply Connections (VCC and GND Pins): For power supply, the 74LVC14APW-Q100J utilizes pin 14 (VCC) for the positive supply voltage and pin 7 (GND) for the ground connection. The compatibility with a wide voltage range (1.65 to 5.5 volts) highlights the device's adaptability to various automotive power systems, ensuring reliable logic operation under varying electrical conditions.

4. Inverted Output Pins (Pins 2, 4, 6, 8, 10, 12): Each Schmitt-trigger input on the 74LVC14APW-Q100J is paired with an inverted output pin, totaling six output pins. These outputs deliver the inverse of the processed input signals, ensuring that the device can effectively communicate with downstream components in the automotive system's electronics, such as microprocessors, other logic devices, or control modules.

5. Fixed Functionality: Unlike some analog components that offer adjustable parameters, the 74LVC14APW-Q100J's functionality is determined by its internal configuration and the applied operating voltage. This fixed-function approach simplifies the integration process, as the device does not require external adjustments to perform its intended logic operations, making it straightforward for automotive electronics designers to incorporate into systems.

In summary, the 74LVC14APW-Q100J is a robust, low-voltage CMOS device, certified for automotive applications and designed to deliver reliable digital signal processing capabilities. Its broad operational voltage range, combined with Schmitt-trigger inputs for enhanced signal integrity, makes it an ideal choice for automotive electronics where performance and reliability are paramount. The 74LVC14APW-Q100J thus represents NXP Semiconductors' commitment to advancing automotive technology through high-quality, versatile components.
