NXP USA Inc. 74LVC14APW/AUJ

Part No.:: 74LVC14APW/AUJ

Manufacturer:: NXP USA Inc.

Package:: 14-TSSOP

Datasheet:: 74LVC14APW/AUJ.pdf

Description:: IC INVERTER 6CH 1-INP 14TSSOP

In Stock:: 2437

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74LVC14APW/AUJ Specifications

Packaging:
Tape & Reel (TR)
Series:
74LVC
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
1.65V ~ 3.6V
Current-Quiescent(Max):
10 µA
Current-OutputHighLow:
24mA, 24mA
LogicLevel-Low:
0.12V ~ 0.8V
LogicLevel-High:
1V ~ 2V
MaxPropagationDelay@VMaxCL:
6.4ns @ 3.3V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74LVC14APW/AUJ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74LVC14APW/AUJ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74LVC14APW/AUJ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74LVC14APW/AUJ information

Views：

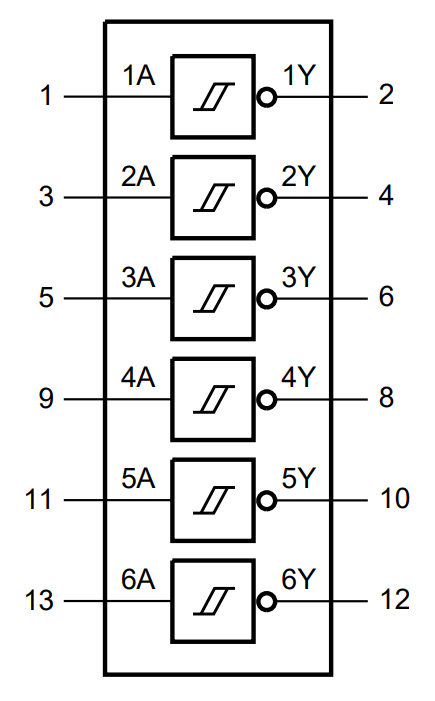

74LVC14APW/AUJ Typical application Circuitry

74LVC14APW AUJ

The 74LVC14APW/AUJ is a pivotal component within the Low-Voltage CMOS (LVC) series, known for its adaptability in operating across a broad voltage spectrum, specifically tailored for digital signal enhancement and noise reduction in electronic systems. This device, produced by NXP Semiconductors, is celebrated for its integration of six Schmitt-trigger inverters, making it an essential tool for designers seeking to fortify signal integrity within their digital circuits.

1. Pin Configuration - Input and Output Relationships: The 74LVC14APW/AUJ is meticulously crafted, featuring a pin arrangement that hosts six inverters. Inputs are received through pins 1, 3, 5, 9, 11, and 13, each corresponding to a Schmitt-trigger inverter. The outputs of these inverters are then presented on pins 2, 4, 6, 8, 10, and 12, respectively. This arrangement ensures that each input signal is processed to generate a clean, inverted output, essential for high-quality digital signal processing.

2. Power Supply – Operational Voltage Range: A defining characteristic of the 74LVC14APW/AUJ is its flexible voltage operation. It is engineered to function efficiently across a voltage range from 1.65 volts up to 5.5 volts. This wide operational voltage spectrum allows the device to be seamlessly integrated into various electronic systems, ranging from low-voltage battery-operated devices to systems that operate at higher voltages. The VCC (supply voltage) is connected to pin 14, while the GND (ground) is connected to pin 7, anchoring the device's power framework.

3. Enhanced Signal Processing – Schmitt-Trigger Action: The Schmitt-trigger inputs of the 74LVC14APW/AUJ are ingeniously designed to convert fluctuating or noisy input signals into stable digital outputs, thereby significantly reducing signal degradation. This feature is particularly beneficial in environments where signals are prone to interference or in applications requiring precise digital signal timing.

4. Design Flexibility and Integration Ease: The 74LVC14APW/AUJ is devoid of traditional adjustment pins found in analog devices, such as offset and gain adjustments, due to its digital nature. This absence underscores the device's design philosophy, focusing on providing a straightforward, high-performance solution for digital signal processing without the need for external calibration or adjustment, thus simplifying circuit design and integration.

5. Device Utilization and Application Spectrum: The utilization of the 74LVC14APW/AUJ extends across a diverse range of applications, from debounce circuits and waveform shaping to signal transmission across long cables. Its ability to operate at a wide range of voltages enhances its compatibility with other system components, making it an invaluable asset in both modern and legacy electronic systems.

In conclusion, the 74LVC14APW/AUJ embodies the essence of NXP Semiconductors' commitment to innovative, high-quality digital processing solutions. Its versatility in voltage operation, coupled with the robustness of Schmitt-trigger inverters, positions it as a cornerstone component for enhancing digital signal integrity across a myriad of electronic applications. The 74LVC14APW/AUJ, with its detailed pin configuration and operational flexibility, offers designers a powerful tool for advancing the reliability and performance of their electronic systems.
