Nexperia USA Inc. 74HCT4051DB,118

Part No.:: 74HCT4051DB,118

Manufacturer:: Nexperia USA Inc.

Package:: 16-SSOP (0.209, 5.30mm Width)

Datasheet:: 74HCT4051DB,118.pdf

Description:: IC MUX/DEMUX 8X1 16SSOP

In Stock:: 750

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HCT4051DB,118 Specifications

Package/Case:
16-SSOP (0.209, 5.30mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Obsolete
SwitchCircuit:
-
Multiplexer/DemultiplexerCircuit:
8:1
NumberofCircuits:
1
On-StateResistance(Max):
120Ohm
Channel-to-ChannelMatching(ΔRon):
6Ohm
Voltage-SupplySingle(V+):
4.5V ~ 5.5V
Voltage-SupplyDual(V±):
±1V ~ 5V
SwitchTime(TonToff)(Max):
39ns, 32ns
-3dbBandwidth:
180MHz
ChargeInjection:
-
ChannelCapacitance(CS(off)CD(off)):
3.5pF
Current-Leakage(IS(off))(Max):
400nA
Crosstalk:
-
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

74HCT4051DB,118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HCT4051DB,118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HCT4051DB,118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HCT4051DB,118 information

Views：

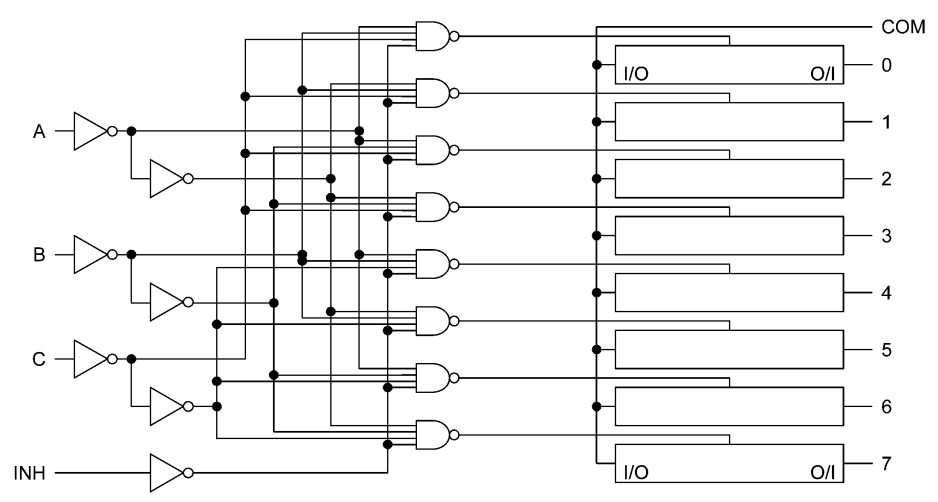

74HCT4051DB,118 Typical application Circuitry

74HCT4051DB,118

The 74HCT4051DB,118 is a distinguished member of the 74HCT family, which seamlessly merges the benefits of High-Speed CMOS technology with the functionality of TTL logic levels. This combination ensures compatibility across a broad spectrum of digital systems, making it an invaluable tool for designers. The model number "74HCT4051DB,118" identifies this device as a variant within the 74HCT series, specifically designed for analog multiplexing and demultiplexing applications. This device enables the precise selection and routing of one out of eight signals to a single output, facilitating its utility in diverse applications such as data acquisition systems, signal routing in communication devices, and multiplexing for analog-to-digital conversion.

1. Series Essence: Anchored in the 74HCT lineup, the 74HCT4051DB,118 embodies the series' hallmark of low power consumption coupled with high-speed operation. This ensures efficient performance in environments where power efficiency and rapid signal processing are paramount. The TTL compatibility further broadens its applicability, allowing for seamless integration with existing TTL logic circuits.

2. Pin Configuration Detailing: Encased in a SSOP16 package, the 74HCT4051DB,118 is meticulously designed with sixteen pins, each serving a critical role. The device features three binary control inputs (S0, S1, S2), which are instrumental in selecting the active channel. An additional enable input (E\) is provided to facilitate the activation or deactivation of the device. The common input/output pin (Z) serves as the nexus for signal routing, interfacing directly with the selected channel among the eight available inputs/outputs (Y0 to Y7). This structured arrangement of pins ensures a compact yet flexible platform for signal manipulation.

3. Electrical Connection Strategy: To harness the 74HCT4051DB,118's capabilities, a supply voltage (VCC) ranging from 4.5V to 5.5V is requisite, aligning with the typical requirements for TTL-compatible devices. Establishing a robust ground connection is imperative, as it anchors the system, ensuring operational stability and minimizing potential signal interference, which is crucial for maintaining the integrity of the signal routing process.

4. Exploring I/O Pin Dynamics: The multifaceted nature of the 74HCT4051DB,118's I/O pins underscores its adaptability, accommodating a wide array of signal types. This adaptability is paramount in crafting systems that demand precision in signal routing, whether for analog or digital signals. By judiciously configuring these pins to align with the specific demands of the application, designers can significantly enhance the circuit's functionality, streamlining the design process and optimizing the system's performance.

5. Operational Considerations: The core of the 74HCT4051DB,118's operational excellence lies in its capacity for swift and seamless channel selection, with minimal cross-talk and signal degradation. This feature is particularly beneficial in applications requiring rapid switching between inputs, ensuring that the device can effectively manage signal routing without compromising signal quality.

6. Signal Integrity Focus: To optimize the 74HCT4051DB,118 for peak performance, particular attention must be paid to the PCB layout. Strategic placement of decoupling capacitors near the VCC and GND pins is advised to mitigate voltage spikes and enhance power stability. Furthermore, careful planning of the signal paths is essential to prevent interference, ensuring that the device operates within its intended parameters.

In conclusion, the 74HCT4051DB,118 stands as a testament to the engineering excellence embodied in the 74HCT series, offering a versatile and efficient solution for analog signal multiplexing and demultiplexing. Through meticulous pin configuration, strategic electrical connections, dynamic I/O pin utilization, and a focus on operational integrity and signal quality, this device provides a foundation for developing advanced electronic systems that require precise signal management. Its integration into a design ensures a balance between performance and power efficiency, making the 74HCT4051DB,118 a cornerstone in the landscape of modern electronic engineering.
