Nexperia USA Inc. 74HCT14D652

Part No.:: 74HCT14D652

Manufacturer:: Nexperia USA Inc.

Package:: 14-SO

Datasheet:: 74HCT14D652.pdf

Description:: IC INVERT SCHMITT 6CH 1-INP 14SO

In Stock:: 3690

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HCT14D652 Specifications

Packaging:
Bulk
Series:
74HCT
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
4.5V ~ 5.5V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
4mA, 4mA
LogicLevel-Low:
0.5V ~ 0.6V
LogicLevel-High:
1.9V ~ 2.1V
MaxPropagationDelay@VMaxCL:
34ns @ 4.5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HCT14D652 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HCT14D652 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HCT14D652 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HCT14D652 information

Views：

74HCT14D652 Typical application Circuitry

74HCT14D652

74HCT14D652 is a hex inverting Schmitt trigger chip that belongs to the high-speed CMOS family. This chip comprises six Schmitt triggers, with each trigger having separate input and output pins. The primary function of this chip is to convert irregular-shaped waveforms into square waveforms.

Application Scenarios for 74HCT14D652 include:

- Signal conditioning and noise filtering

- Pulse generation and shaping

- Waveform conversion

- Logic level shifting

Key Parameters and Characteristics of 74HCT14D652 are:

- Supply Voltage (Vcc): 4.5V to 5.5V

- Operating Temperature: -40°C to +125°C

- Input Voltage (V_I): 0V to Vcc

- Output Voltage (V_O): 0V to Vcc

- Propagation Delay (t_pd): Approximately 15ns at 5V

For our example application scenario, we will use the 74HCT14D652 to clean a noisy square wave signal.

Circuit Connection:

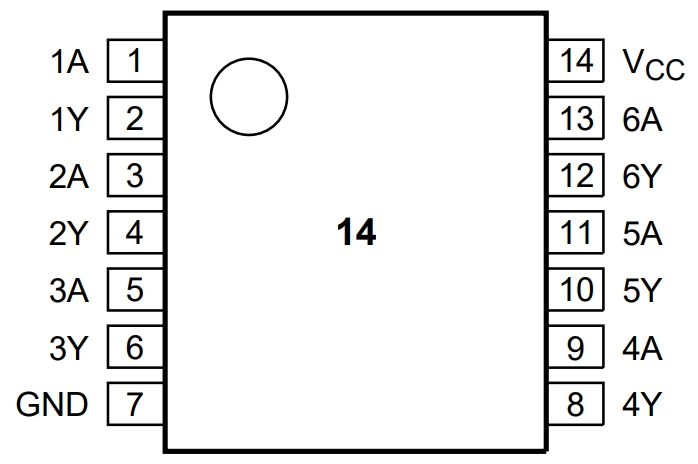

1. Ground and Power Supply Connections: Attach the ground to Pin 7 (GND) and the 5V power supply to Pin 14 (Vcc).

2. Input Signal Connection: Connect the noisy square wave signal to Pin 1 (A1).

3. Output Signal Connection: Connect Pin 2 (Y1) to the input of the device or circuit that requires the cleaned square wave signal.

Design Considerations:

1. Voltage Levels: Verify that the supplied voltage falls between the designated 4.5V and 5.5V range.

2. Signal Compatibility: Confirm that the amplitude of the input signal is within the range of 0V to Vcc.

3. Requirements for Load: Ensure that the output load does not beyond the chip's maximum current rating.

4. Propagation Delay: Account for the propagation delay of approximately 15ns, especially in time-sensitive applications.

In summary, 74HCT14D652 is a highly versatile and useful chip, ideal for a range of applications including signal conditioning, noise filtering, pulse generation, waveform conversion, and logic level shifting. When designing circuits with this chip, attention must be given to the supply voltage, input signal amplitude, output load, and propagation delay to achieve optimal performance and desired results.
