ON Semiconductor 74HCT08DR2GH

Part No.:: 74HCT08DR2GH

Manufacturer:: ON Semiconductor

Package:: 14-SOIC

Datasheet:: 74HCT08DR2GH.pdf

Description:: IC GATE AND 4CH 2-INP 14SOIC

In Stock:: 2923

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HCT08DR2GH Specifications

Packaging:
Bulk
Series:
74HCT
ProductStatus:
Active
LogicType:
AND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
4.5V ~ 5.5V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
4mA, 4mA
LogicLevel-Low:
0.8V
LogicLevel-High:
2V
MaxPropagationDelay@VMaxCL:
15ns @ 4.5V, 50pF
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Surface Mount

74HCT08DR2GH this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HCT08DR2GH price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HCT08DR2GH to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HCT08DR2GH information

Views：

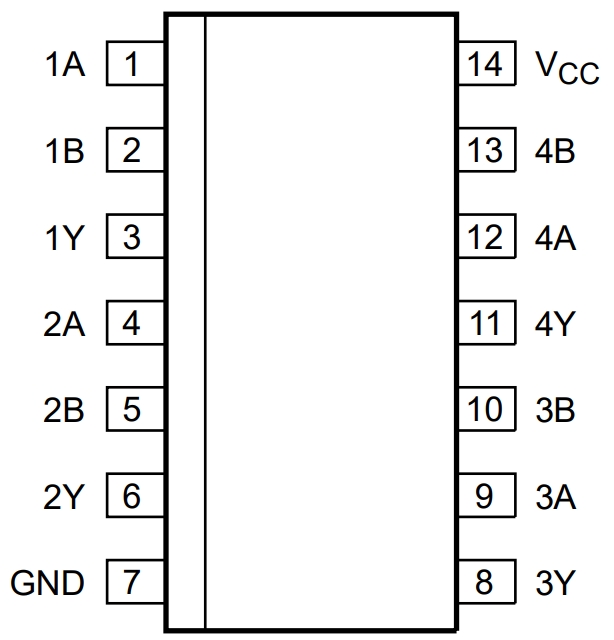

74HCT08DR2GH Typical application Circuitry

74HCT08DR2GH

Quadruple 2-input AND gate high-speed CMOS (HCMOS) integrated circuit (IC) 74HCT08DR2GH. It consists of four independent 2-input AND gates, and it is designed to perform logical AND operations on two binary inputs.

Applications of 74HCT08DR2GH include, but are not limited to:

- Digital logic circuits

- Signal gating

- Data synchronization

- Pulse shaping

Key Parameters and Characteristics:

- Supply Voltage (Vcc): 4.5V to 5.5V

- Operating Temperature: -40°C to +85°C

- Input Voltage (V_I): 0V to Vcc

- Output Voltage (V_O): 0V to Vcc

- Propagation Delay (t_pd): Approximately 8ns at 5V

In a specific application scenario, we will use 74HCT08DR2GH to synchronize two digital signals.

Circuit Connection:

1. Power and Ground Connection: Join 74HCT08DR2GH GND (pin 7) and Vcc (pin 14) to the ground and a 5V power source, respectively.

2. Input Signal Connection: Connect the first input signal to A1 (pin 1) and the second input signal to 74HCT08DR2GH B1 (pin 2).

3. Output Signal Connection: Connect the output of the first AND gate (Y1, pin 3) to the input of the device or circuit that requires the synchronized signal.

Design considerations:

1. Voltage Levels: Verify that the supply voltage falls between the 4.5V and 5.5V range.

2. Signal Compatibility: Ensure that the input signals are compatible with the specified range of 0V to Vcc.

3. Output Load: Verify that the output load does not exceed the IC's maximum current rating.

4. Timing Constraints: Be mindful of the propagation delay of approximately 8ns, especially in time-sensitive applications.

In summary, 74HCT08DR2GH is a useful quadruple 2-input AND gate IC with diverse applications in digital logic circuits and signal processing. When designing circuits with this IC, it is crucial to consider the supply voltage, input signals, output load, and timing constraints to achieve the desired results.
