ON Semiconductor 74HCT08DR2G

Part No.:: 74HCT08DR2G

Manufacturer:: ON Semiconductor

Package:: 14-SOIC

Datasheet:: 74HCT08DR2G.pdf

Description:: IC GATE AND 4CH 2-INP 14SOIC

In Stock:: 3723

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HCT08DR2G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74HCT
ProductStatus:
Obsolete
LogicType:
AND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
4.5V ~ 5.5V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
4mA, 4mA
LogicLevel-Low:
0.8V
LogicLevel-High:
2V
MaxPropagationDelay@VMaxCL:
15ns @ 4.5V, 50pF
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Surface Mount

74HCT08DR2G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HCT08DR2G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HCT08DR2G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HCT08DR2G information

Views：

74HCT08DR2G Typical application Circuitry

74HCT08DR2G

74HCT08DR2G is a Quad 2-Input AND Gate integrated circuit, which is a part of the 74HCT family of digital logic gates. The IC operates at high speed with a typical propagation delay of 8 ns and is designed to work with a supply voltage range from 2 V to 6 V.

Applications of 74HCT08DR2G:

74HCT08DR2G finds usage in various digital circuits like data processing units, control systems, and communication devices.

Parameter Characteristics of 74HCT08DR2G:

- Supply Voltage Range: 2 V to 6 V

- Propagation Delay: Approximately 8 ns

- Low Power Consumption

- Output Drive Capability: 4 mA at 5 V

- High Noise Immunity

Example of Application Circuit:

In this example, we will use 74HCT08DR2G to control an LED light. The following is a detailed step-by-step guide on how to set up the IC for this application:

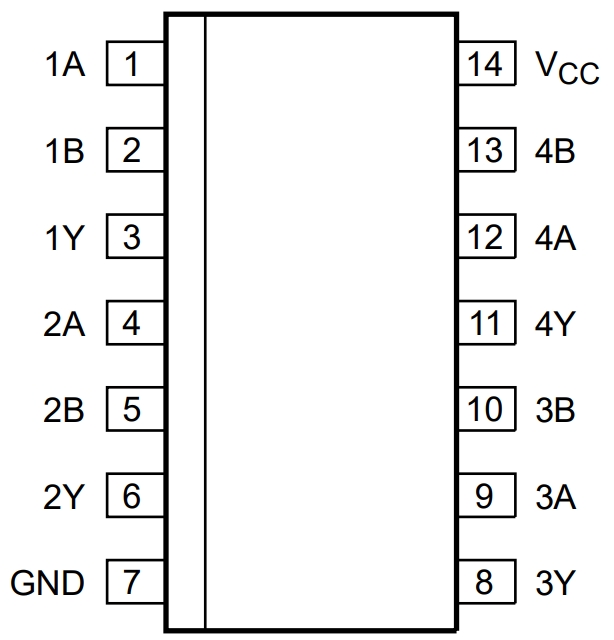

1. Supply Voltage:

- Connect Pin 14 (VCC) to a 5 V power supply.

- Connect Pin 7 (GND) to the ground.

2. Input Connections:

- Attach a switch to Pin 1 (A1), this will be our first input.

- Attach another switch to Pin 2 (B1), this will be our second input.

3. Output Connection:

- Connect Pin 3 (Y1) to a 220-ohm resistor.

- Attach the resistor's other end to the LED's anode. .

- Attach the LED's cathode to the ground.

In this circuit, when both switches are closed, a HIGH signal will be provided to both inputs of the first AND gate, resulting in a HIGH output at Pin 3, which will turn ON the LED.

Design Considerations:

While designing a circuit with 74HCT08DR2G, the following points should be taken into consideration:

1. Voltage Levels: It is important to ensure that the supply voltage is within the specified range of 2 V to 6 V.

2. Input and Output Currents: The output current should not exceed the IC's maximum drive capability of 4 mA at 5 V.

3. Protection: To control the current and shield the LED from harm, a resistor must be put in series with the LED.

4. Noise Immunity: Although 74HCT08DR2G has a high noise immunity, it is still recommended to place the IC away from high-frequency devices to avoid any potential interference.

In conclusion, 74HCT08DR2G is a versatile and highly useful IC that can be used in a variety of digital circuits. By considering the necessary voltage levels, input and output currents, protective measures, and noise immunity, a reliable and efficient circuit can be designed.
