NXP USA Inc. 74HCT08D/C4118

Part No.:: 74HCT08D/C4118

Manufacturer:: NXP USA Inc.

Package:: 14-SO

Datasheet:: 74HCT08D/C4118.pdf

Description:: IC GATE AND 4CH 2-INP 14SO

In Stock:: 2770

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HCT08D/C4118 Specifications

Packaging:
Bulk
Series:
74HCT
ProductStatus:
Active
LogicType:
AND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
4.5V ~ 5.5V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
4mA, 4mA
LogicLevel-Low:
0.8V
LogicLevel-High:
2V
MaxPropagationDelay@VMaxCL:
24ns @ 4.5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HCT08D/C4118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HCT08D/C4118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HCT08D/C4118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HCT08D/C4118 information

Views：

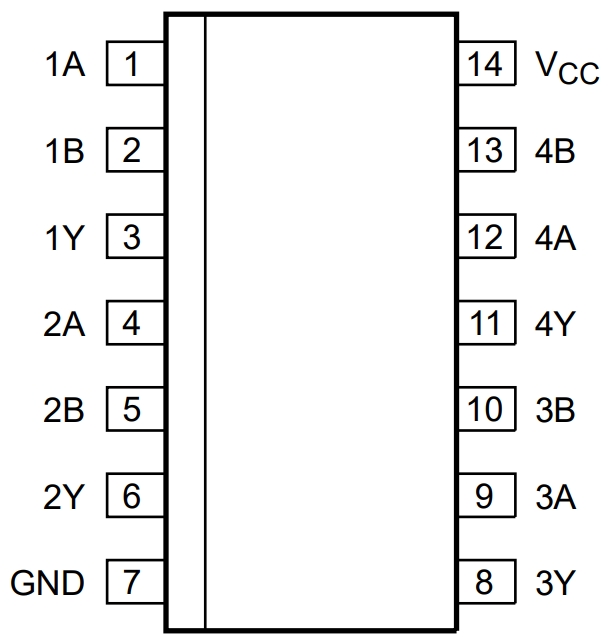

74HCT08D/C4118 Typical application Circuitry

74HCT08D C4118

74HCT08D/C4118 is an integrated circuit chip that functions as a quadruple 2-input AND gate. It belongs to the high-speed CMOS (HCMOS) family and consists of four independent gates that perform the logical AND operation on two binary inputs.

Application Scenarios for 74HCT08D/C4118 include:

- Digital logic circuits

- Signal gating

- Data synchronization

- Pulse shaping

Key Parameters and Characteristics:

- Supply Voltage (Vcc): 4.5V to 5.5V

- Operating Temperature: -40°C to +125°C

- Input Voltage (V_I): 0V to Vcc

- Output Voltage (V_O): 0V to Vcc

- Propagation Delay (t_pd): Approximately 8ns at 5V

Let's consider an application scenario where 74HCT08D/C4118 is used to synchronize two digital signals.

Circuit Connection:

1. Connect Power and Ground: Connect 74HCT08D/C4118 Vcc (pin 14) to a 5V supply and GND (pin 7) to the ground.

2. Connect Input Signals: Connect the first input signal to A1 (pin 1) and the second input signal to B1 (pin 2).

3. Connect Output Signal: Connect the output of the first AND gate (Y1, pin 3) to the input of the device or circuit you want to control with the synchronized signal.

Design Considerations:

1. Verify Voltage Levels: Ensure that the supply voltage is within the specified range of 4.5V to 5.5V.

2. Ensure Signal Compatibility: Make sure that the input signals are within the specified range of 0V to Vcc.

3. Check Output Load: Ensure that the output load does not exceed the maximum current rating of the AND gate.

4. Consider Propagation Delay: Take into account the propagation delay of approximately 8ns when designing time-sensitive applications.

In conclusion, 74HCT08D/C4118 is a versatile quadruple 2-input AND gate IC that can be used in various applications such as digital logic circuits, signal gating, and data synchronization. When designing circuits with this IC, it is important to consider the supply voltage, input signals, output load, and propagation delay to ensure proper operation and achieve the desired results.
