Nexperia USA Inc. 74HCT08D/AUJ

Part No.:: 74HCT08D/AUJ

Manufacturer:: Nexperia USA Inc.

Package:: 14-SO

Datasheet:: 74HCT08D/AUJ.pdf

Description:: IC GATE AND 4CH 2-INP 14SO

In Stock:: 2112

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HCT08D/AUJ Specifications

Packaging:
Tape & Reel (TR)
Series:
74HCT
ProductStatus:
Active
LogicType:
AND Gate
NumberofCircuits:
4
NumberofInputs:
2
Features:
-
Voltage-Supply:
4.5V ~ 5.5V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
4mA, 5.2mA
LogicLevel-Low:
0.8V
LogicLevel-High:
2V
MaxPropagationDelay@VMaxCL:
24ns @ 4.5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HCT08D/AUJ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HCT08D/AUJ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HCT08D/AUJ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HCT08D/AUJ information

Views：

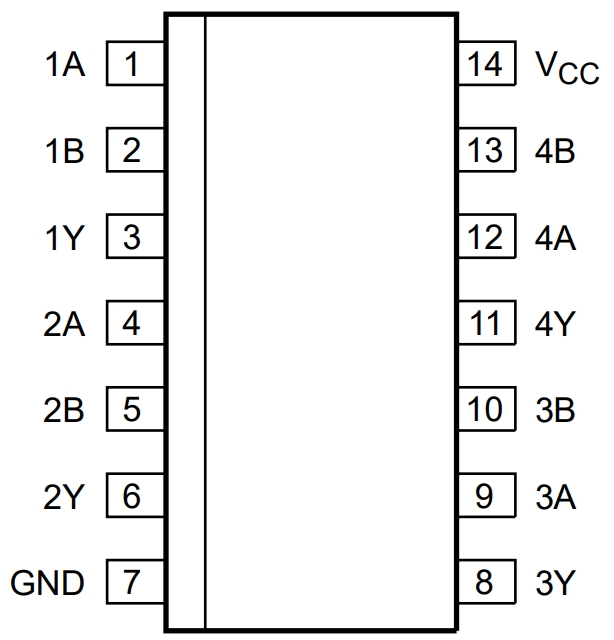

74HCT08D/AUJ Typical application Circuitry

74HCT08D AUJ

The 74HCT08D/AUJ is a quad 2-input AND gate chip, which belongs to the 74HCT family. It operates with a high-speed performance and a typical propagation delay of 8 ns. The chip is designed to function within a 2 V to 6 V range of supply voltage.

Applications of 74HCT08D/AUJ:

It is often employed in digital applications, such as data processing units, control systems, and communication devices.

Parameter Characteristics of 74HCT08D/AUJ:

- Supply Voltage Range: 2 V to 6 V

- Propagation Delay: Approximately 8 ns

- Low Power Consumption

- Output Drive Capability: 4 mA at 5 V

- High Noise Immunity

Example of Application Circuit:

In an example application circuit, we will use 74HCT08D/AUJ to control an LED light. Here is a stepwise guide to connect the IC for this application:

Step 1: Voltage Supply

- Pin 14 (VCC) needs to be connected to a 5 V power supply.

- It is necessary to connect Pin 7 (GND) to the ground.

Step 2: Input Connections

- Connect a switch to pin 1 (A1), which serves as the first input.

- Another switch needs to be connected to pin 2 (B1), serving as the second input.

Step 3: Output Connection

- Pin 3 (Y1) must be connected to a 220-ohm resistor.

- The opposing end of the resistor should be connected to the anode of the LED.

- Lastly, attach the LED's cathode to the ground.

With this circuit, the LED will light up when both switches are closed, providing a HIGH signal to both inputs of the first AND gate. The LED is turned on as a result of a HIGH output at pin 3.

Considerations for Circuit Design:

When designing a circuit with 74HCT08D/AUJ, several factors should be taken into account:

1. Voltage Levels: Ensure the supply voltage is within the range of 2 V to 6 V.

2. Input and Output Currents: Be mindful that the output current does not exceed the IC's maximum drive capability of 4 mA at 5 V.

3. Protection: To reduce current and guard against any damage to the LED, a resistor should be put in series with the LED.

4. Noise Immunity: Despite the high noise immunity of 74HCT08D/AUJ, it is recommended to place the IC away from high-frequency devices to minimize the risk of interference.

In summary, 74HCT08D/AUJ is a versatile IC with applications in various digital circuits. Proper consideration of voltage levels, input and output currents, protection measures, and noise immunity will lead to a successful and efficient circuit design.
